Rechargeable Li-Ion 12v 60ah 80ah Lithium Iron Phosphate Battery Pack with BMS

FOB Reference Price: $ 100
Wholesale: ≥1 Piece(s)
Supply Ability: 100,000 Piece(s) per Month
Shipping: Ocean/land/air
Payment Terms: L/C, T/T, Western Union, paypal
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Packaging size:525*340*300

Quick Details

  • Nominal Capacity: 60Ah
  • Nominal Voltage: 12V
  • Type: Li-Ion
  • Brand Name: JSDSOLAR
  • Model Number: JSD-LBP
  • Flexibility: Portable
  • Accessories: Other
  • Type: li-ion battery pack
  • Color: sliver
  • Max. charge current: 15a
  • Capacity: 10ah~80ah
  • Output voltage: 12v
  • Output current: 30mA-2700mA
  • Protection rate: IP68
  • Dimension: 245*154*117mm

Specifications

Rechargeable li-ion 12v 60ah 80ah  lithium iron phosphate battery pack with BMS

Introduction:
JSD-LBP series is especially designed for solar LED street lights, installed on the pole; it is integrated with LiFePO4 battery and solar charge controller all in one, with time and dimming function. It is the latest and exclusive solar storage battery pack, in order to deliver more power, high cycling and fast recharge; to make the solar lights longer working life-span, easier installation and intelligent 365 days turning on/off.

Features:
Design of lifepo4 battery and solar charge controller integrated, which is scientific and reliable
High efficient intelligent battery power management system
Solar charge controller is special designed for lifepo4 battery, working together perfectly.
High efficient intelligent solar charge controller integrated constant current LED driver, with 91%-96% output efficiency
Solar charge controller with dusk to dawn, time and dimming function
with remote control to program parameters and lighting control option easily
Used high&low temperature material and waterproofing process to prolong battery working lifespan and work in -20~60
All-in-one design with mounting brackets, easy installation to save labor cost and material cost
Suitable for installing on the pole or under solar panel
Suitable for 10Ah-80Ah lifepo4 battery pack
Made of aluminum housing to be waterproof IP68

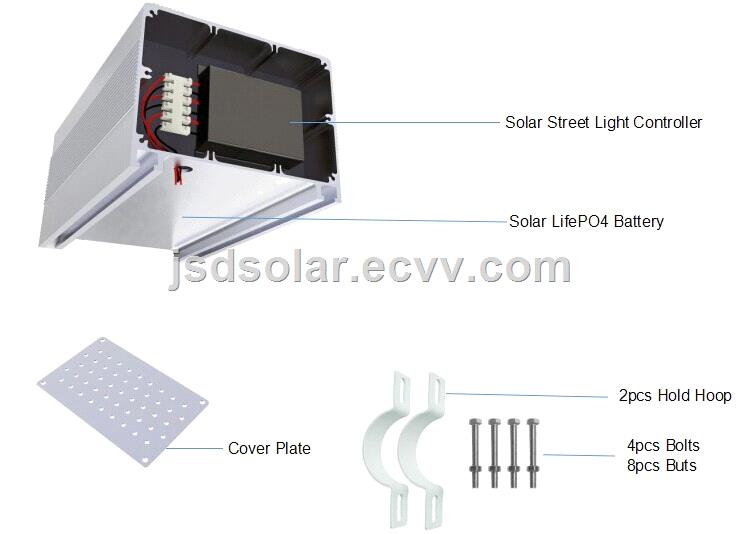

Structure:
Solar Lifepo4 battery pack is made of rechargeable lithium iron phosphate (LifePO4) battery, solar street light controller and waterproof aluminum case all in one, also with mounting brackets, conveniently for users to install on the pole or under solar panel.
lithium iron phosphate battery 12 volt lifepo4 liion battery pack 12v 20ah 30ah


Working Principle:
Light on + five periods time + dimming
A. 1st to 5th period: 0-720 minutes and 0-2700mA current
B. Morning mode: 0-720 minutes and 0-720mA current
lithium iron phosphate battery 12 volt lifepo4 liion battery pack 12v 20ah 30ah

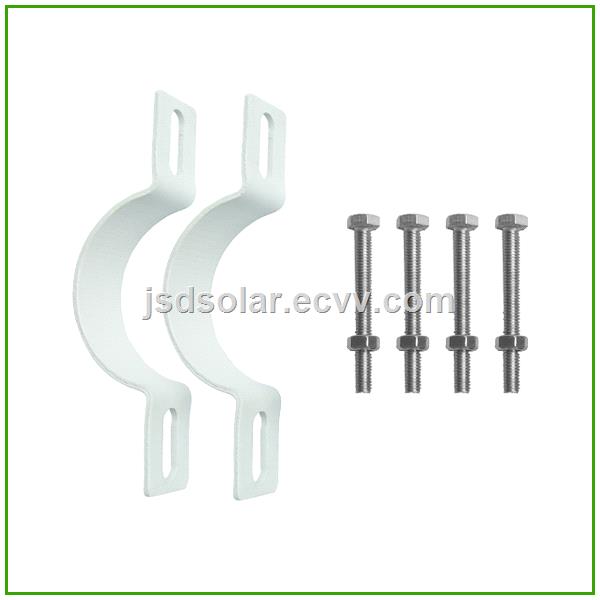

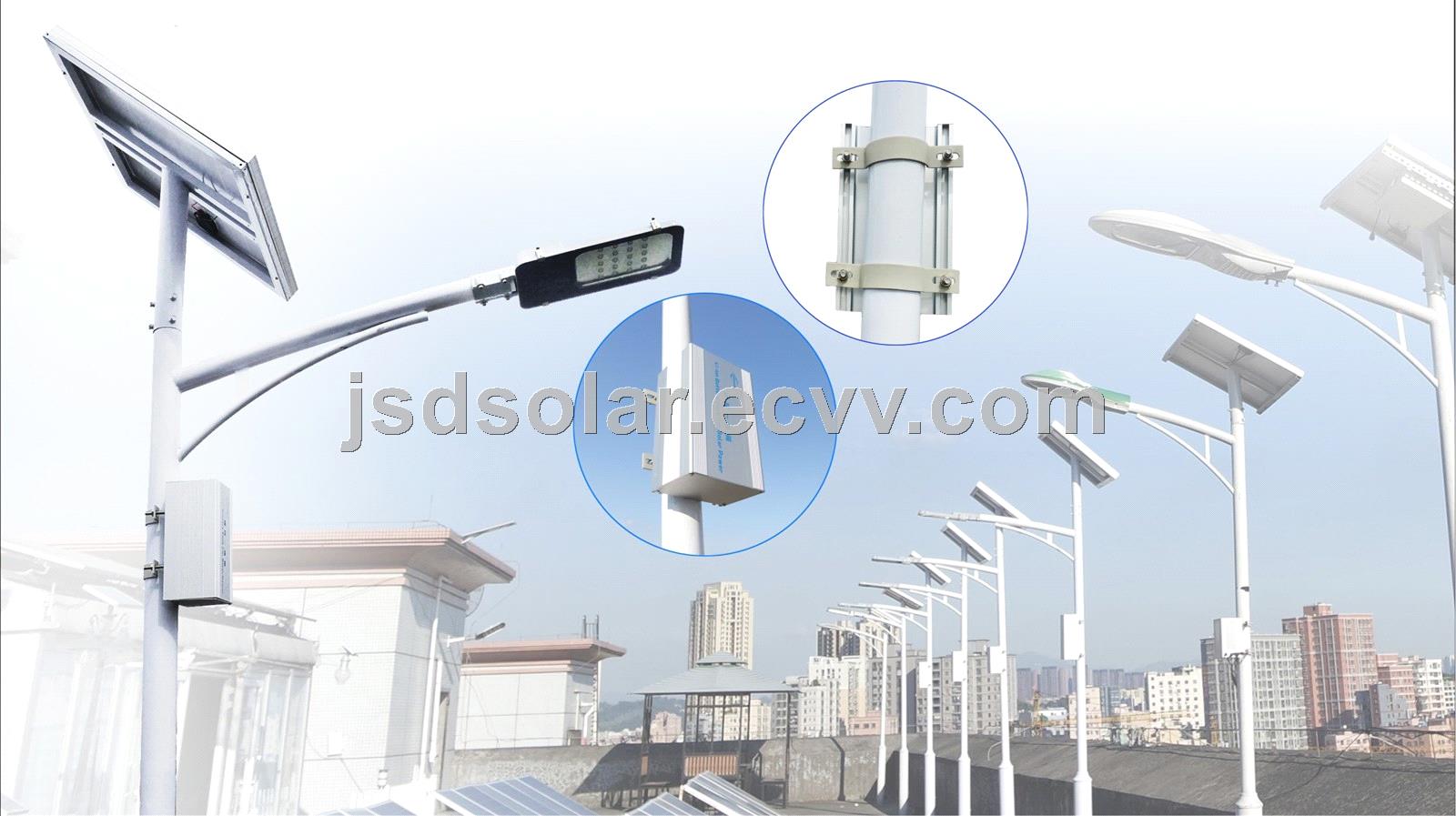

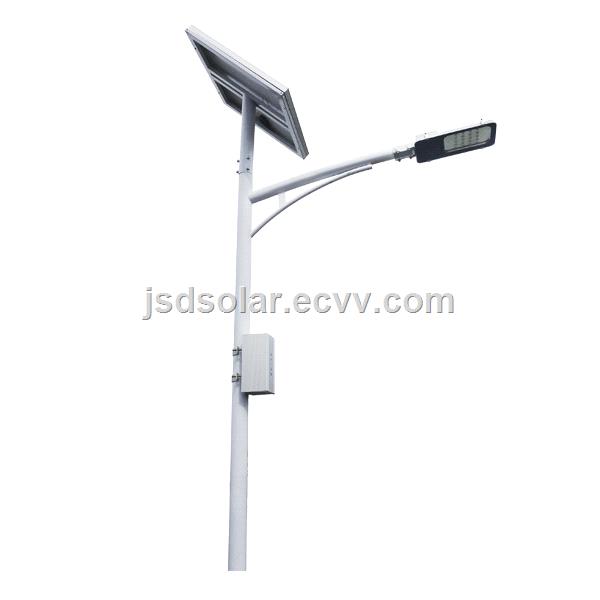

Installation:
Install one the pole
lithium iron phosphate battery 12 volt lifepo4 liion battery pack 12v 20ah 30ah
Intalling Steps:
lithium iron phosphate battery 12 volt lifepo4 liion battery pack 12v 20ah 30ah
lithium iron phosphate battery 12 volt lifepo4 liion battery pack 12v 20ah 30ah
