Roho Communication Technology Co., Ltd.
China Manufacturer with main products: RF Coaxial Connector, RF Cable Assembly, SMA Connector, IPEX Connector, RF Coaxial Antenna |

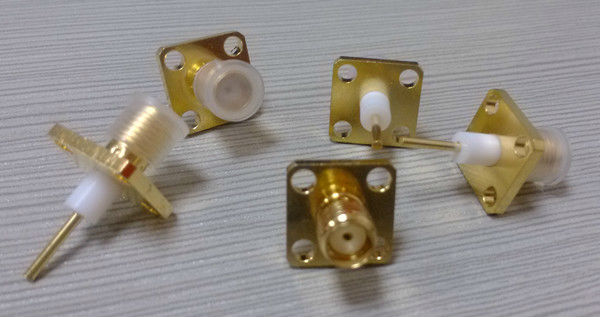

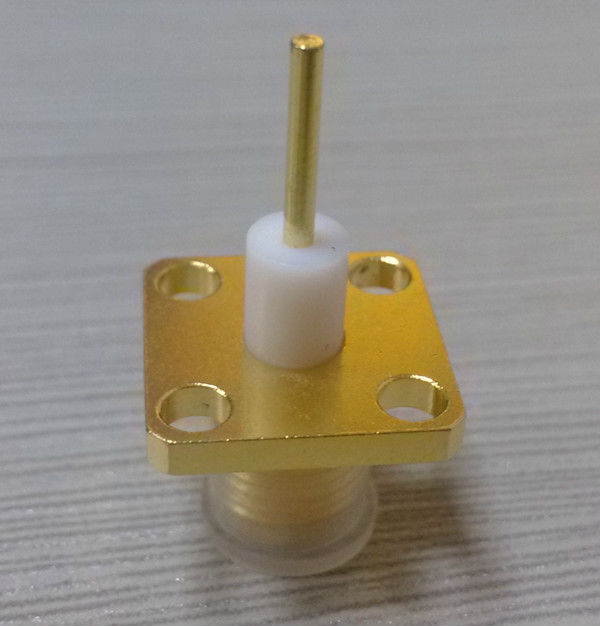

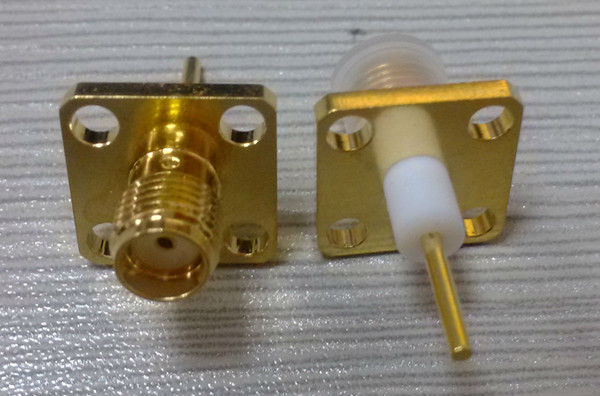

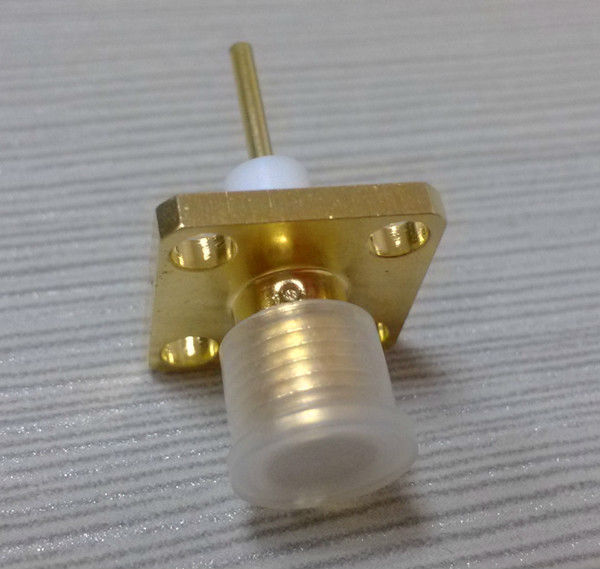

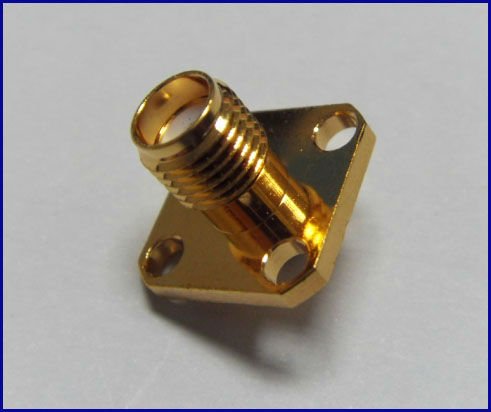

Flange SMA RF Coaxial Connector for PCB Cable
| Supply Ability: | 100,000 Piece(s) per Month |
|---|---|
| Shipping: | As your required |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton |
Quick Details
- Gender: Male&Female
- Type: SMA
- Brand Name: ROHO
- Color: Brass,Ni,Gold
- Model Number: SMA Coaxial Connectors
- Impedance: 50 ohm
- Frequency range (for connector interface): DC-18GHz
Specifications
| ELECTRICAL DATA | |
| Impedance | 50 |
| Frequency range (for connector interface) | DC18GHz |
| Dielectric withstanding voltage (at sea level) | 750-1500V,50Hz (depending on cable) |
| Working voltage (at sea level) | 250-500V,50Hz (sea level) / 65-125V,50Hz (Height 21000M) |
| Insulation resistance | 5000 m |
| Contact resistance | Inner conductor: 3m |
| Outer conductor: 2.5m | |
| RF leakage(2-3GHZ) | Flexible: 60dB |
| Semi-rigid cable: 100dB | |
| MECHANICAL DATA | |
| Coupling nut torque | 0.8Nm--1.1Nm / 7.1 in.Lbs--9.7 in.Lbs |
| Coupling nut retention force | 270N / 60.7 lbs |
| Contact captivation axial | 27N / 6.1 lbs |
| Durability (matings) | 500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65C to +165C |
| MATERIAL DATA | |
| Bodies, outer contacts | Beryllium copper--Au plating |
| Stainless steel--Passivation | |
| Brass--Au plated / ternary alloy plating | |
| Phosphor bronze --Au plating | |
| Pin contacts | Brass/Beryllium copper--Au plating |
| Socket contacts | Beryllium copper / Phosphor bronze--Au plating |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
