Carton Stacking System Box Palletizing Machine Robotic Palletizer

FOB Price: 35000.00 - 45000.00 USD/Set
Supply Ability: 25 Set(s) per Quarter
Shipping: By sea
Payment Terms: L/C, T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shenzhen in China
Packaging Details: Packed with plywood.

Quick Details

  • Type: Other
  • Brand Name: Calmus
  • Packaging Material: Paper
  • Packaging Type: Cartons
  • Application: Beverage,Food,Water
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE
  • Dimension(L*W*H): 2960x6017x600mm
  • Weight: 100kg
  • Model Number: BPL20
  • Power: 6KW
  • Voltage: Customized
  • Driven Type: Pneumatic
  • Automatic Grade: Automatic
  • Material: Steel
  • Automatic Grade: Fully-automatic
  • Usage: Stacking Cartons on Pallets
  • Max Palletizing Capacity: 7 cycles/min


Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry. Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry. We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other supporting equipment.

Please directly write your inquiry to us if it is very important, otherwise we are unable to reply you due to regulations of this platform.

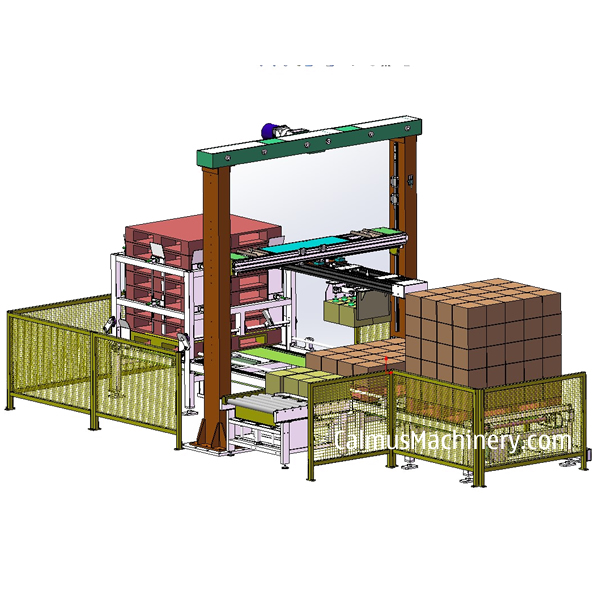

Fully-automatic Low-level Carton Palletizer | Stacking System

this is a low-level palletizer and used to stack sealed cartons in order on a pallet. It works automatically and cartons can be stacked on a pallet by multiple layers. It employs a touch screen PLC controller and is easy to operate.

1. Carton sorting feeder
Sort cartons according to a set pattern and then convey them.

2. Carton palletizer
Catch sorted carton(s) and then rise, move and put it/them on a pallet.

3. Pallet storage and feeder
5-10 empty pallets can be stacked in the storage section. Pallets are fed to the palletizer according to the PLC setting.

4. Loaded pallet deliver
When a pallet is loaded fully, it will be delivered to an designated location.
Type: low-level, coordinates
Max palletizing capacity: 7 cycles/min (1-4 cartons per cycle which depends on the carton size and weight)
Power supply: 3 phases, customized voltage, 6KW
Air consumption: 500NL/MIN
Air source pressure: 5-6 kgf/cm2
Weight: 2,000 kg

Contact us today for a competitive price.
