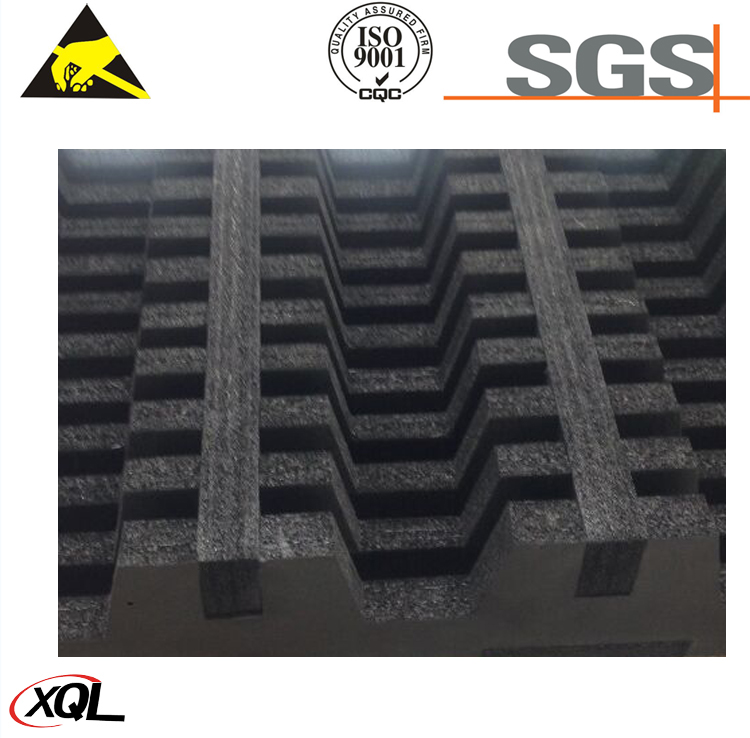

XPE Foam Closed Cell Cross Linked Polyethylene

IXPE Foam

1. Wich conduction path / network inside. Excellent antistatic performance;

2. It promotes the rapid release of electrostatic without using the environmental humidity. Anti-static performance is not

Affected by the environmental humidity;
3. Buffer good performance: independent and fine pore closure;

4. High temperature resistance: IXPE maximum temperature 120C
5. Chemical resistance: resistant to organic solvents, acids, bases, etc.;
6. No chemical corrosion: It has no corrosion to the components and packaging;
7. Heat insulation, sound insulation, water absorption, moisture;
8. Good processing performance, easy molding.

Material Specification of Conductive PE Foam

1.Basic Process
    the said product is a close-cell, conductive foam. It is produced by compounding the PE resin with conductive fillers &

Blowing agents to extrude certain sheets,then cross-linking and foaming. The basic process can be summarized to the following:
     1.1 Pellitizing master batch by compounding PE resin with carbon black and AC foaming agents;
     1.2 Extrude the said batch to make certain sheets with different thickness & width;
     1.3 Crosslink the said sheets under electric beam;
     1.4 Make the crosslinked sheets foam in foaming furnac

2.Norminal size
    2.1 Normal size:
           10m1.2m8mm 10m1.2m5mm
    2.2 Special size:
    2.2.1 Special thickness such as 25mm, 20mm,15mm and 10mm should be ordered
    2.2.2 Small length, width and profile product are to be ordered.

3. Characteristics

    3.1 Excellent ESD effect because its interior conductive lattice
    3.2 Able to leaking static electricity rapidly and free of environmental humidity
    3.3 Long time and even Permanent ESD duration(at least 3 years).

Why choose us?

1.We are specialized in producing ESD Foam packaging since 2009, so we are more professional.
2. We can provide a reasonal price for our products because we are a factory-direct.
3. No MOQ for our products. so do not worry about if your quantity is not high enough.
4. We have advanced production, processing equipment, with strong production capacity, so the delivery date
Can be guaranteed.
5.We had won the trust and support from our new and old customers with excellent service, reasonable prices.
