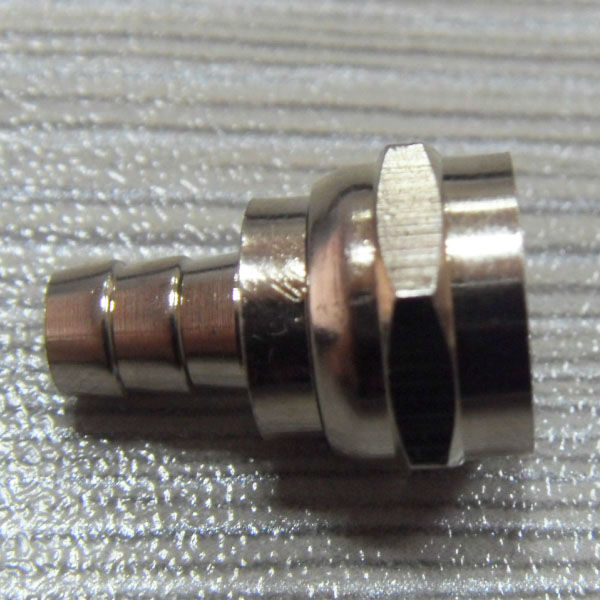

Straight F RF Coaxial Connector for Cable
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Shipping: | As your required |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | 1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton |
Quick Details
- Gender: Male&Female
- Brand Name: ROHO
- Color: Brass,Gold ,Ni.
- Straight F RF Coaxial Connector With Cable: 75 ohm
- Frequency Range: DC1GHZ
Specifications
| Mechanical Characteristics | |
| Temperature Range | -40C to +60C |
| Vibration | 100m/s2(10-500Hz) |
| Impedance | 75 |
| Frequency Range | DC 1GHz |
| Working Voltage | 170V max |
| Withstand Voltage | 500V rms |
| Contact Resistance | Inner conductor: 10m |
| Outer conductor: 5m | |
| Insulation Resistance | 1000m |
| VSWR | Straight 1.2 |
| Right angle 1.3 | |
| Durability | 500 cycles |
| Material | |
| Shell | Brass--Ni plated |
| Pin contactor | Brass--Au / Ag plated |
| Elastic contact | Beryllium / Tin brass--Au / Ag plated |
| Crimping suite | Copper alloy--Ni / Au plated |
| O-ring sealing | Silastic |
