Shandong Xingyu Mechanical Technology Co.,Ltd,
China Manufacturer with main products: Large Span GLY Concrete Hollow Core Slab Machine, Light-Weight Wall Panel Machine, Purline Machine, Lintel Machine, Column Machine, Hollow... |
HQJ Series Lightweight Wall Panel Machine
| Supply Ability: | 55 Set(s) per Month |
|---|---|
| Shipping: | 20 days Qingdao port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | 1.We use fumigation wooden box packaging products 2.Wire cables are used for fastening the machine on the trailer or inside the container 3.Machine covered with plastic film |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001
- Brand Name: Xingyu
- Automatic Grade: Automatic
- Condition: New
- Warranty: 1 year
- Features: easy to operate
- Weight: 1450kg
- Dimension(L*W*H): 2300*820*820mm
- Power(W): 6.6kw
- Voltage: 380V
- Model Number: HQJ150-600
- Production Capacity: 1.5-1.8m/min
- Application: building materials machinery
- Slab thickness: 150mm
- Slab width: 600mm
- No. of holes: 4
- Diameter of holes: 102mm
- Electric motor power: 5.5kw
- Vibrator motor power: 1.1kw
- Total power: 6.6kw
- Raw materials: Fly ash,slag,ceramsite,cinders and etc
- Moulding speed: 1.5-1.8m/min
- Annual output: 150000m2
Specifications
1.Production description

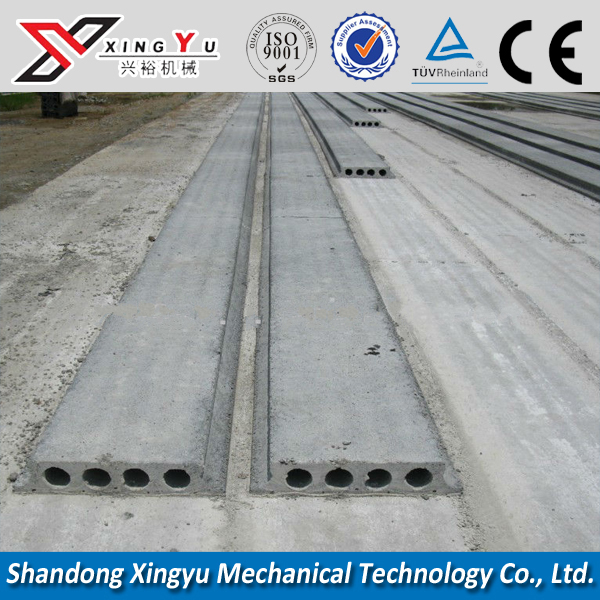

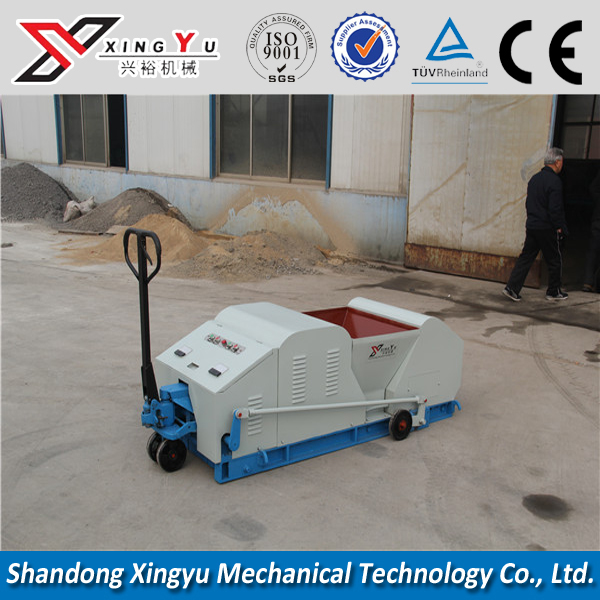

HQJ series lightweight wall panel machine
the HQJ series lightweight wall panel machine can put 2 layers steel tendon, the diameter of the steel tendon can reach 5mm.
the producing table can use steel plate of concrete plate, convenient construction.
both sides of the wall panels can put reinforcement wires,diameter can reach 6mm.
Work area:orbital or no orbital.
Panel materials:according to the specialty of the local materials,we provide matching method to insure customer produce standard panels(general materials:fly ash,slag,ceramsite,cinders,cinerite,pumice,vermivulite and so on)
Reduce the overall cost of the buldings, increase indoors usable space.
High production efficiency,annual output square meters above 150000m
We can design and manufacture specific model according to customers'Specific requirement
2.Main features/Advantages
1) Extrusion mathod,smooth surface
2) One machine can make one slab,low investment
3) Simple structure,easy operate
4) Long working life with few wearing parts
5) None-loading bearing partition wall board and exterior wall board
6)Sound insulation,heat insulation
3.Packaging & Delivery
2300(L)*820(W)*820(D)mm
1450kg
1.We use fumigation wooden box packaging products
2.Wire cables are used for fastening the machine on the trailer or inside the container.
3.Machine covered with plastic film
4.FAQ
1. When did your company established?
XingYu machine is established in the year 1996.
2. Where is your company situated?
XingYu machine is located in ZiBo city, ShanDong province, China.
You can arrive at Jinan airport by air, we will pick you up at Jinan airport.
3. What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% as deposit and the rest 70% should be paid before delivery.
