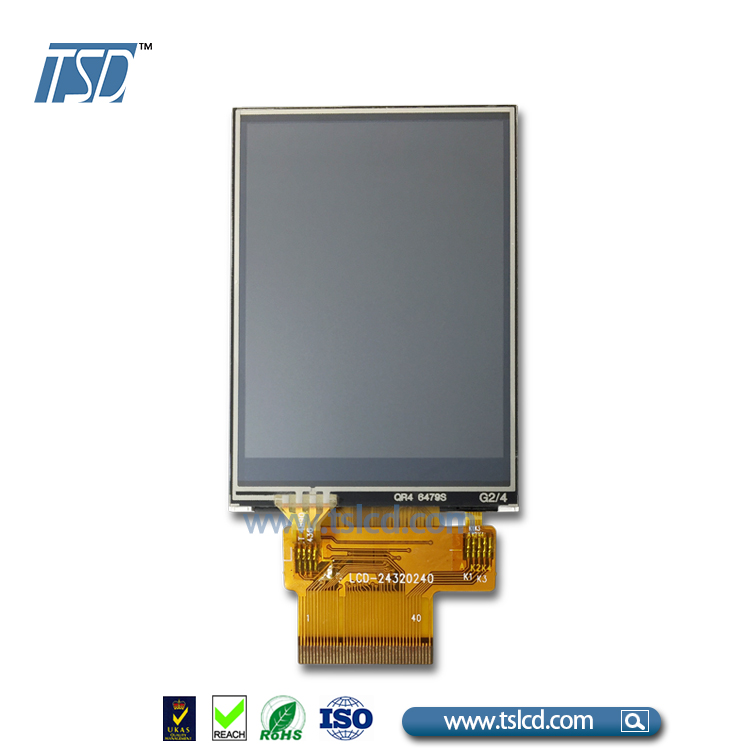

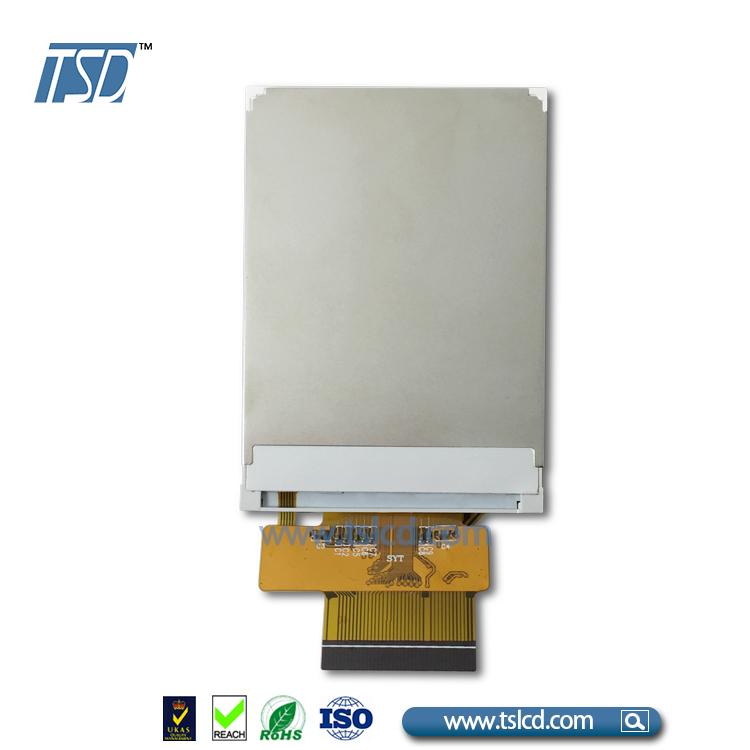

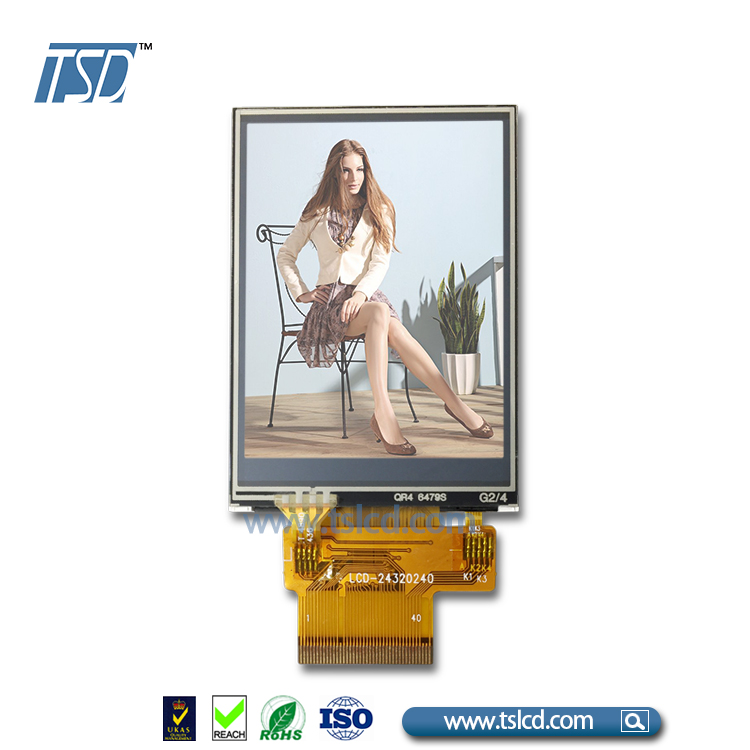

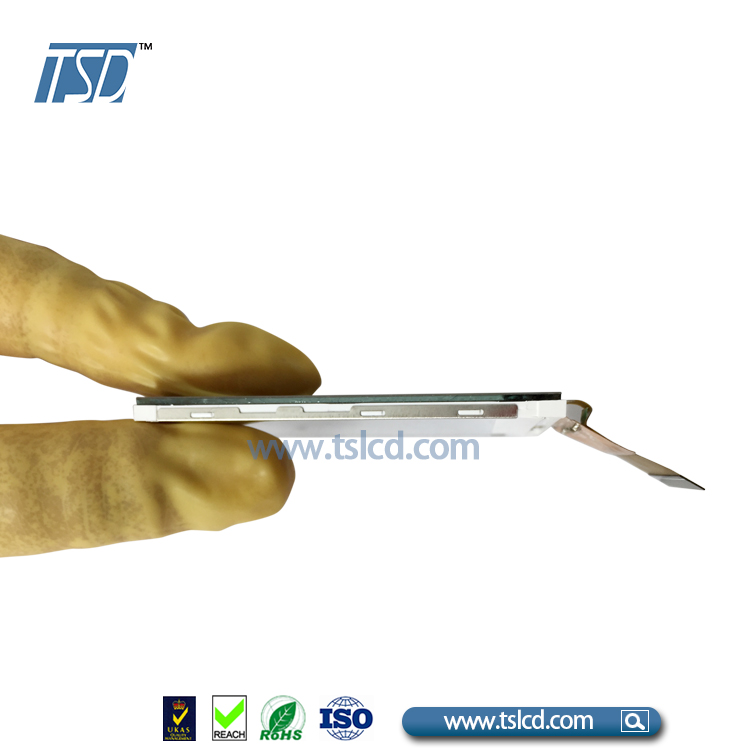

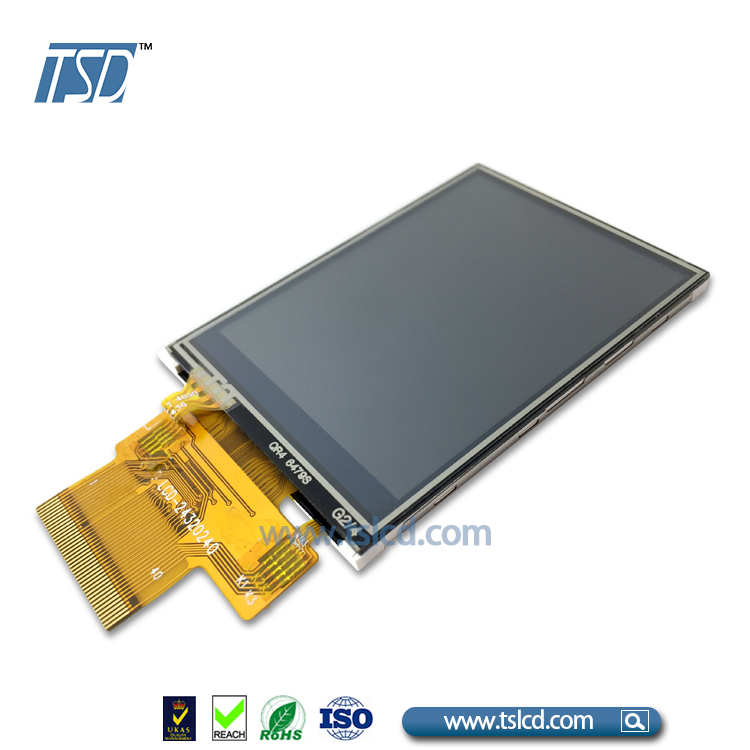

2.4 Inch TFT Display 240x320 QVGA with RTP
| Supply Ability: | 950,000 Piece(s) per Month |
|---|---|
| Shipping: | EXW factory, DHL/UPS/Air freight/Sea Freight,etc |
| Payment Terms: | T/T, Other, paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 39*35*48 cm or 39*35*37cm |
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: MCU
- Resolution: 240x320
- application: industrial /medical/intelligent
- Model Number: TST24QV13AR
- Size: 2.4 inch tft lcd
- LCD type: TFT Positive Transmissive
- Resolution: 240x320
- Backlight: 4LEDs
- Driver IC: ILI9341
- Outline dimension: 42.72W) x 60.26(H) x 3.5(D)
- AA: 36.72 (W) x 48.96 (H)
- Viewing angle: 12 O'clock
- Interface: MCU 8/16bits
- Touch panel: Resistive touch available
Specifications
Hot sale 2.4 inch qvga 240x320 TFT LCD ili9341
| Item | 2.4 inch LCD module |
| Model name | TST24QV13AR |
| Display Mode | Normally White,Transmissive |
| Resolution | 240*320 |
| Technology Type | A-Si TFT active matrix |
| Pixel Pitch (mm) | 0.051 (W) x 0.1 53 (H) |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Outline Dimension | 42.72W) x 60.26(H) x 3.5(D) |
| Active Area(mm) | 36.72 (W) x 48.96 (H) |
| Interface | MCU 8/16-bit |
| Viewing Direction | 12 O'clock |
| Surface treatment: | Anti-Glare |
| Touch Panel | Optional |
| LED Numbers | 24 pcs |
| Color Depth | 65K/262K |
| Backlight Type | 4 LEDs |
| Driver IC | ILI9341V |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~+80C |
Character Module Series:
1.Various LCD Type Available
2.Various Backlight Color Available
3.Various 232 or USB interface Available
4.Compatible Various Control IC:S6A0069.SPLC780D,ST7066U
5.Supply Various Characters: English, Japan, European, Russian etc.
6.Our standard character module:8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4.
7.Our standard graphic module:128x64 COB/COG,160X128,240x128,256x128,etc.
Application:

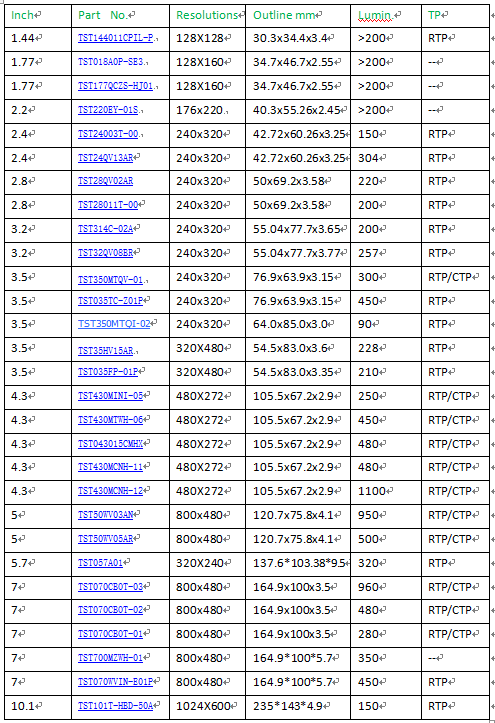

TFT LCD Module series:
1. Our standard TFT LCD module size:
1.44", 1.77", 2", 2.4", 2.8", 3", 3.2", 3.5",
4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 10.1".
2. New products: 3.5", 4.3", 5.0", and 7" TFT LCD with CTP and MCU interface.
3. 2.2", 3.5" transflective/ sun readable TFT LCD.
4. Our Specials Technology: can make AR( Anti-reflective), AF(Anti-fingerprint),AG(Anti-Glare)and also use EWV(extremely wide view) polarizer.
5. Specails items: 4.3'' 5.0'' 7.0'' developed 1000nits brightness.
1.We are professional LCD module manufacture in China with precise and advanced equipments.
2.High quality Control with CE,ROHS and so on approved.
3.More than 10 years of industry experience and involved main markets all over the world
4.Dedicated and professional sales team will offer you 24 hours online and immediate service
5.OEM and ODM support,12 months warranty for all of our products
Delivery:
Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail.
.
