Shenzhen Amviewing Electronics Co., Ltd.
China Manufacturer with main products: IP Camera, USB Camera, AHD CCTV Camera, Mini CCTV Camera, Security CCTV Kits |
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Guangdong in China |
Packaging Details: | Color Box,Neutral Packing,Export Carton |
Quick Details
- Special Features: AHD/TVI/CVI/CVBS Analog
- Technology: Pinhole
- Sensor: CMOS
- Type: Analog Camera
- Brand Name: MiyeaEYE
- Style: Mini Camera
- Model Number: ACT200-AST1-P4
- Pixel: 1080p Full HD
- Lens: 3.7mm pinhole lens
- Camera type:: Analog/AHD/CVI/TVI Camera
- Image Sensor:: 1/3 inch CMOS Sensor
Specifications

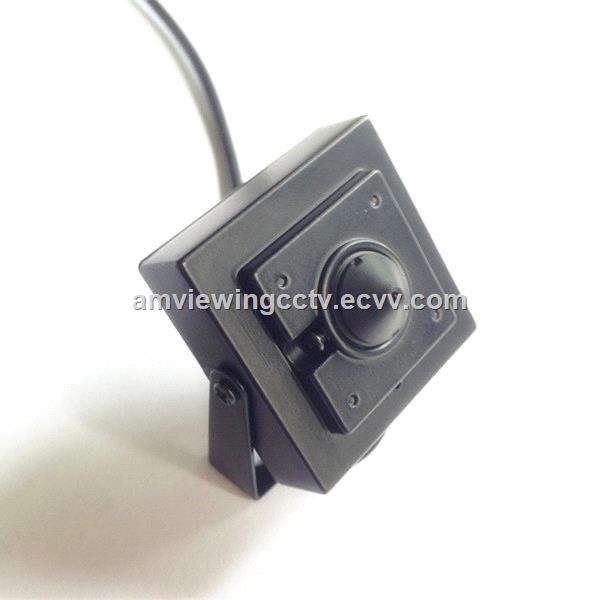

1080P TVI/AHD/CVBS/CVI 4 in 1 pinhole camera *AHD analog camera *DWDR,DNR,Motion dection,Mask *Fixed Megapixel lens *Indoor Specification Model ACT200-AST1-P4 Resolution 2.0Mega
Pixel 1080p Main
Chip High
Performance Image
Sensor 1/3"
CMOS of sony 2441+IMX323 IR-cut Effective
Pixel PAL:
1920*1080@25fps Signal
System PAL/NTSC Video
Standard Follow
AHD/CVI/TVI and CVBS Standard Video
Output 1CH

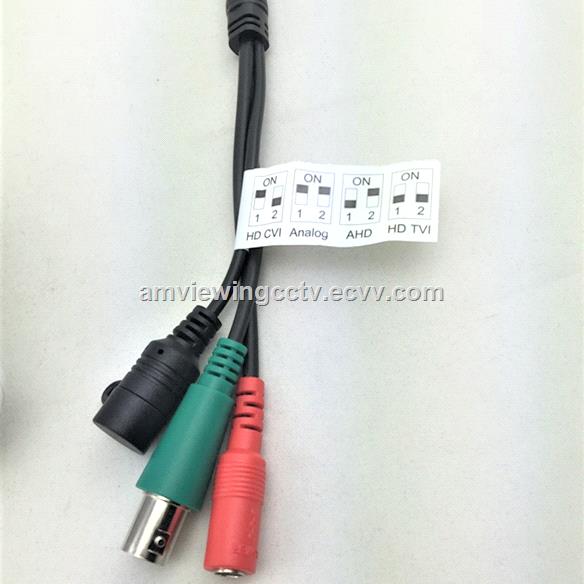

AHD/CVI/TVI/CVBS Standard Signal Output(Switchable) Max
Transmission Distance Common
75-3lines can be up to 500m Lens
Size 3.7mm
Megapixel lens Minimum
Illumination 0LUX/F1.2(LED
on) IR-CUT Auto
Switch LED w/o IR
Distance 10m Shutter
Speed 4/25s-1/45,000s BLC off/Low/Medium/High/Highest White
Balance Auto
White Balance HLC Support Operation
Temperature -10C~55C Power
Supply DC12V Housing Metal IP Rate Indoor
Use
*1/3" HDIS CMOS (1080P/960P/720P)
High resolution picture;
*720P/960P/1080P High definition video
*OSD menu(optional)
NTSC:
1920*1080@30fps
