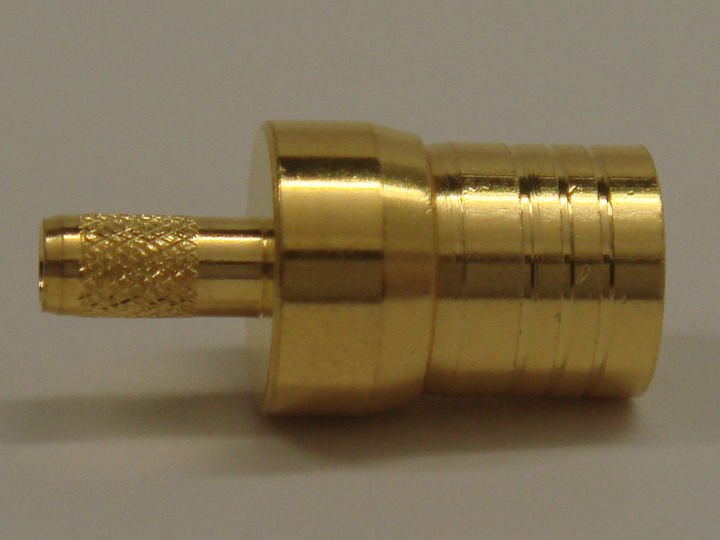

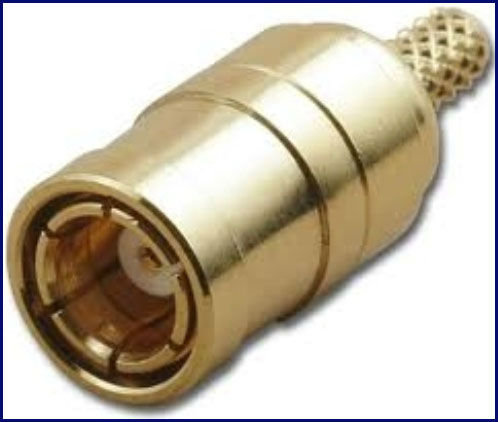

Straight SMB RF Coaxial Connector with Cable
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Shipping: | As your required |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | 1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton |
Quick Details
- Gender: Male&Female
- Type: SMB
- Brand Name: ROHO
- Color: Brass,Gold ,Ni.
- Straight F RF Coaxial Connector With Cable: 50 ohm
- Frequency Range: DC-4GHZ
Specifications
| ELECTRICAL DATA | |
| Impedance | 50 |
| Frequency Range | 0-4GHz |
| Working Voltage | 250-335V,50Hz(sea Level) |
| Withstand Voltage | 750,50Hz |
| Insulation Resistance | 1000m |
| Contact Resistance | Inner Conductor: 5m |
| Outer Conductor: 2.5m | |
| RF Leakage | 55dB |
| MECHANICAL DATA | |
| Engagement force | 8N--63N / 1.8 Lbs--14.2lbs |
| Disengagement force | 8N--63N / 1.8 Lbs--14.2lbs |
| Contact Captivation | 18N / 4.0 lbs |
| Durability (matings) | 500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65C to +165C |
| MATERIAL DATA | |
| Bodies | Brass--Au Plating / Ternary alloy Plating |
| Pin Contacts | Brass/Beryllium Copper--Au Plating |
| Socket Contacts | Beryllium Copper / Phosphor Bronze--Au Plating |
| Springs and Washers | Copper / Beryllium Alloy--Au Plating |
| Crimp Ferrules | Brass--Au Plating |
| Insulator | PTFE |
