45SSD-01 Stainless Steel Full Extension Slides

Specifications

45SSD-01

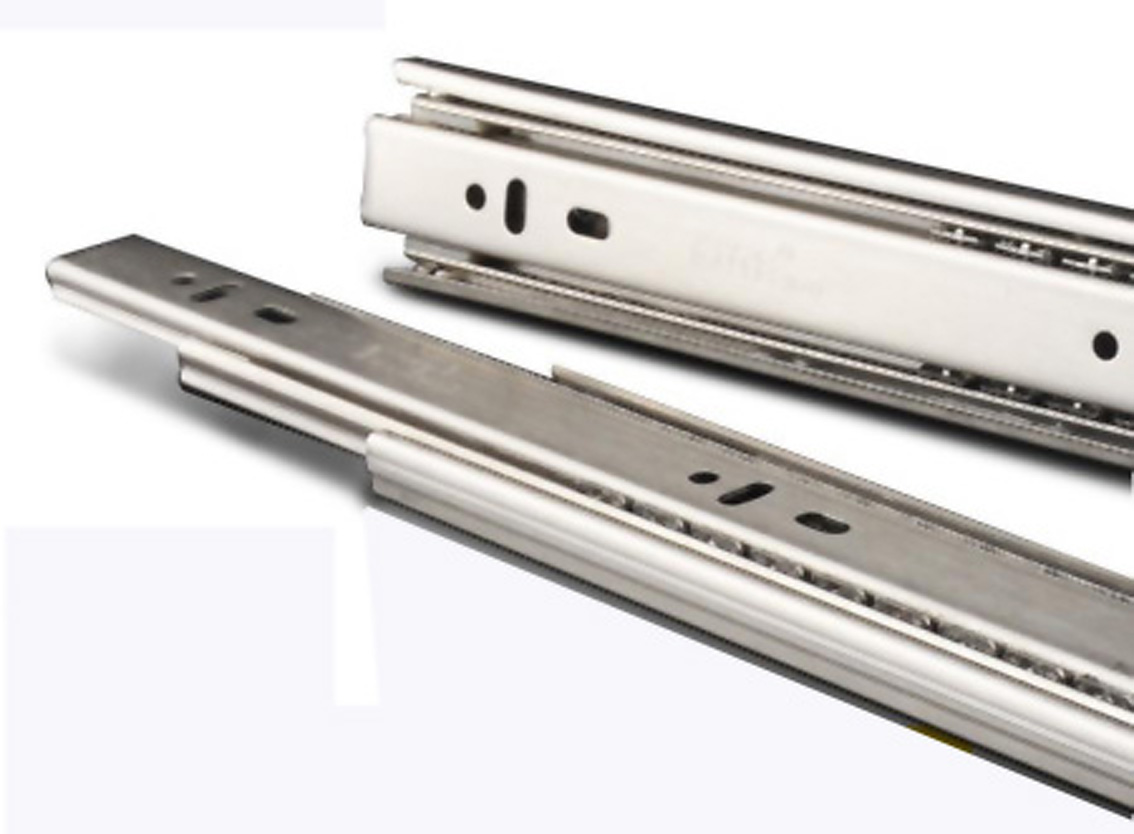

45SSD-01 stainless steel full extension Slides

Product Description

Applications: fridge dawerslides, fridge storage cabinets, kitchen cabinets and Showing cabinets, etc.
Features:Long slide travel,the stopper can prevent the drawer from Self-moving,stainless steel,anti-rust.
Rated loading:s 100lbs(45kgs) / per pair(18" long)
Material: 201# 304# stainless steel
Length: 10"-28"(250mm-600mm)
Thickness & rating:1.0x1.0x1.0mm 40kg,1.2x1.2x1.2mm 45kg,1.2x1.2x1.4mm 50kg.
Full Extension Positive stop

Features:

275 lb load rating closed length 12''-80''
Full extension with Precise telescopic motion
Cushioned in and out stops reduce slamming both ways
Runner and ball race form a single durable non-detachable unit
Disconnectable inner member
Smooth action and high side stability
Ball spacers made of noise-absorbing hardened steel balls
Lock in lock out possible, please inquire
Application: off-road 4x4, camper trailer, truck, pick up, ambulance,boat and tool box etc
with its telescopic movement ball bearing sliding action that's rated for drawer capacities of up to 275 pounds,125kg. this 125kg full extension heavy-duty drawer slide for cargo tray has the added feature of heavy duty stops which makes it perfect to endure the abuse of rough filed,industrial or garage applications.



Specifications:
Height 53mm
Load rating: 125kgs / 450mm standard
Metal thickness : 2.0/2.0/2.0mm
Material: Cold rolled steel
Packing: PE bag/carton/pallets(allow for flexible ordering options)
Side mounted and bayonet fixing are available
