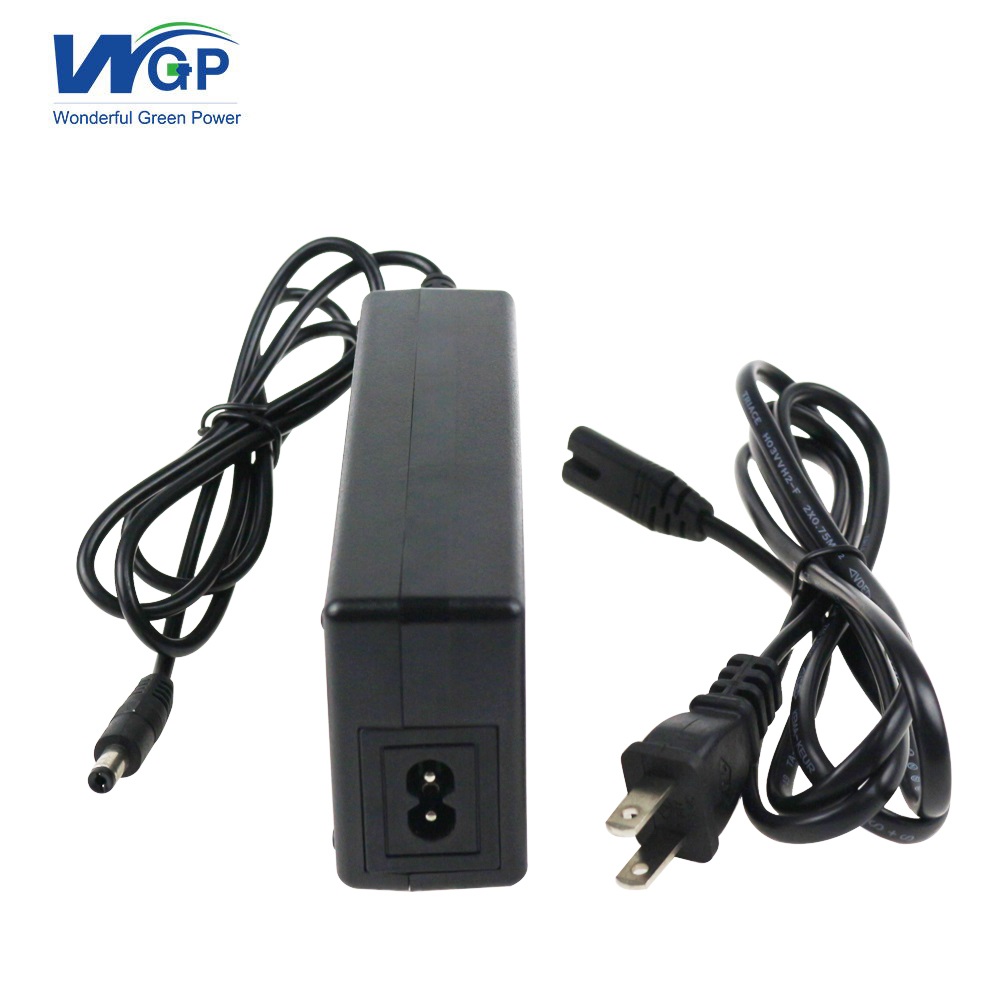

Mains Supply to Poe Mini UPS DC Output 24V 48V UPS Power Supply for Worldwide
| Supply Ability: | 2,000 Piece(s) per Week |
|---|---|
| Shipping: | Bpost international |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | PE bag or carton box |
Quick Details
- Application: Instrumentation
- Type: On-line
- Protection: Overcurrent
- Phase: Single Phase
- Brand Name: WGP
- Output Voltage: 24V
- Weight: 250g
- Model Number: V2405-02
- Model No.: V2405-02
- capacity: 28.86wh/2600mAh
- Battery Type: 18650 Lithium Ion Battery
- Input: AC110V/220V(customized)
- Output: 24V0.5A
- backup time: 2~8hours
- Material: ABS
- Application: ip camera,router,modem,dvr etc
- Product name: 24V ac dc power supply
- Color: black
Specifications
Mains supply to poe mini UPS DC output 24V 48V UPS power supply for worldwide
Brief Introduction
this AC-DC UPS is an kind of uninterruptible standby energy storage power supply which with features of AC input and DC output,it makes your device work as usuall when have no electricity.
Product Features
Features :
1. 100~250V AC input,24V DC output.
2. Automatic shut-down when output current less than 20mA.
3. Power supply for 24V wireless AP or other suitable devices..
4. No swtich button,UPS switch on once output connect with load.
5. Professional circuit and SCM controll protection.
6. Perfect over-charged, over-discharged, over-current and short-circuit protection.
| DC 12V Mini UPS Basic Information | |
| Model | V2405/V48025 |
| Capacity | 22.2wh/2000mAh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | AC110V or 220V |
| OutPut Voltage | 24V/48V |
| OutPut Current | 50mA/25mA |
| Discharging transfer efficiency | 85% |
| Protection | over charge,over discharge,over current,short circuit |
| Weight | approx.250g |
| Size | 1406035mm |
| Warranty | 1 year |
LED Indication
in cahrging or not full charged |
LED in red light |
Fully charged |
Red light off |
Switch once with load |
Green light on |
Cut off load or device work current |
UPS shut down automatically |
Application
Notice:the DC size can be customized.
Packaging & Shipping
| Packing Method | |
| Well protection neutral box packing | |
| Packing Include | |
| UPS Battery | 1PC |
| AC Cable | 1PC |
| User Manual | 1PC |
| Delivery Time | |
| Sample | 2-3 working days |
| Bulk Order | 15-20 working days |
| Shipping Method | |
| DHL,UPS,FedEX,EMS,HongKong Post,Swiss Post etc.... | |
Company Information
FAQ
Q:What's the type of UPS?
A:It's a mini on-line UPS.
Q:how is it work?
A:When have electricity,UPS act as a bridge, city power provide electric to device,at the same time,UPS is being charging.When no electricity,then UPS back up the device.
Q:how to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What's the backup time?how can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable UPS to you:
1.What's the device you plan to use?
2.What's the working voltage and current?
3.What's your expected backup time?
Q:how can I maintain the device lifetime?
A:When stored, the UPS will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
as a guide, the UPS should not be stored for longer than the periods shown below without being recharged:
6 months at 20C
3 months at 30C
2 months at 35C
If the UPS was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other models?
A:Yes,we have variety models with defferent capacities,please contact with me for more details.
