Home >Products Catalog > Smart Li-ion Battery Pack > Rechargeable 4S 2600mAh Lithium Ion Battery, 18650 14.8V Li Ion Battery Pack for Heating Jacket

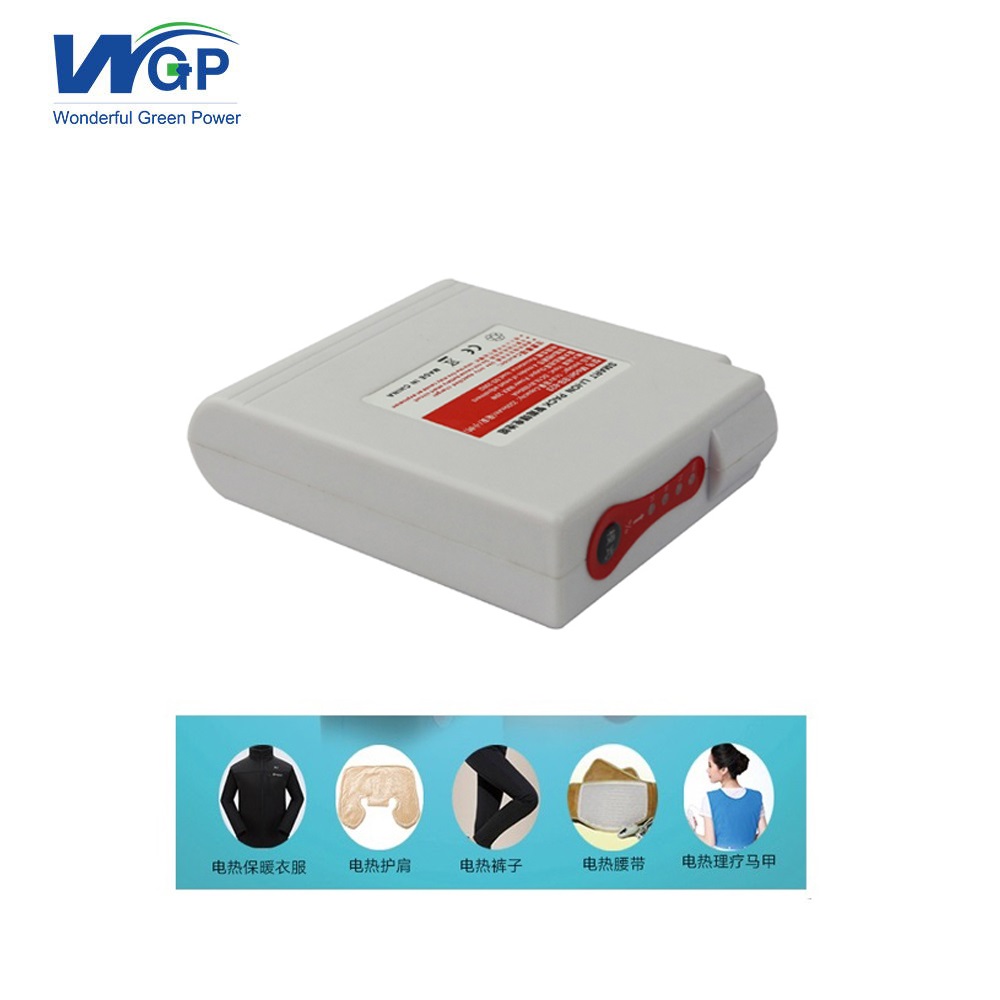

Rechargeable 4S 2600mAh Lithium Ion Battery, 18650 14.8V Li Ion Battery Pack for Heating Jacket

Supply Ability:	2,000 Piece(s) per Week
Shipping:	Bpost international
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	white box,outside with carton box

Quick Details

Application: heating jacket,glove,vest,trouser
Nominal Capacity: 2600mAh
Voltage: 14.8V
Type: Li-Ion
Brand Name: WGP
Weight: 238g
Size: 91*74*24mm
Model Number: RTC1408A-03
Type: Heated clothes battery pack
Voltage: 14.8V
Input: 16.8V/1A charger
Power: 15W MAX
Output connector: 3.5*1.35mm
Color: Black ,White
Li-ion batteryCycle Life: Over 500 deep cycle
Charge time: 5-8 H
Working time: 3-12H
Working temperature: 0~60 celsius

Specifications

Rechargeable 4S 2600mAh lithium ion battery,18650 14.8V li ion battery pack for heating jacket

Product Description

the RTC1408A can support a power supply which export large current and adjust power output. It's made of 2 bunches lithium battery professional protective circuit and MCU control circuit.

Output with features of over-current protection, no-load auto power-off and can memorise last time power level when power off.the lithium battery has professional over-charged, over-discharged, over-current and short circuit protection. with the double protection of lithium and MCU,the battery has features of long life time and reliable quality.

Specifications

Specification	Name	Heated cloth battery pack
	Capacity	2600mAh
	Voltage	14.8V
	Cell QTY	4 cell 18650 li-ion batteries
	Output connector	3.5*1.35mm
	Input	16.8V/1A charger
	Power	15W MAX
	Charge Temp	0~60C
	Discharge Temp	-20~60C
	RE	Button+5 levels power + data screen
Feature	1. Low discharge rate, no "memory effect"
	2. Short-circuit and over-current Protection
	3. Low recurring operation cost
	4. Environmental Friendly
Note	1. DON'T dispose in fire or heat
	2. DON'T puncture, damage and disassemble
	3. DON'T mix fresh batteries with used batteries
Use for	Heated cloth, neck,trouses, gloves, shoes, shoulder pad, waistband, kneepadetc.Loadtype:Electrical impedance (5-200)

Product Overview

rechargeable 4S 2600mAh lithium ion battery18650 148V li ion battery pack for heating jacket

Operate Guide

1. When you push the button, the LED turns to red. It means the battery output is 100%

2. When you push the button again, the LED turns orange. It means the battery output is 75%

3. Again, push the button, the LED turns green, the output reduced to50%

4. the fourth time pushed the button, the LED changes to green flickering light. the output is 30% left

5.Push the button one more time, the light disappears and the battery will be switched off.

Safety Notice:

1. Please use the right charger to charge this battery;

2. Please don't dismounting the battery;

3. If we don't use this battery for a long time, please make the battery be fully charged and stock proper, and charge it every three month;

4. Don't let the battery closed to fire, don't charge, use or stock battery in high temperature or humid condition.
