Home >Products Catalog > Undermount Soft Closing Concealed Telescopic Channel Drawer Slide

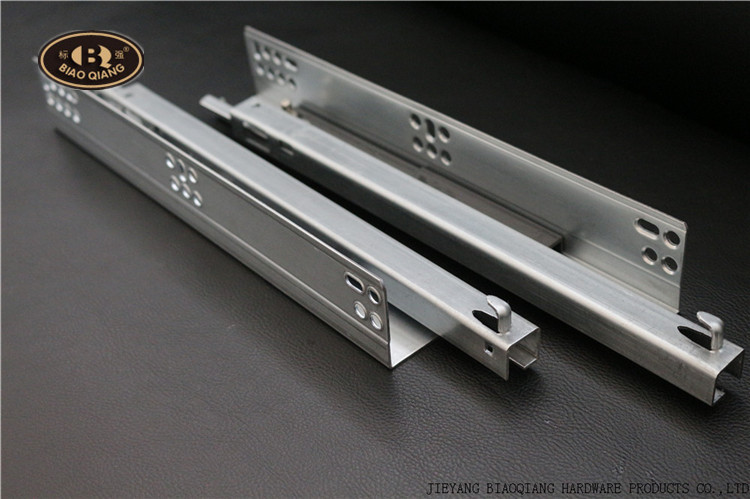

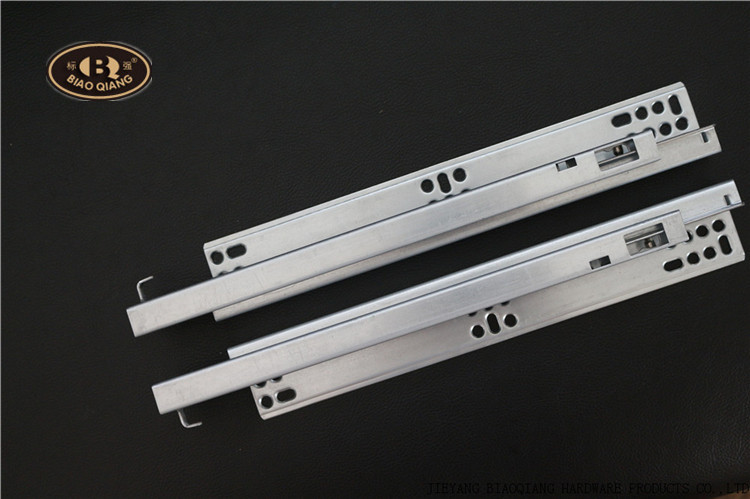

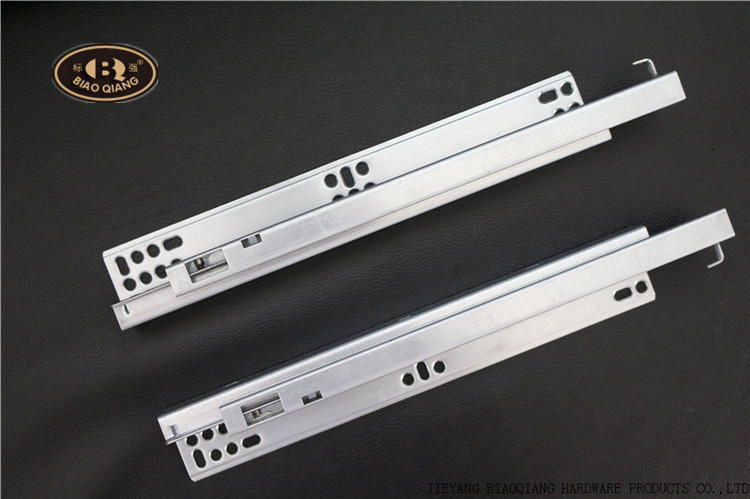

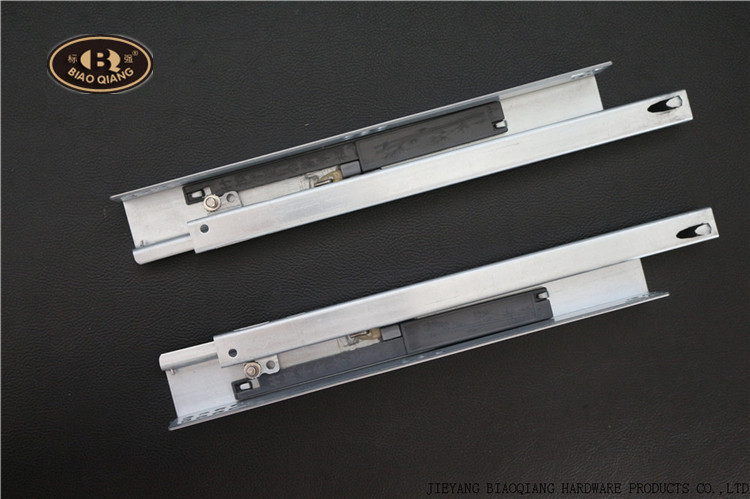

Undermount Soft Closing Concealed Telescopic Channel Drawer Slide

Supply Ability:	600 Ton(s) per Month
Shipping:	By truck or by sea
Payment Terms:	T/T, Other, by cash

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1 pair/polybag, 15 sets/ctn

Quick Details

Type: Slide
Brand Name: Biaoqiang
Type: Concealed slide
material: Galvanized sheet
Length: 250-550mm
Finish: Blue Zinc/ Rainbow Zinc Plating
Model Number: CS-15
Item No.: CS-15
Thickness: 1.4x1.4mm
Inch: 10-22 inches
Material: Galvanized sheet
Finish: Blue Zinc/ Rainbow Zinc Plating
Salt Spray Test: 36h
Open and Close Cycle Test: 50000 times
Loading Capacity: 25KGS
Installation: Undermount

Specifications

Undermount Soft Closing Concealed Telescopic Channel Drawer Slide

1. Product Description

Item No.	CS-15
Thickness	1.4x1.4mm
Size	10"(250mm), 12"(300mm), 14"(350mm) ,16"(400mm) ,18"(450mm), 20"(500mm),22"(550mm)
Material	Galvanized sheet
Finish	Blue Zinc/ Rainbow Zinc Plating
Application	Kitchen cabinet, Furniture, Door wardrobe, desk, computer keyboard, etc.
Salt Spray Test	36h
Open and Close Cycle Test	50000 times
Loading Capacity	25KGS
Package	1 pair/polybag, 15 sets/ctn
Installation	Undermount
Sample Arrangement	Samples free+freight collect, and we will send out samples within 1-3 days.
MOQ	at least 1ctn
Lead Time	about 25-35 days after receiving the deposit and all package details is confirmed.

2. Packing & Delivery

Packing:1 pair/polybag, 15 sets/ctn;
Delivery: Usually 25-35days.

Undermount Soft Closing Concealed Telescopic Channel Drawer Slide

3. Company Introduction

Jieyang Biaoqiang Hardware Products Co.,Ltd. Is specialized in producing ball bearing slide, and is one of the outstanding domestic industry, and has passed ISO 9001-2000 international quality system certification.

with advanced modern equipment and outstanding design, professional manufacturing and strict quality inspection system, Biaoqiang's products meet the standard in every aspect. the product is smooth and noiseless, wear resistance, and excellent quality.
