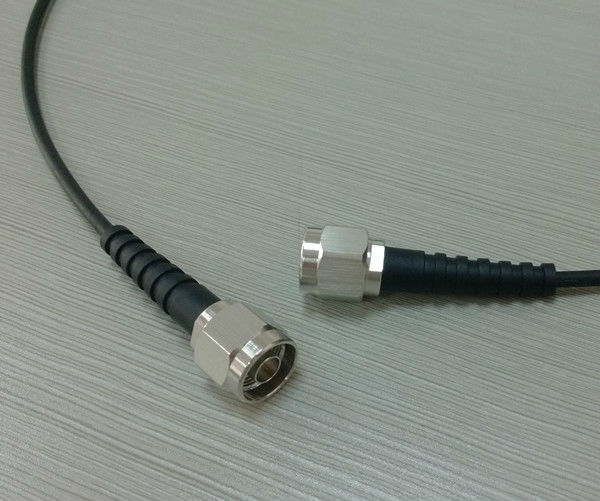

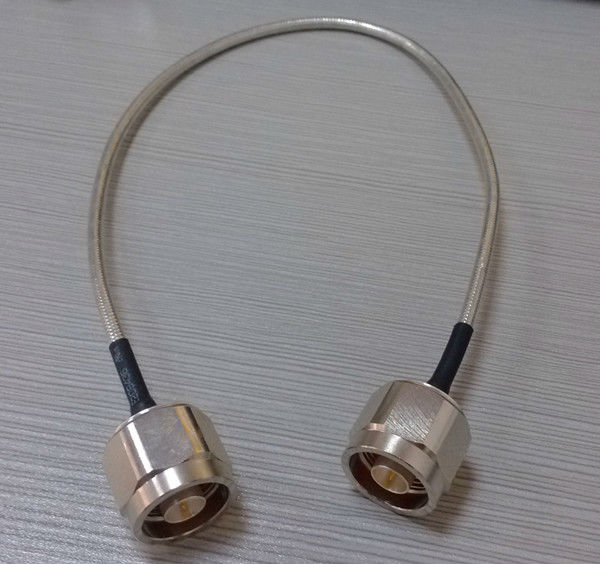

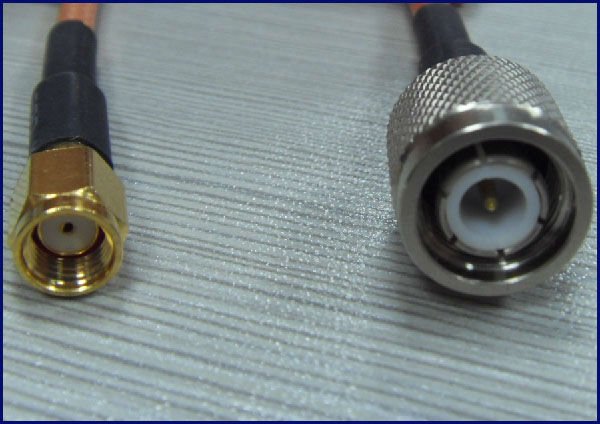

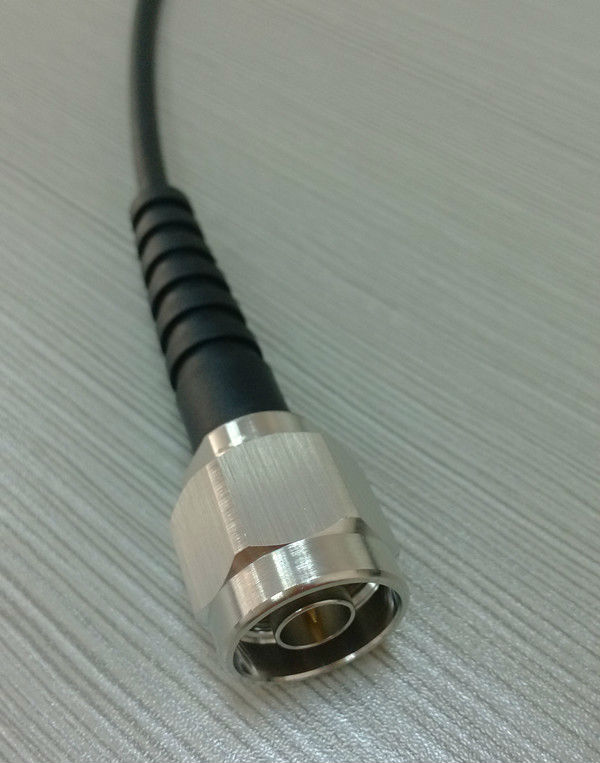

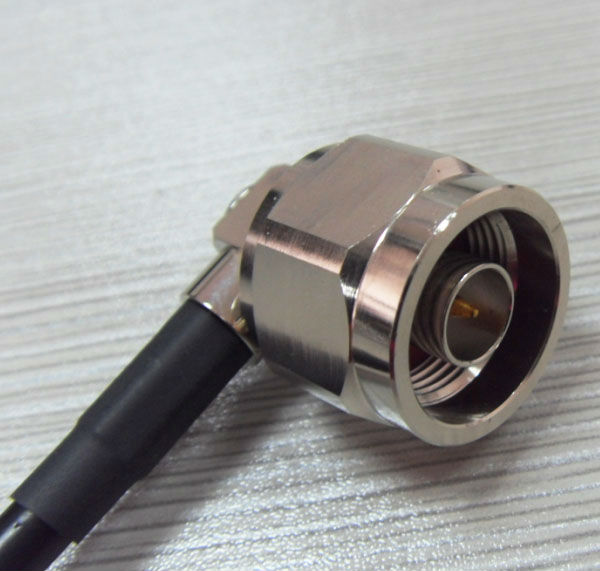

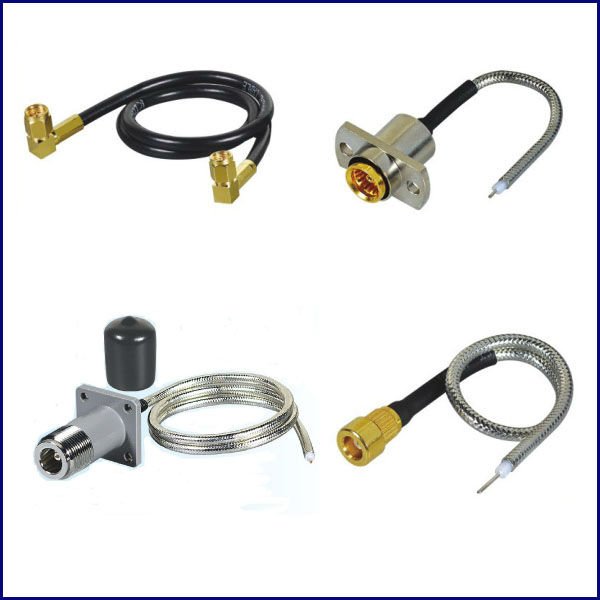

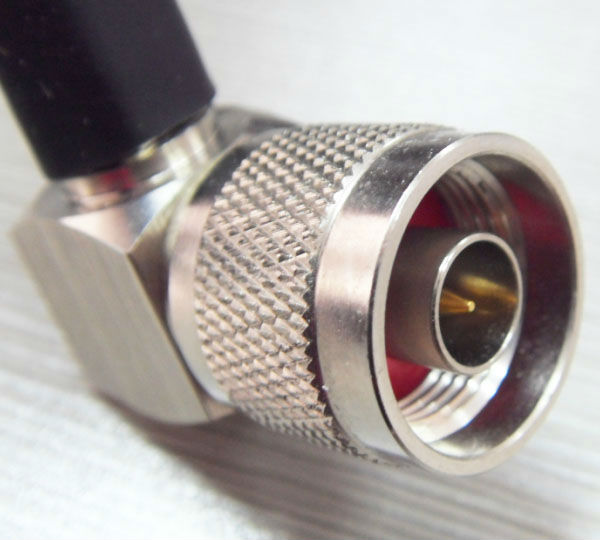

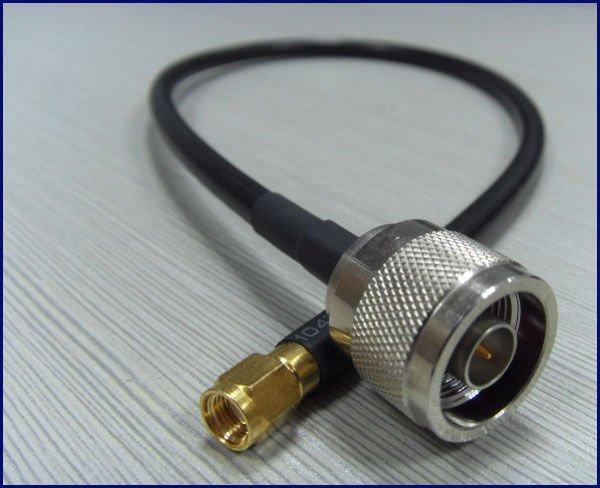

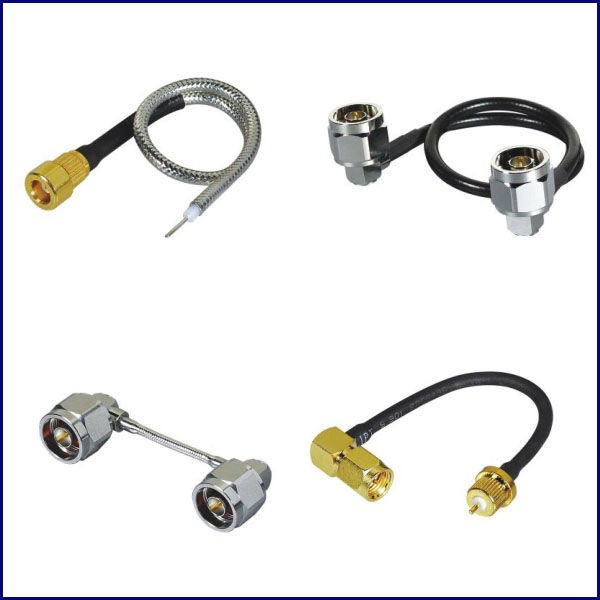

N to N, SMA RF Coaxial Cable Assemblies

Supply Ability:	100,000 Piece(s) per Month
Shipping:	As your required
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton

Quick Details

ELECTRICAL DATA
Impedance	50
Frequency Range	Flexible Cables DC 11GHz,
Frequency Range	Semi-rigd Cables DC18GHz
Withstand Voltage	2500V,50Hz
Working Voltage	1000V,50Hz (sea Level)
Insulation Resistance	5000m
Contact Resistance	Inner Conductor: 1.0m
Contact Resistance	Outer Conductor: 0.2m
RF Leakage(2-3GHZ)	Flexible: 90dB
3rd order Intermodulation	140dBc
MECHANICAL DATA
Coupling nut Torque	Recommended: 68Ncm--123Ncm /
	6.0 in. Lbs--10 in.Lbs
	Proof Torque: 170 Ncm / 15.0 in.Lbs
Proof Torque	170Ncm / 15.0 in.Lbs
Durability (matings)	500
ENVIRONMENTAL DATA
Temperature range	-65C to +165C
MATERIAL DATA
Bodies	Brass--Ternary alloy Plating
Pin Contacts	Brass--Au/Ag Plating
Socket Contacts	Copper Beryllium Alloy--Au Plating
Crimp Ferrules	Brass-- Ternary alloy Plating
Insulator	PTFE
Gaskets	Silicone Rubber
