Home  >Products Catalog > Lamination machines > Auto Film Lamination Machine Model YFMA with Electromagnetic Heating System & Auto Stacker

Auto Film Lamination Machine Model YFMA with Electromagnetic Heating System & Auto Stacker SafeBuy Supplier Member

Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Type: Laminating Machine
  • Automatic Grade: Automatic
  • Packaging Material: Wood
  • Packaging Type: Cartons
  • Application: Machinery & Hardware
  • Condition: New

Specifications


Auto film lamination machine Model YFMA with electromagnetic heating system and auto stackerYFMA series is a mini type Automatic laminating machine we develop according to market demand. It is with Compact structure, simple operation, stable system. It has multiple safety Devices for operator. It is widely used for thermal laminating film and the Laminating of presswork.



YFMA series is used for Laminating thermal film and paper sheets. It is equipped with automatic feeder and Automatic separating device, which are steady and highly active. The machine is Also equipped famous brand parts such as SCHNEIDER in order to make sure it is Steadier and safer.



the electromagnetic Heating system can guarantee the laminating high speedly, thermostatically, and Precisely. There is PLC controller which makes the high precision of paper Feeding smooth running long service life and easy maintenance. It is suitable for thermal film, especially for certificate cards book cover packing box and Food box, books, advertising products, window boxes, etc.



Configurations and features of this machine:

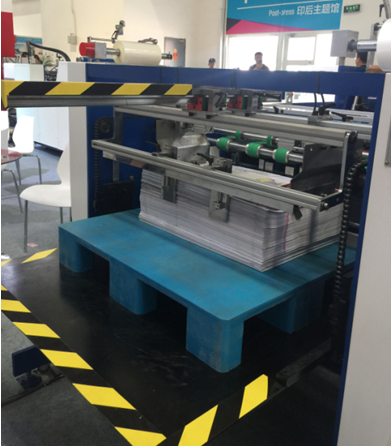

B.       Auto collecting stacker

C.       PLC control system,

D.       Front stop gauge Controlled by servo. Automatic paper feeding system is equipped with no paper Protector and paper break protector, which are controlled by photoelectric and Mechanical systems. Automatic paper feeder adopts oil-free vacuum pump

E.       Man-machine interface System(HMI): color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and Working speed etc., the machine can realize completely automated operation. and On touch screen, working status of the machine can be checked at any time.

F.        Auto hydraulic pressuring system provides automatically Stable pressure to guarantee good laminating quality. and the pressure can also Be adjusted upon requests.

G.      Air expansion shaft Releases film roll, and positions film roll more accurately, and also makes the Loading and unloading of film roll more convenient.

H.       the combination of air Expansion shaft and braking device can adjust film release tension and speed.

I.          Automatic film width cutting.

J.        Serrated perforating wheel perforates film edge for the Automatic cut of laminated paper.

K.       pneumatic traction Wheels, sanding wheels to grinding film for easy separating,

L.        Anti-curvature device for paper thickness200gsm: when going though the anti-curvature device, the Laminated paper shall be leveled at once and won't curve again after cut.

M.      Pneumatic separating System realizes automatic paper cut. after cut, the laminated paper will be Sent automatically to vibrating collector and be put into order.

N.       with slipt structure with Aisle which convenient to maintenance.



with electromagnetic heating system and auto stacker

Model

YFMA-560 with Electromagnetic heating system and auto stacker

YFMA-720 with Electromagnetic heating system and auto stacker

YFMA-920 with Electromagnetic heating system and auto stacker

YFMA-1100 with Electromagnetic heating system and auto stacker

Max laminating size(W*L)

560*780mm

680*780mm

889*940mm

1040*940mm

Min laminating size (W*L)

210*260mm

230*260mm

300*300mm

300*300mm

Paper thickness

105-500gsm

105-500gsm

105-500gsm

105-500gsm

Max. Film roll diameter

300mm

300mm

300mm

300mm

Power required

20kw(380V AC350/60HZ)

21kw(380V AC350/60HZ)

21kw(380V AC350/60HZ)

23kw(380V AC350/60HZ)

Laminating Speed

5-50 m/min

5-50 m/min

5-50 m/min

5-50m/min

Total Weight

1400kgs

1600kgs

1800kgs

2000kgs

Overall Dimensions(L*W*H)

4300*1450*1750mm

4300*1550*1750mm

4300*1750*1750mm

4500*1950*1750mm
