Hangzhou Zhongyuan Machinery Factory
China Manufacturer with main products: Roll Forming Machine, Roll Forming Machines, Roll Forming Equipment, Metal Forming Machine, Metal Forming Equipment, Forming Machine, Roll... |

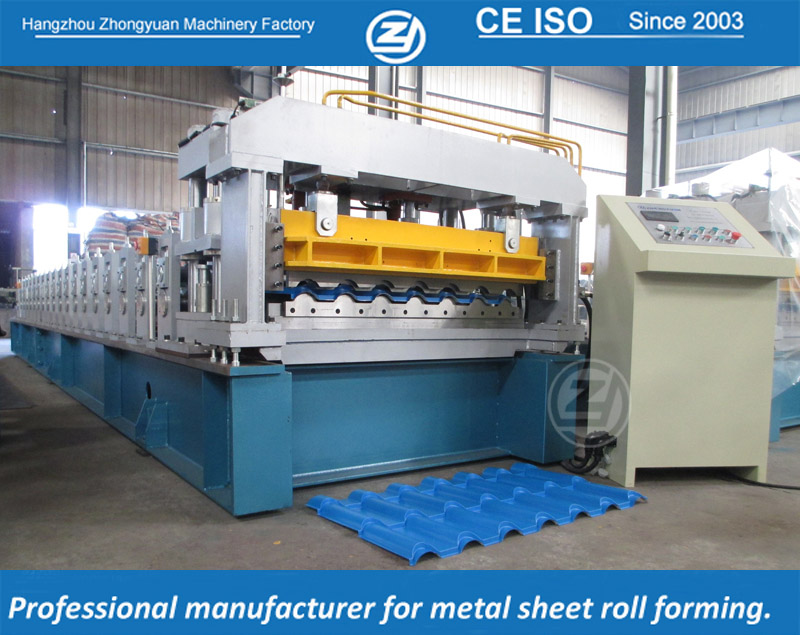

Metrocopo Tile Forming Machine 3
| Supply Ability: | 150 Set(s) per Year |
|---|---|
| Shipping: | Shanghai or Ningbo |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | fixed in containers,suiting for oversea shipping. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: Zhongyuan
- voltage: -
- weight: -
- Condition: NEW
Specifications
3
Technical Data of
Suitable material |
Q235 color steel sheet;0.5-0.6mm, |
Working speed |
about 5-6m/min |
Step distance |
Adjustable according to requirement (>=250mm) |
Power Requirement |
Main motor power: 5.5 Kw(Depend on final design) |
|
Hydraulic station power: 5.5Kw(Depend on final design) |
Material of forming rollers |
No.45 steel, plated with chrome on surface. |
Material of cutter,pressing die |
Cr12 mould steel with quench treatment, HRC58-60 |
Material of shaft |
High quality 45# steel, Dia. Is 72mm. |
Shaft diameter |
72mm |
Controlling system |
Mitsubishi PLC & converter |
Total weight of machine |
about 10500KGS |
Machine's size |
about 18m1.8m 1.5m (Depend on final design) |
Roll Forming System
Roller material is high grade No.45 forged steel plated with hard chrome, by digital-controlled procession.
, Metrocopo Tile Forming Machine, Factory
Machine Shafts for Rollers
1. Shaft material is No.45 steel with diameter 72mm, strong and durable.
2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.
Our Metrocopo Tile Roll Forming Machine's Advantages
1. Production speed: 6m per minute.
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome.
3. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
