Sealing with Laser Heat, Soldering Robots Laser Systems, CWLS-H

Specifications

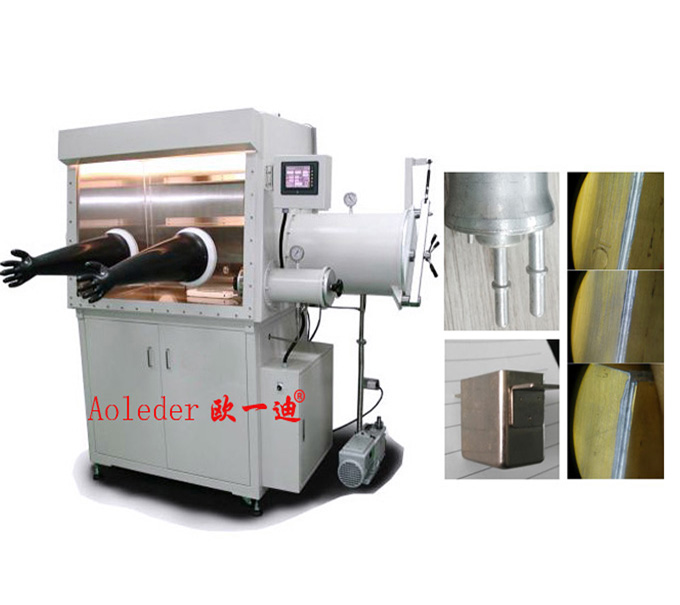

Sealing with Laser Heat,Soldering Robots Laser Systems,CWLS-H Production Description:

Sealed glove box by laser welding machine, laser glove box, laser power, optical system, CNC control system, refrigeration system and other components, precision welding is mainly applicable to the special material requirements of welding environment. The biggest highlight of the device lies in the smart camera vision positioning system, with high resolution, fast response time and easy programming. to achieve efficient communication between the motion control system, repetitive positioning accuracy of the work-piece are low, high precision can complete any complex graphics repeat precision welding, which is different from the traditional teaching programming and single program processing mode, which can be widely used in the automation of small format repeat precision welding.

Sealing with Laser Heat,Soldering Robots Laser Systems,CWLS-H Product Features:

1.the use of high-performance solid laser, optional with 500W/700W;

2.High precision table, high quality glove box, vacuum sealing welding;

3. Visual positioning, intelligent welding, welding seam formation and sealing;

4.Applicable to the military industry, special materials welding;

5.Welding seam is smooth, fine and sealed;

6.Contactless and low heat input;

7.Minimum part deformation;

8.No tool ware;

9.Minimum metallurgical damage;

10.Very stable processes;

11.Very fast;

12.Easy integration in production equipment;

13.Low cost per weld for high volume applications.

Sealing with Laser Heat,Soldering Robots Laser Systems,CWLS-H Application:

Widely used iN aerospace, military, medical, automotive, electronics and other industries.

Application Advantages of Hermetic Laser Sealing:

Highly Reliable  Laser welding provides an exceptionally durable seal, much more so than epoxy, soldering, or mechanical seals.

Won'T Damage Electrical Parts  Laser  beams have a very narrow heat affected zone, so sealing can be performed in very close proximity to sensitive electrical components.

Oxygen and Moisture Free  Vacuum baked assemblies exhibit less that than 1 ppm (parts per million) oxygen and moisture this is a level of  performance that conventional epoxy, solder, and mechanical seals cannot possibly match.

Flexibility of Container Material  Because Laser Welding can join dissimilar materials and also crack sensitive materials, engineers have a wide range of material options to use in the packaging of the inner components.

Hermetic Laser Sealing is the most durable and cost effective way to protect electronics in the harshest of environments in the most critical of applications: satellite microwave/RF packages, battlefield command and control systems, deep sea sonar and seismic sensors, and medical implants in the human body. the process involves preparing the assembly and then sealing it into a hermetically secure metal package using a computer controlled laser.

Laser Soldering is a welding technique used to join multiple pieces of metal through the use of a laser. A laser produces a beam of high-intensity light which is focused into a single spot to provide a concentrated heat source, allowing narrow, deep welds and high welding speeds. Find more details in our Laser Fundamentals. the process is frequently used in high volume applications, such as in the automotive and medical industry.
