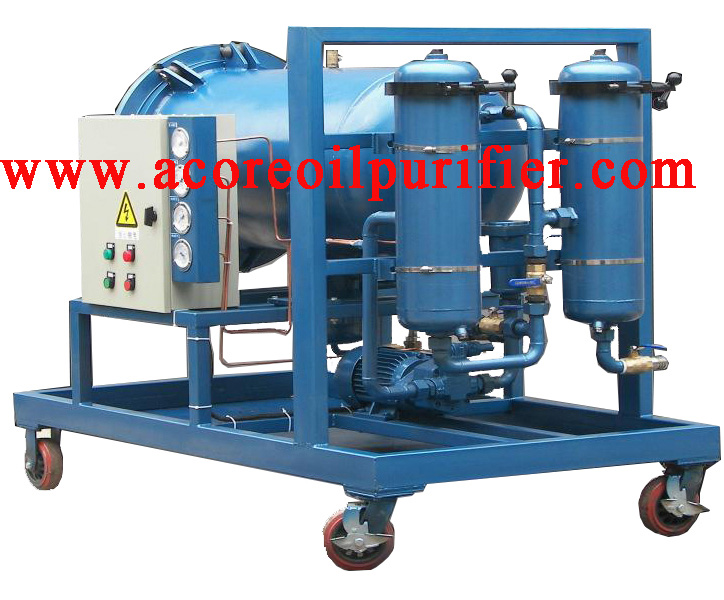

Waste Marine Diesel Fuel Oil Flushing Machine

Supply Ability:	100 Set(s) per Year
Shipping:	by sea
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 500-1500kg
Brand Name: Acore
Condition: New
Dimension(L*W*H): Option
Power(W): 30-150kw
Voltage: Option
Model Number: CSF
Working Pressure: 0.4Mpa
Flow: 10-300L/min

Specifications

Diesel Fuel Oil Flushing Machine can be used for aviation fuel, gasoline, kerosene, diesel and other light oil purification, removal of oil in the water and impurities, to extend the life of the fuel tank to improve fuel efficiency. Is the ideal equipment for oil depots and oil storage station.

the Diesel Fuel Oil Flushing Machine consists of coarse filter system, secondary filter system, fine filter system and coalescence separation chamber, oil pump and circuit control system.

1) Filtration and dehydration function, removing the corresponding oil in the emulsified water, free water, impurities.

2) separate filter oil, used as a tanker; its working principle is: the oil flow through the special high efficiency filter, through the filter from the table and in the flow direction gradually narrowing the gradual pore structure, layered interception of different sizes of pollution Particles, to maximize the filter to improve the service life and filtration efficiency.

3) Set the internal circulation to facilitate the replacement of coalescence separation filter.

Principle of Diesel Fuel Oil Flushing Machine

Oil in the system first into the coarse filter system, the treatment, large particles of impurities are removed to protect the pump is not damaged, after the oil was pumped into the secondary filtration system, processed into the coalescence chamber of the coalescence filter, Due to the unique polar molecular structure of the coalescing filter material, the free water in the oil and the emulsified water coalesce into the larger water droplets after passing through the filter element and sink to the storage tank under the action of gravity. the fine water molecules follow the oil to the separation filter under inertia. the separation filter is made of a special hydrophobic material. When the oil passes, the fine water molecules are blocked outside the filter element and are collected from each other and finally discharged into the storage tank in the lower part of the coalescing chamber. after the oil has been dehydrated, the fine filter system is introduced to ensure that the oil cleanliness of the tank entering the tank reaches the design standard.

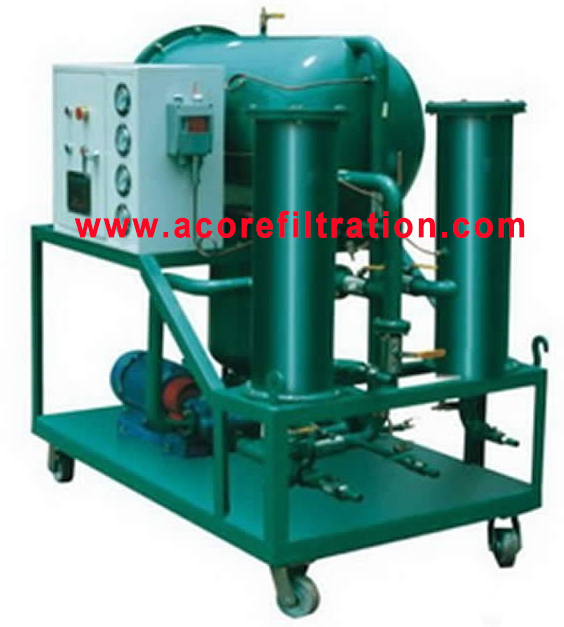

Waste Marine Diesel Fuel Oil Flushing Machine
