Jinan Huiyou Construction Machinery Co., Ltd-Hycm Tower Crane

China Manufacturer with main products: Derrick Cranes, Luffing Tower Crane, Topless Tower Crane, Topkit Tower Crane, ZLP Suspended Platform, Construction Hoists, Guindaste De Torre

Home  >Products Catalog > Topkit Tower Crane > 10T QTZ5025 Self Climbing Tower Crane 50m Boom with Tower Head

10T QTZ5025 Self Climbing Tower Crane 50m Boom with Tower Head

Supply Ability: 10 Set(s) per Month
Shipping: FOB Qingdao
Payment Terms: L/C, Western Union, MoneyGram, Safebuy, 30% deposit and 70% before shipment
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China

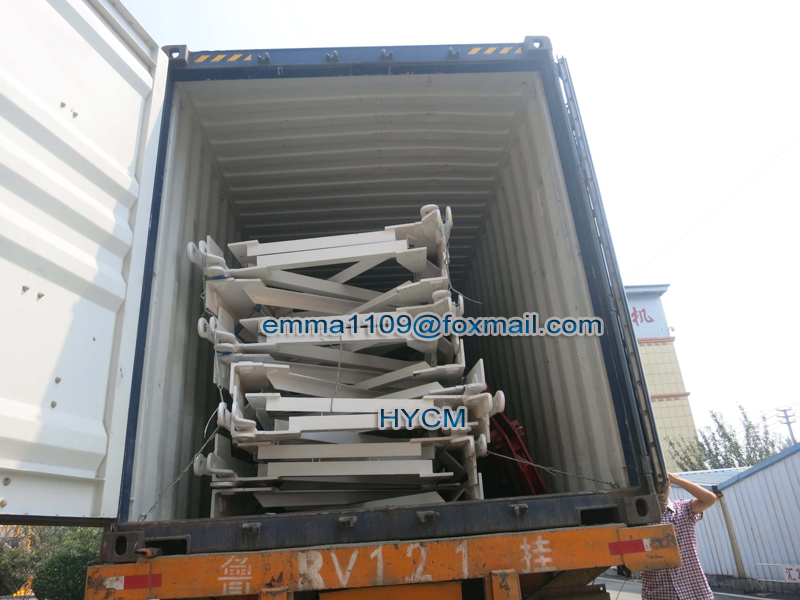

Packaging Details: 20'GP and 40'HQ Containers

Quick Details

  • Feature: Tower Crane
  • Certification: ISO,CE,GOST
  • Brand Name: HYCM
  • Max. Lifting Height: 180M
  • Max. Lifting Load: 10T
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 YEAR
  • Model Number: QTZ125-TC5025
  • Span: 3-50M
  • Rated Lifting Moment: 1250KN.M
  • Rated Loading Capacity: 10T
  • Application: Buildings site
  • Type: Self climbing
  • base type: well-frame, outrigger or base with ballast
  • color: Yellow or according to clients needs
  • Electric box: Schneider Contactors


10T QTZ5025 Self Climbing Tower Crane 50m Boom with Tower Head


    this tower crane fixed to the ground on a concrete slab which often give the best combination of height and lifting capacity and are used in the construction of tall buildings.

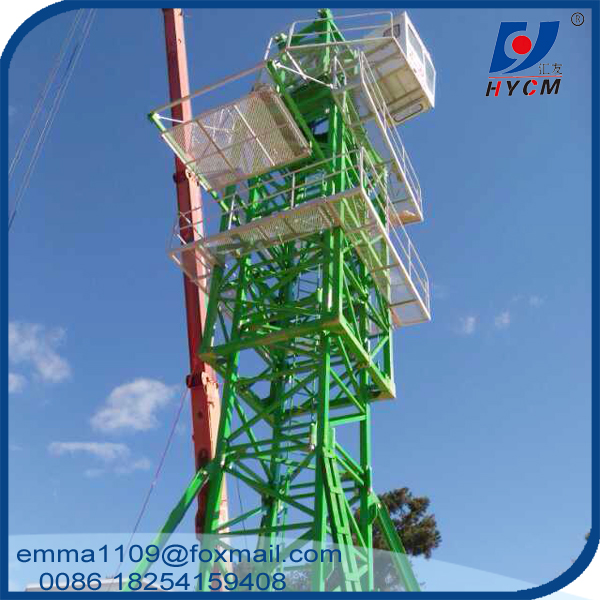

    the base is then attached to the mast which gives the crane its height. Further the mast is attached to the slewing unit (gear and motor) that allows the crane to rotate.

    on top of the slewing unit there are three main parts which are: the long horizontal jib (working arm), shorter counter-jib, and the tower head.


Rated Lifting Moment 1250KN.M
Rated Loading Capacity 10t
Max. Lifting Load 10t
Tip Load 1.8t
Max. Lifting Height 180m
Span 60m
Free standing height 50m
Rope length 470m
Working range 3-60m
Slewing speed 0-0.6r/min
Trolley speed 0-60 m/min
Jacking-up speed 0.4 m/min
Hoisting speed(m/min) (a=2) 0-100  (a=4) 0-50
Power supply 380V/50Hz  or according to client's requirments
Power Capacity 61.5 kw
Electric switch box Schneider
Main materials 125*12mm/welded square tube plus rebar/Q345B
Mast section dimensions 1.835*1.835*2.5m (block) or 2*2*3m (split)
