1/2 Superflex Jumper Cable with N MALE to N FEMALE CONNECTOR 1m

Supply Ability: 1,000 Piece(s) per Day
Shipping: air , sea transport
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: by customers' requirements

Quick Details

  • Application: RF
  • Conductor Material: Copper
  • Brand Name: zhengkai
  • Model Number: N-H-J1/2S-1A/N-H-K1/2SA-1m
  • VSWR: less than 1.10
  • PIM: less than -150dBc

Specifications


Jumper Cable RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps.with only one combination connector and the different cable clamps,a variety of connectors can be produced allowing a reduction in stock-levels.The technical specifications can be obtained from the descriptions in the respective chapters for each series.

Note: connector and cable type,length an be changed based on customer's requirements.

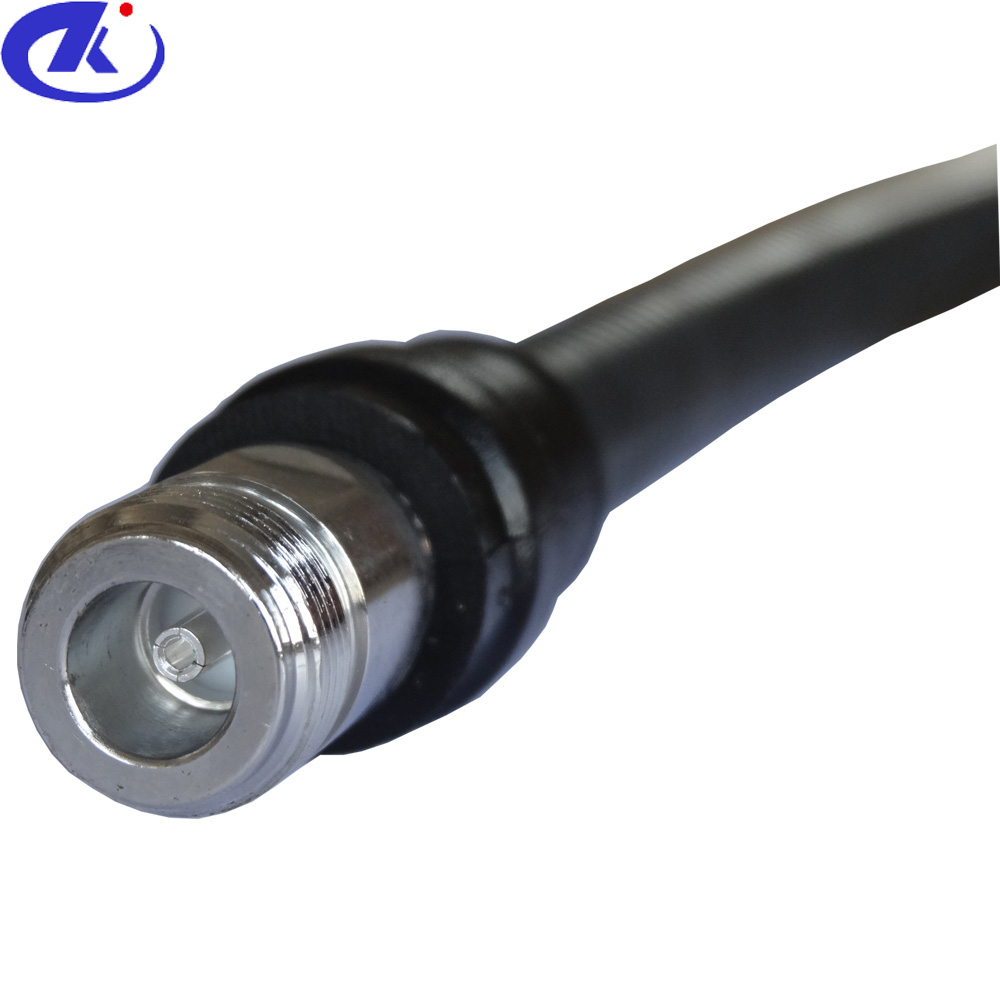

12 superflex jumper cable with N MALE TO N FEMALE CONNECTOR 1m

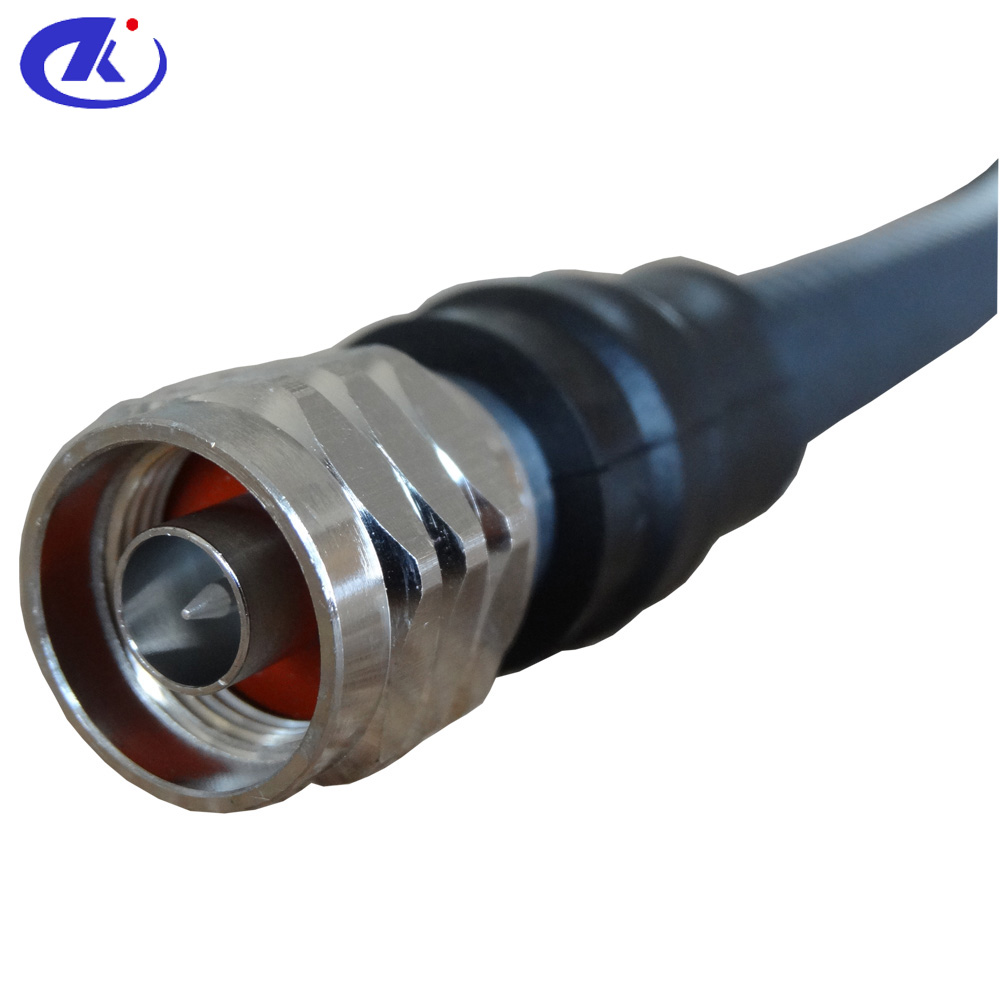

12 superflex jumper cable with N MALE TO N FEMALE CONNECTOR 1m

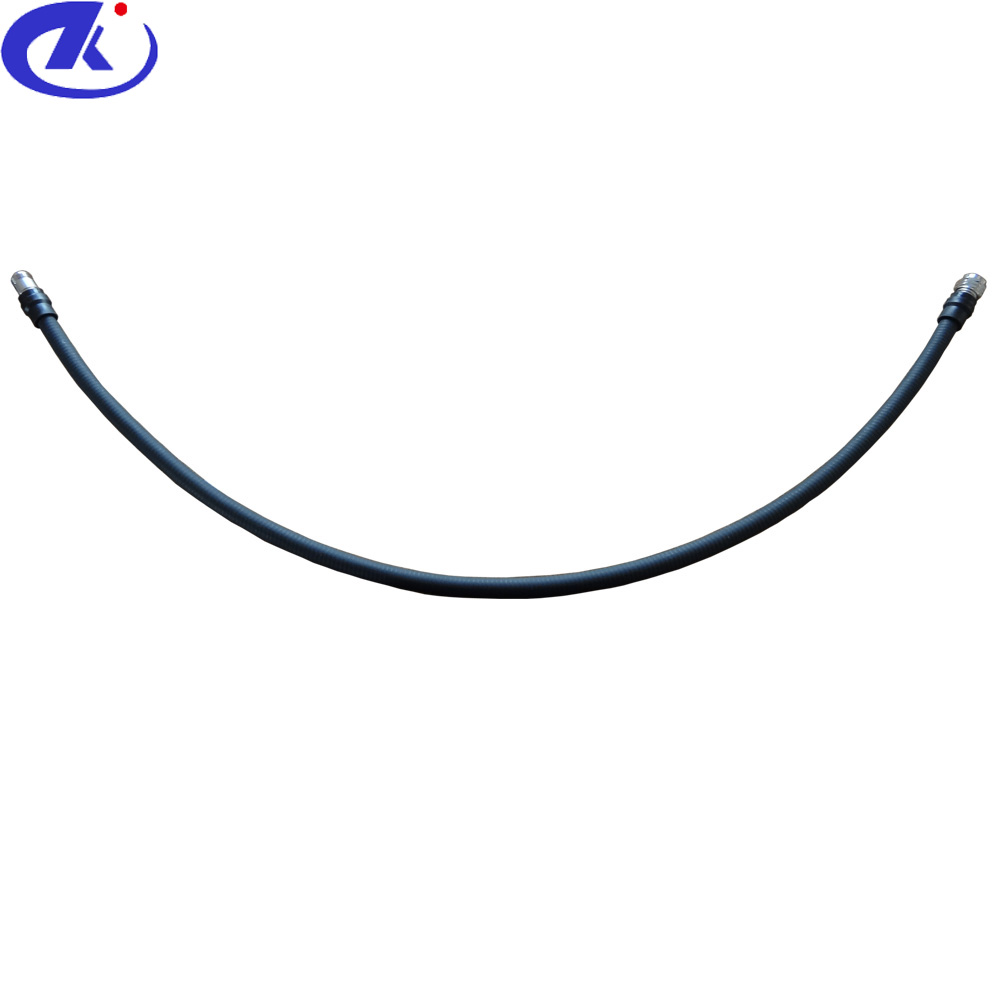

12 superflex jumper cable with N MALE TO N FEMALE CONNECTOR 1m






Technical details:

Interface

According  to

IEC60169-16

Electrical

1

Characteristic Impedance

50ohm

2

Frequency Range

DC-3GHz

3

VSWR

1.10

4

Dielectric withstanding voltage

2500RMS,50Hz,at sea level

5

Dielectric Resistance

5000M

6

Contact Resistance

Outer Contact1m;Center Contact0.5m

Mechanical

1

Durability

Mating cycles 500

Material and plating



Description

Material

Plating

1

Body

Brass

Tri-alloy

2

Insulator

PTFE

3

Center conductor

Phosphor bronze

Ag

4

Other

Brass

Ni

Environmental

1

Temperature Range

-40~+85

Inspection

1.CNC machines,advanced test equipment

2.All products are suit for ROHS.

3.ISO14001 certificate,ISO9001 certificate

Package:
12 superflex jumper cable with N MALE to N FEMALE CONNECTOR 1m
12 superflex jumper cable with N MALE TO N FEMALE CONNECTOR 1m
Certificate12 superflex jumper cable with N MALE TO N FEMALE CONNECTOR 1m
