Home  >Products Catalog > Free Samples High Frequency 7/16 DIN Male to N Male 1/2" Superflex Connectors Cable Assembly

Free Samples High Frequency 7/16 DIN Male to N Male 1/2" Superflex Connectors Cable Assembly

Supply Ability: 1,000 Piece(s) per Day
Shipping: air , sea transport
Payment Terms: L/C, T/T, Western Union
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: by customers' requirements

Quick Details

  • Application: RF
  • Insulation Material: PVC
  • Conductor Material: Copper
  • Brand Name: Zhengkai
  • Model Number: N-H-J1/2Sa/7/16-H-J1/2Sa-3m
  • PIM3: less than -155dBc
  • VSWR: less than 1.12@3GHz
  • Plating of body: Tri-alloy/Ni
  • Plating of PIN: Ag
  • Impedance: 50Ohm
  • Assembly method: solder type
  • Durability: about 500 times

Specifications

 Jumper Cable RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps.with only one combination connector and the different cable clamps,a variety of connectors can be produced allowing a reduction in stock-levels.The technical specifications can be obtained from the descriptions in the respective chapters for each series.

Note: connector and cable type,length an be changed based on customer's requirements.

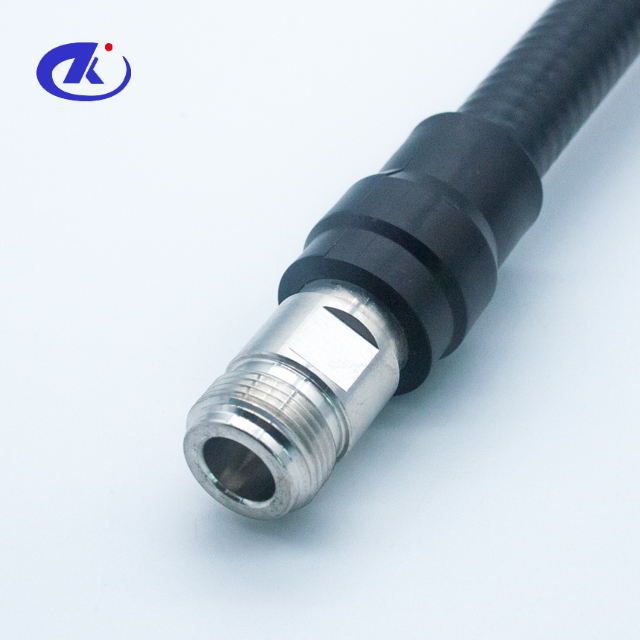

free samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assembly

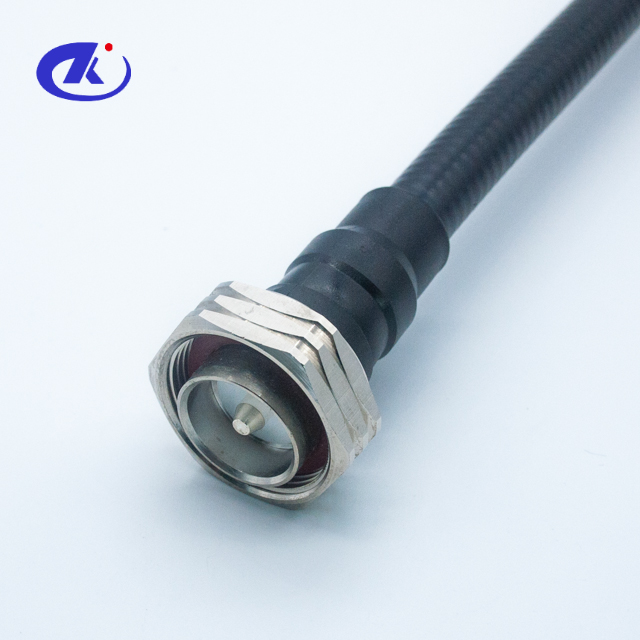

free samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assembly

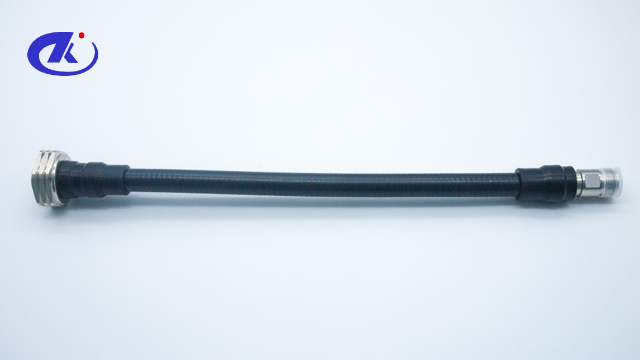

free samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assembly

According  to

IEC60169-4

Electrical

1

Characteristic Impedance

50ohm

2

Frequency Range

DC-3GHz

3

VSWR

Less than 1.15

4

Dielectric withstanding voltage

2000RMS,50Hz,at sea level

5

Dielectric Resistance

5000M




7

PIM3

-155dBc

Mechanical

1

Durability

Mating cycles 500

Material and plating



Description

Material

Plating

1

Body

Brass

Tri-alloy

2

Insulator

PTFE

3

Center conductor

Brass

Ag

Environmental

1

Temperature Range

-40~+85

Inspection

1.CNC machines,advanced test equipment

2.All products are suit for ROHS.

3.ISO14001 certificate,ISO9001 certificate


free samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assembly
free samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assemblyfree samples High frequency 716 DIN Male to N Male 12 superflex connectors Cable assembly
