Home >Products Catalog > Other DC UPS > Portable 18650 Lithium Battery UPS USB 5V Two DC 9V 1A Output Voltage Emergency Backup Power UPS for IP Camera

Portable 18650 Lithium Battery UPS USB 5V Two DC 9V 1A Output Voltage Emergency Backup Power UPS for IP Camera

Supply Ability:	3,000 Piece(s) per Week
Shipping:	Bpost international,Turkey Post,China Air mail
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Brown box

Quick Details

Application: Security / Monitoring / Alarm
Type: On-line
Protection: Short Circuit
Phase: 9V
Brand Name: WGP
Output Voltage: 5V 9V 9V
Weight: 248g
Model Number: WGP103-599-02
Product name: battery ups 5V two DC 9V 1A output voltage emergency backup power ups
Capacity: 5200mAh/38.48wh
Battery Type: 18650 Lithium Battery
Input: 9V 1A
Output: 5V 1A,9V 1A,9V 1A
Weight: 248g
Size: 116*73*24mm
Accessory: 9V 1A power adapter
Certification: CE/RoHS/FCC/PSE
Application: wifi router,ADSL modem,security camera etc.

Specifications

Portable 18650 lithium battery UPS USB 5V two DC 9V 1A output voltage emergency backup power UPS for IP camera + 9V 1A adapter

Product Description

this is a brand new mini UPS by RICHROC company.It is a mini online UPS with power bank mode,can work three different devices at the same time.

with one 5V USB output port and two 9V 1A output port.

ecaltvv Portable 18650 lithium battery UPS USB 5V two DC 9V 1A output voltage emergency backup power UPS for IP camera + 9V 1A adapter

the uninterruptible power supply which also called UPS,that is a kind of backup battery which can power your device when there is no mains supply.It is widely used for security system,safety monitoring system,door control system and attendance system,communication system etc.

Specification

Model	WGP103-599-02
Type	3 output port mini UPS
Input	9V 1A Adapter
Output	5V 1A, dual 9V 1A
Working temperature	-20C~65C
Weight	248g
Size	1167324mm
UPS in jack	5.5*2.1Mm,OUT:5V USB
DC output	5.5*2.5mm
Battery capacity	7.4V-5200mAh 38.48wh

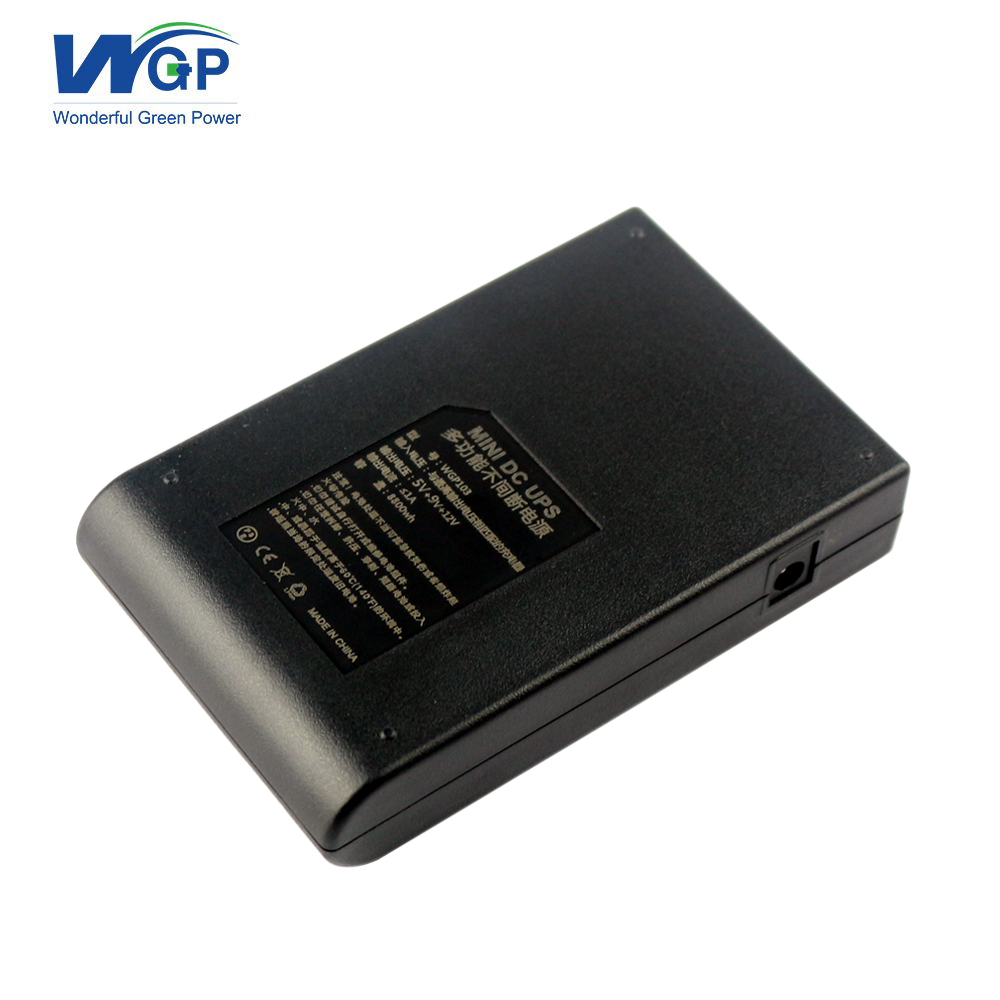

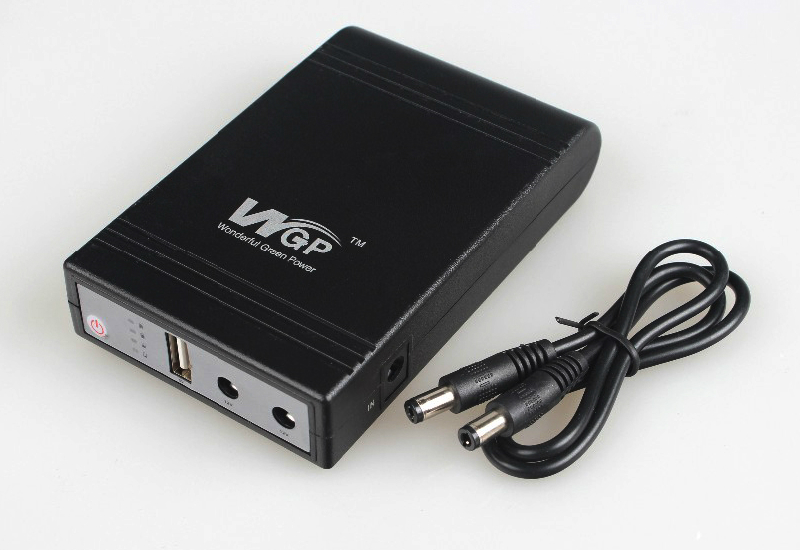

Product Overviews

ecaltvv Portable 18650 lithium battery UPS USB 5V two DC 9V 1A output voltage emergency backup power UPS for IP camera + 9V 1A adapter

Packaging & Shipping

Packing List

One MINI UPS

One user manual

One 9V 1A adapter

One USB to DC cable

Two DC to DC cable

Three connectors

Packed with RICHROC gift box,outside with carton box packing

Delivery time

Sample:2-3days

Bulk order:20-25days

Special service

Sample order can offer free laser logo

Warning

L Equipment voltage must matching with UPS voltage.

L Avoid dropping the product.

L Keep the UPS away from heating source,water and fire.

L Do not disassemble the UPS or other components.

L Please read the user manual carefully before using,the incorrect operation will damage the product.

L Keep it away from children.

Company Information

China RICHROC Is a medium modernization manufacturer and exporter,specialized in the design and sell of mini UPS,home solar lighting systems,temperature control power battery,power bank.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,MP3,MP4,digital camera,LED lamp,portable DVD/CD player,PDA,digital camcorder,ADSL modem and satellite communication system,E-bike etc.

Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed for each month.We have our own brand name WGP.Welcome your OEM and ODM orders. Our products have passed FCC,RoHS,CE and PSE Certificates.the production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast delivery are the reasons to choose us.

We Richroc focus on developing,manufacturing and selling the most realiable,safety and easy operate technical products.Our success comes from constant efforts to increasing production ability,improving life quality and bringing convenient and safety life for our customers.under the aim of keeping creative for customers'profits,we make efforts to creating the most talented and creative products,as well as technology innovation.

FAQ

Q:how is it work?
A:When have electricity,UPS act as a bridge, city power provide electric to device,at the same time,UPS is being charging.When no electricity,then UPS back up the device.

Q:how to charge the UPS?
A:Battery will only charge with power switch in the ON position.

Q:What's the backup time?how can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable UPS to you:
1.What's the device you plan to use?
2.What's the working voltage and current?
3.What's your expected backup time?

Q:how can I maintain the device lifetime?
A:When stored, the UPS will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
as a guide, the UPS should not be stored for longer than the periods shown below without being recharged:
6 months at 20C
3 months at 30C
2 months at 35C
If the UPS was not used for long time, it is suggested to charge it once every 3~5months
