Aluminum Foil Container Making Machine SEAC-63
| Supply Ability: | 100 Set(s) per Year |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Type: Laminating Machine
- Automatic Grade: Automatic
- Packaging Material: Wood
- Packaging Type: Cartons
- Application: Food
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 8800KGS
- Dimension(L*W*H): 1500*2200*3500
- Model Number: SEAC-63
- Brand Name: SE
- Power: 15
- Voltage: 380-450V
- Driven Type: Electric
Specifications

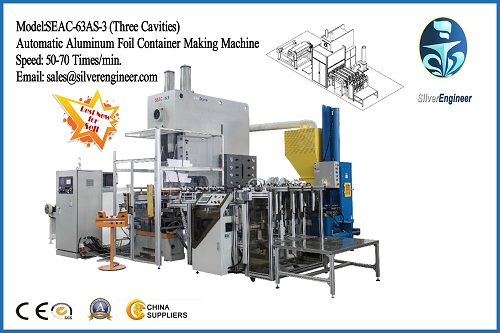

Automatic Aluminum Foil Container Production Line
Model: SEAC-63A
Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.
It fit for all common size Aluminum Foil Container production requested. the Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1. Raw material: Aluminum foil; Thickness: 0.040mm~0.250mm;
Alloy: 8011, 8006, 3003, 3005 etc.;
2. Japan Inverter, PLC and 10inch touch screen control system;
3. Max. Width of Aluminum foil: 800mm;
4. Max. Diameter of Aluminum foil: 700mm;
5. Core diameter of Aluminum foil: 76/152mm;
6. Working speed: 40-65 times/min;
7. Total Power: 12.5kw+2kw+2kw+1kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9. Install dimension: 5800*2600*3200mm;
Technical Data:
Max. Container size: Single cavity 550*400*100mm;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1200*900mm; 2plate thickness 100/50mm;
Mould handle hole dimension: 50*60mm(Diameter*Depth);
Power: 4P, 380V or 220V, 50Hz /60Hz;
Net weight: 9, 500kg
.
