>Products Catalog > Corrugated Paperboard Production Line > 5-Ply Complete Rigid Corrugated Cardboard Production Line[Corrugation Machine Price]
![5-Ply Complete Rigid Corrugated Cardboard Production Line[Corrugation Machine Price]](http://upload.ecvv.com/upload/UserImage/20171118/357LayerComputerisedCardboardCorrugationMachineforSale_77fd46bc-3a58-48d5-bc8c-bad758f4306c.jpg)

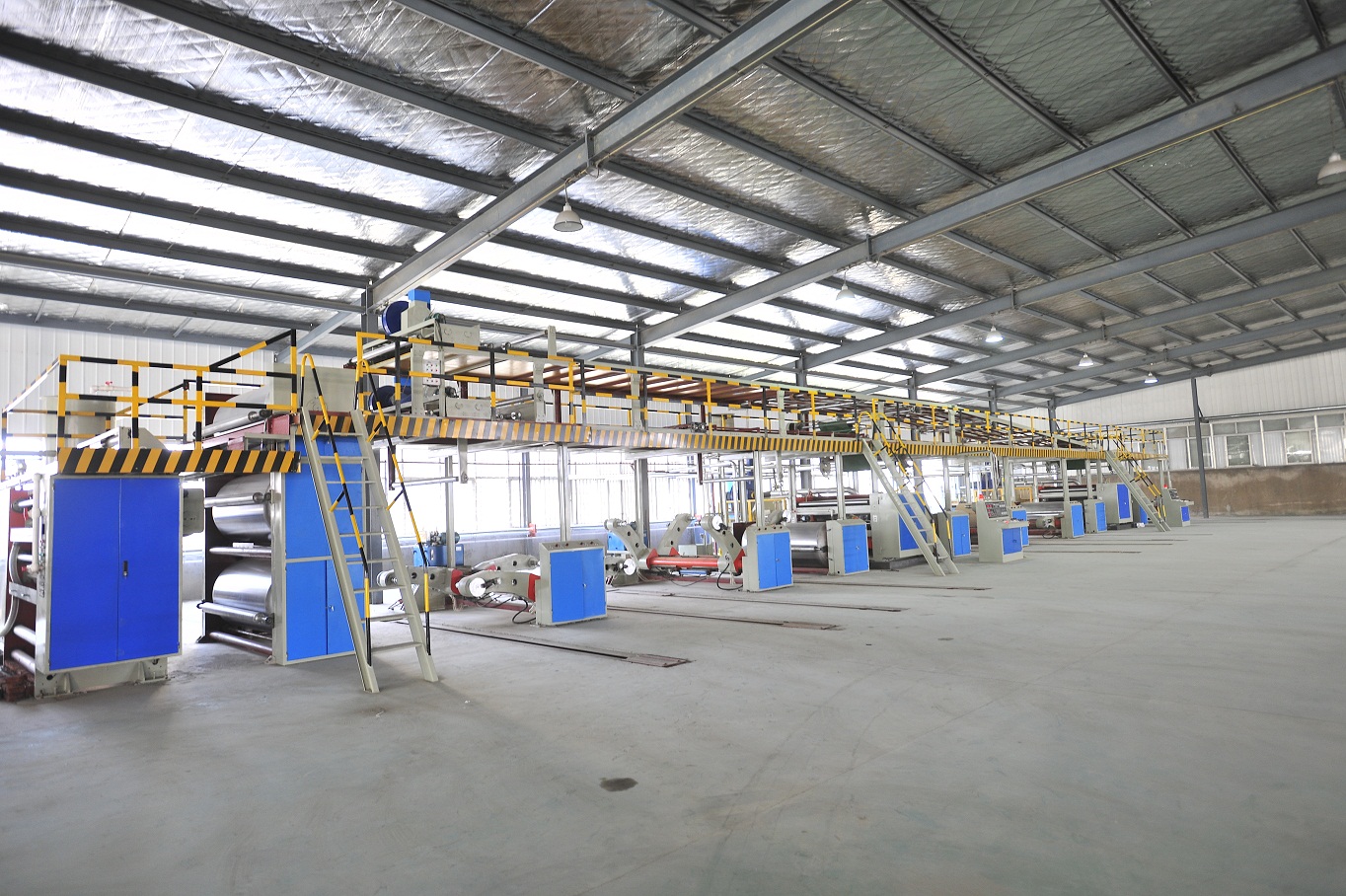

5-Ply Complete Rigid Corrugated Cardboard Production Line[Corrugation Machine Price]
| Supply Ability: | 5 Set(s) per Year |
|---|---|
| Shipping: | Sea ,Railway |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 YEAR
- Voltage: 380V
- Brand Name: RICHOCEAN
- Condition: New
- Type: Corrugating Machine
- Condition: New
- Computerized: Yes
Specifications
1.Main Technical Parameters:
| Max.Effective width | 1800mm |
| Flute type | UV type,Flue type as your choice |
| Heating method | Steam |
| Steam requirements | 2 T/h |
| Steam Pressure | 0.8~1.2Mpa |
| Max.Machine Speed | 150m/min |
| Economic Working Speed | 3-Ply mode:100~130 m/min 5-Ply mode:100~110 m/min |
| Paper Standard | Max.Width 1800 mm. Face paper: 150g/m ~ 180g/m(8% -10% moisture content) Bursting strength index (KN.M / g) 3.5 Ring crush index (N.M / g) 8 Corrugated paper: 125 ~ 150 g / m Ring crush index (N.M / g) 7 (moisture content 8-10%); Inside paper: 110 ~ 135g / m Ring crush index (Nm / g) 5.5, (moisture content 8-10%); (Note: If using double-sided sizing paper, the speed will be reduced accordingly, the quality of the paper above the level consistent with the requirements of the national B standard) |
| Air pressure | 0.4~0.7Mpa |
| Power | 380V/50Hz |
| Total power | about 240KW |
| Overall Size(LWH) | about 75m4.5m4.5m |
| Adhesive | Starch glue |
2.Machine List:
| No. | Machine List | Quantity |
| 1 | Mill Roll Stand(Electric) --Including track and trolley. |
5 Sets |

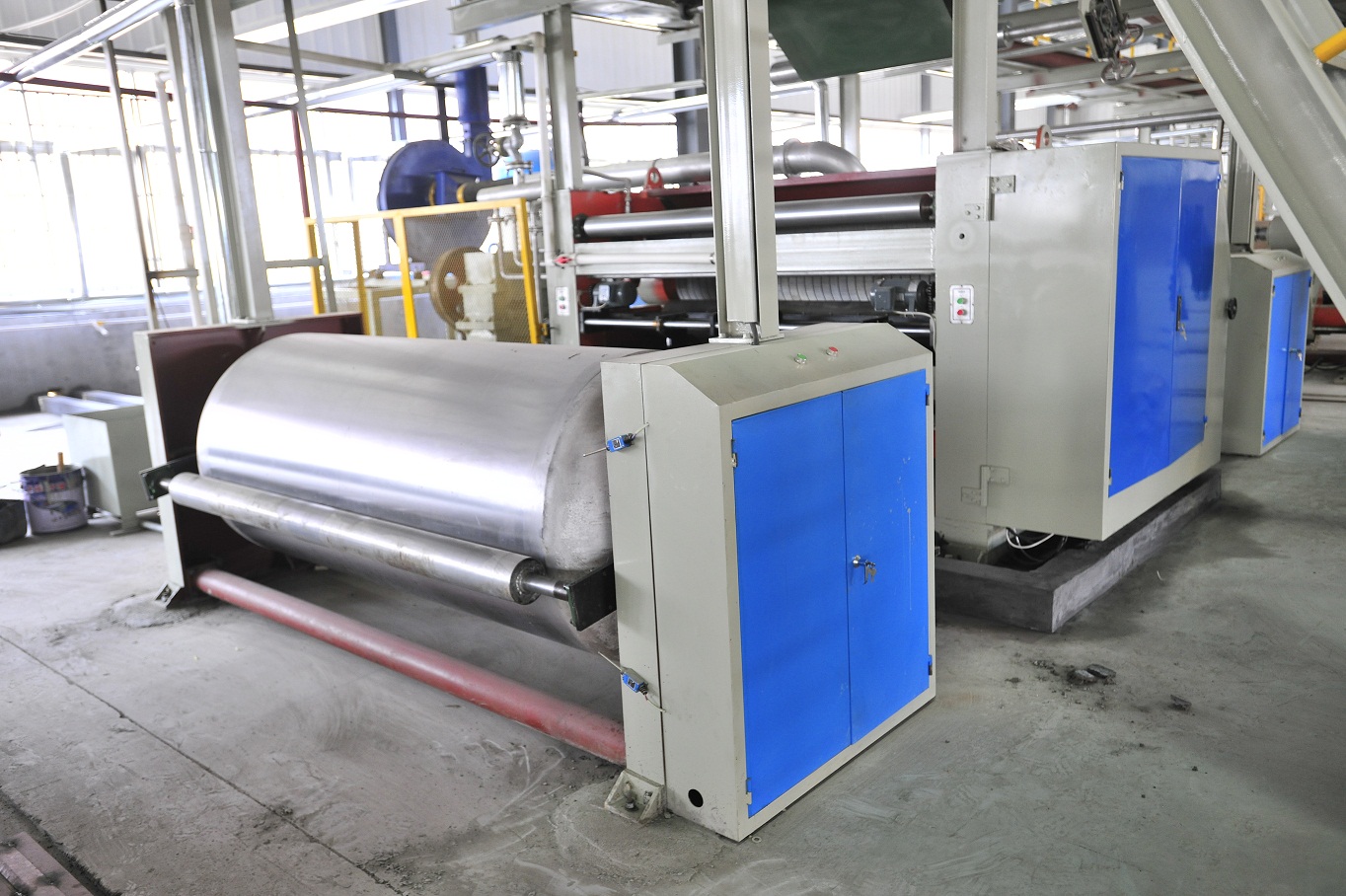

| 2 | Preheater (RG):900mm. | 2 Sets |
| 3 | Preconditioner (RG):900mm. | 2 Sets |

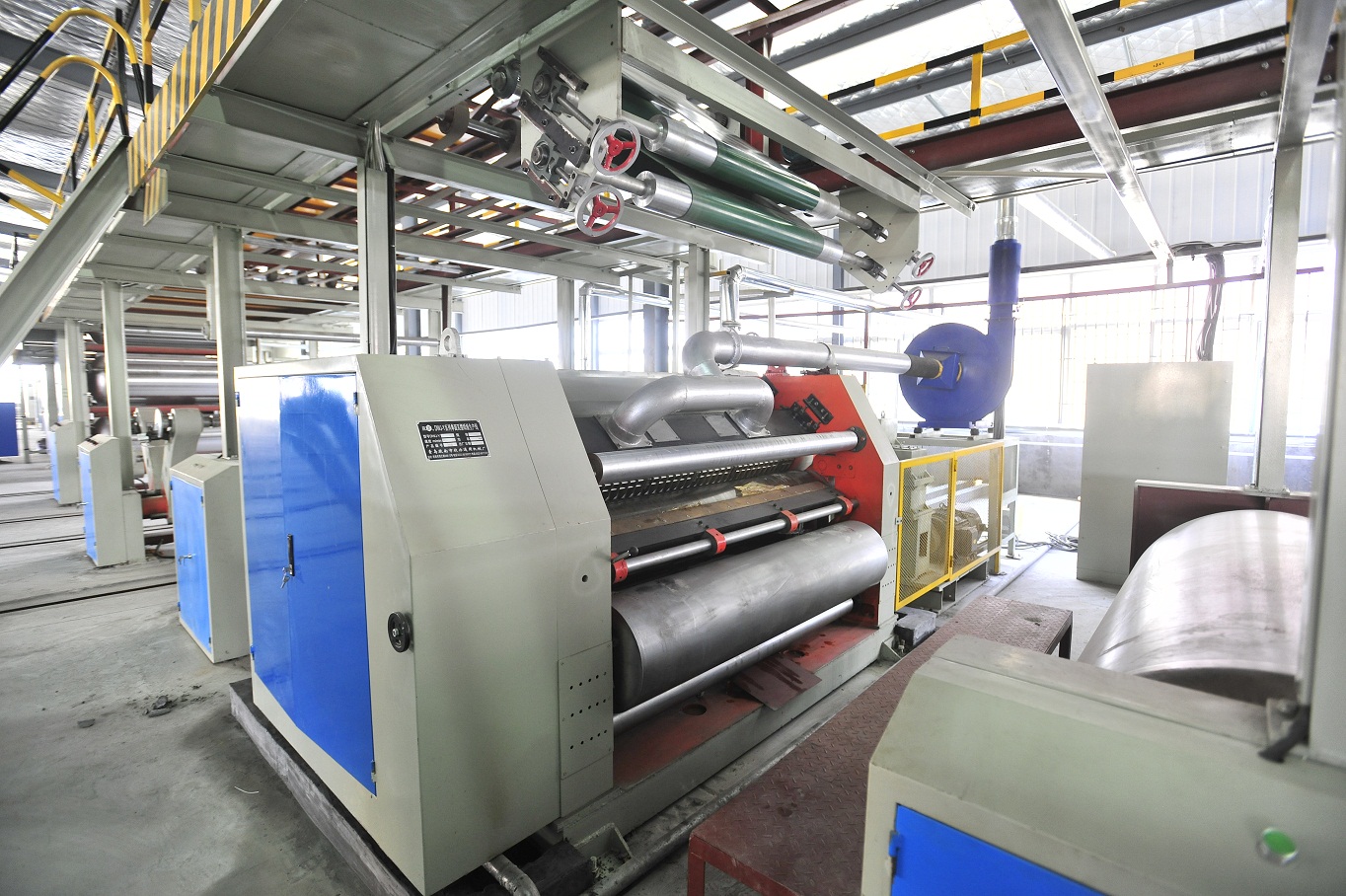

| 4 | Absorbing Type Single Facer --Corrugating roller:360mm. |
2 Sets |
| 5 | Double Overhead Bridge | 1 Set |
| 6 | Auto Splicer | 1 Set |

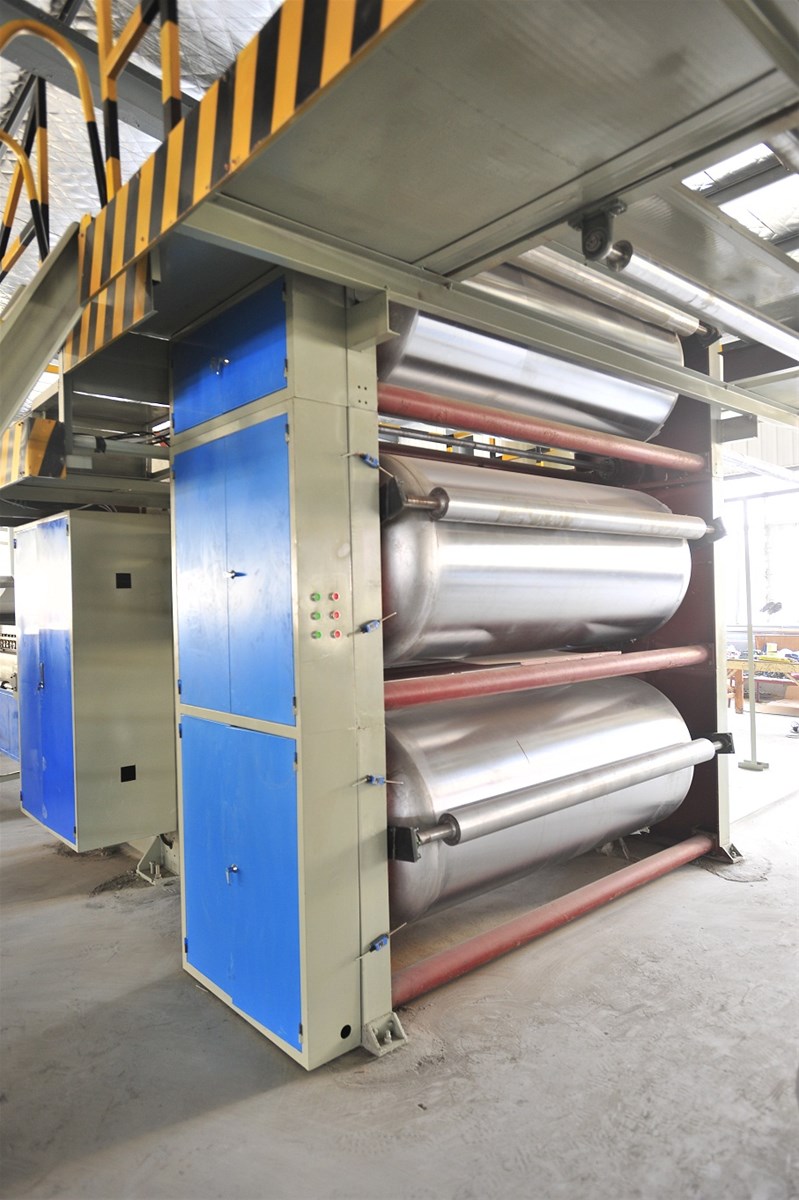

| 7 | Triplex Preheater (RG):900mm. | 1 Set |

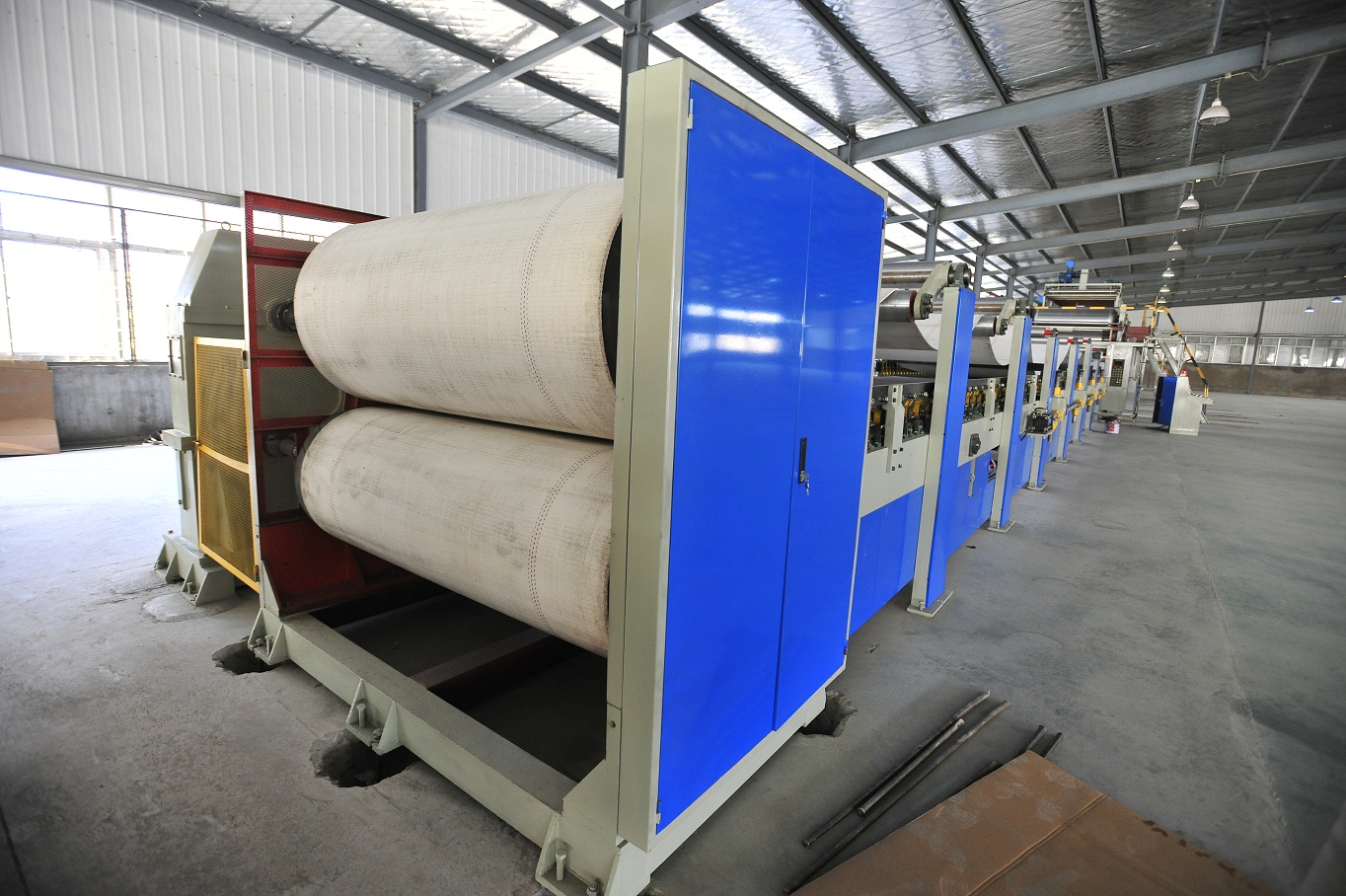

| 8 | Duplex Gluing Machine | 1 Set |
| 9 | Double Baker Facer --Including quality cotton belt 1set. --Including drive unit. --Including 17pcs*520mm heating plates. |
1 Set |
| 10 | Thin Blade Slitter Scorer --5 blades 8 scorers,alloy blades. --Automatic grinding knives. |
1 Set |
| 11 | NC Cutter --with full Germany Servo Computer system. --Keeping 99 order,non-stop changing the order. |
1 Set |
| 12 | Right Angle Type Stacker | 1 Set |
| 13 | Normal Glue Making System | 1 Set |
| 14 | Internal Steam Pipe System | 1 Set |
| 15 | Air Cooling System | 1 Set |
| 16 | Production Management System | 1 Set |
| 17 | Tension & Alignment System --Double vacuum tension control. --Electric paper way control. |
1 Set |
