China Made Custom Handling Power Dolly Transfer Steel Coil Material

Supply Ability: 70 Set(s) per Month
Shipping: Qingdao
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: China
Packaging Details: Tarp and wooden case, or packaged as per need

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Brand Name: PERFECT
  • Color: yellow/blue/orange/Customized
  • Application: Transport material and machine
  • Material: Steel
  • Model Number: BXC
  • Product Name: Handling power Dolly
  • Load capacity: 1-300 tons
  • Usage: Transfer heavy loads
  • Application Site: factory, construction, logistics
  • Feature: Explosion-proof
  • Running Speed: 0-25m/min
  • Running Distance: No limited
  • Rail gauge: 1435mm / customization

Specifications


China Made Custom Handling Power Dolly Transfer Steel Coil Material


1.Brief Introduction:

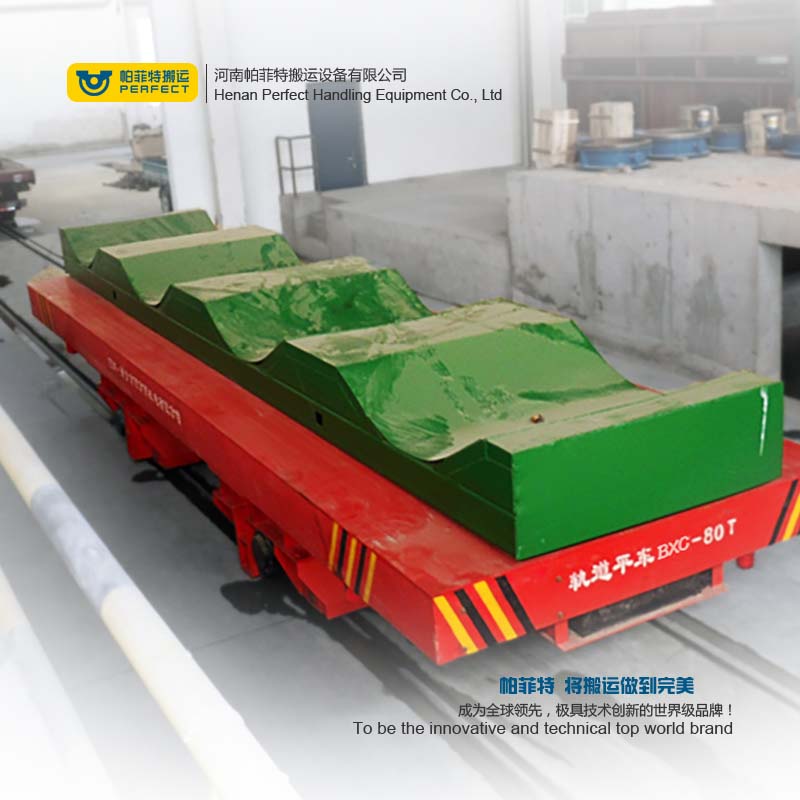

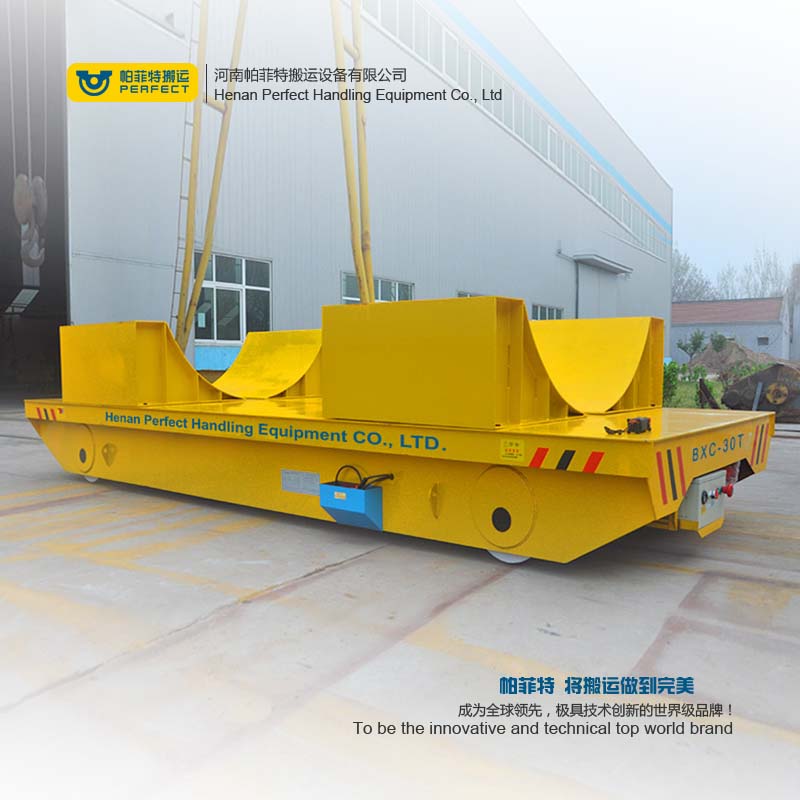

this China made custom handling power dolly is mounted with V-shape device to realize the oil drum carrier or the coil transfer. We choose the accumulator as it's main motive force and make It operate flexibly. It is possible to design and manufacture heavy loadCustom handling power dollyfor heavy industries. We adopt remote control to make Operate quickly and simply. Not only time and coast is saved, the working efficiency Is increased.


2.Product Usage:

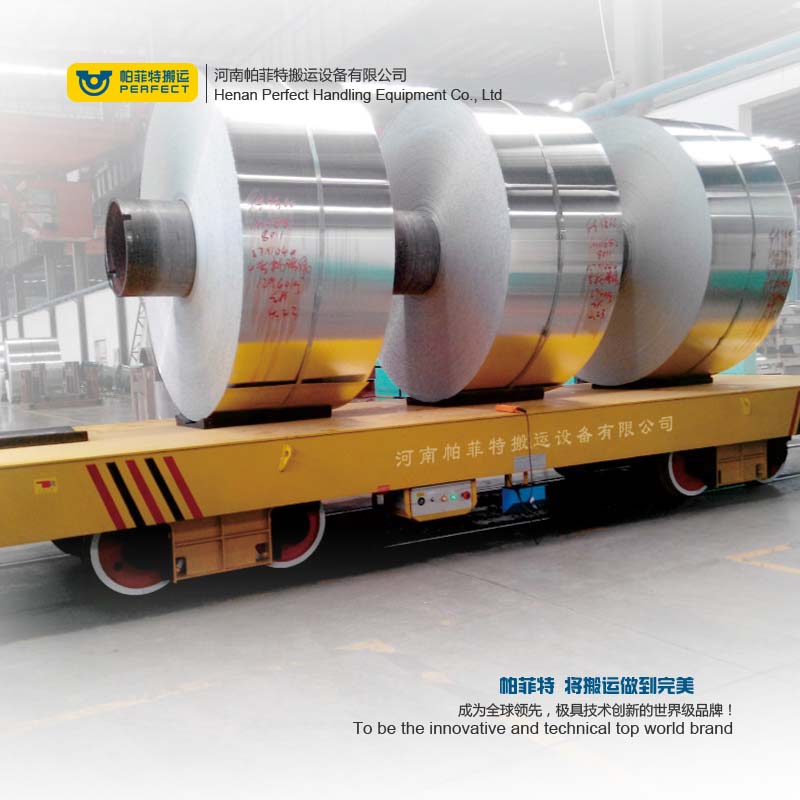

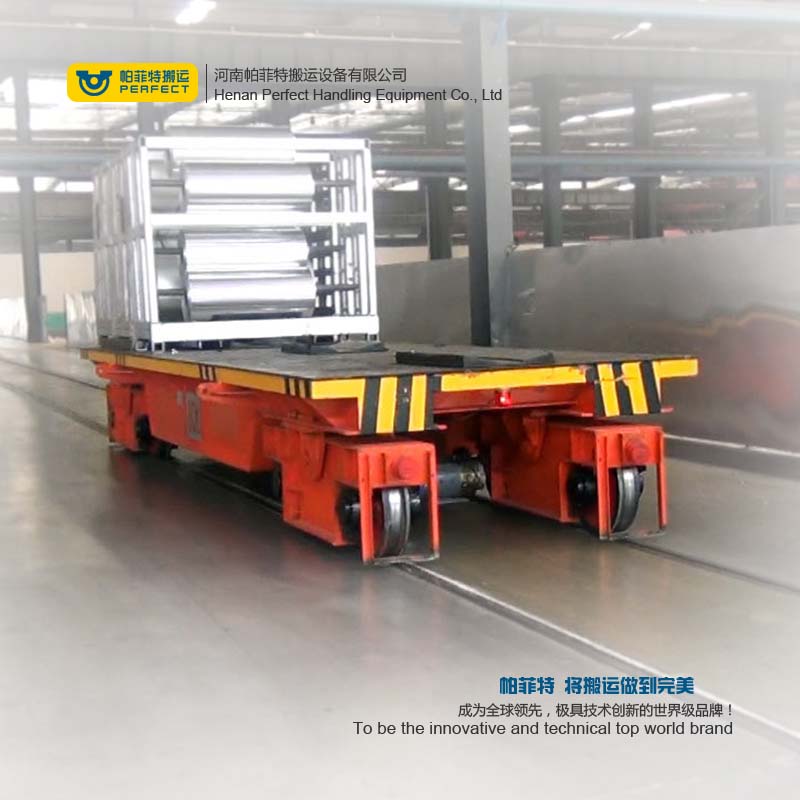

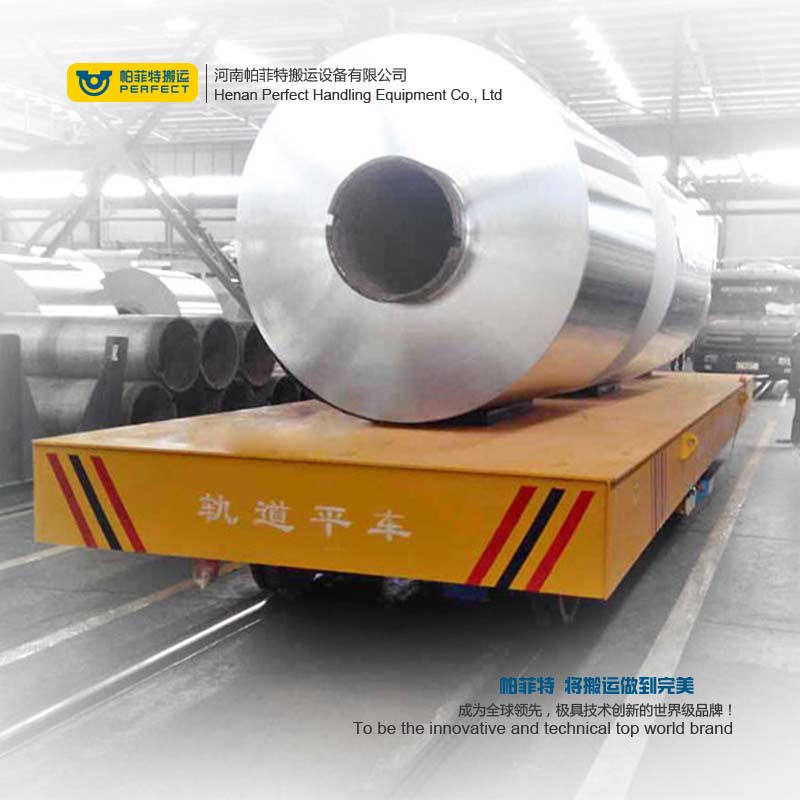

 Our custom handling power dolly is typically used for heavy materials or machines transfer and movement. Our power dolly can transfer steel, machine parts, coil, hot scrap ladle, container etc up to 300 tons.
China Made Custom Handling Power Dolly Transfer Steel Coil Material
China Made Custom Handling Power Dolly Transfer Steel Coil Material
3.Application Sites:

Flammability environment
High temperature condition
Coastal working area
Steel works
Freight depot
Port
Warehouse etc.
China Made Custom Handling Power Dolly Transfer Steel Coil Material


4.Techincal parameters:

Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size (mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

200

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(Km)

6.5

4.8

4

3.8

3.2

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100

5.Performance features:
Safe and easy for operation;
the carrying capacity up to 300 tons;
Adopt maintenace-free battery;
Steel box beam structure, not distorted;
6.about us:
Our factory is located in Xinxiang City, Henan province, where the products are manufactured and assembled. Our plant is Full service from the mechanical and control engineering to fabrication and Machining, we could offer all of those. with the spirit of quality, durability, Satisfaction, we have run our plant for over 15 years, and our products have Gotten CE, SGS, ISO certificates. with the high quality machine, skilled Workers and experience engineers, we will supply the best products for You.
