Quick Details
- Type: TFT
- Brand Name: Frida
- Interface Type: MCU
- Resolution: 480 x 854
- application: LCD
- Model Number: FRD50
- Screen Size: 5.0inch
- Display Mode: Normally Black
- Color Number: 262K
- Color Arrangement: TFT Active matrix
- Back Light: White LED 6*2
- Viewing Direction: All direction
- Driver IC: ILI9806X
Specifications
5.0 Inch TFT LCD Module /Screen/Display All viewing direction & 480*854 resolution
Product
Description

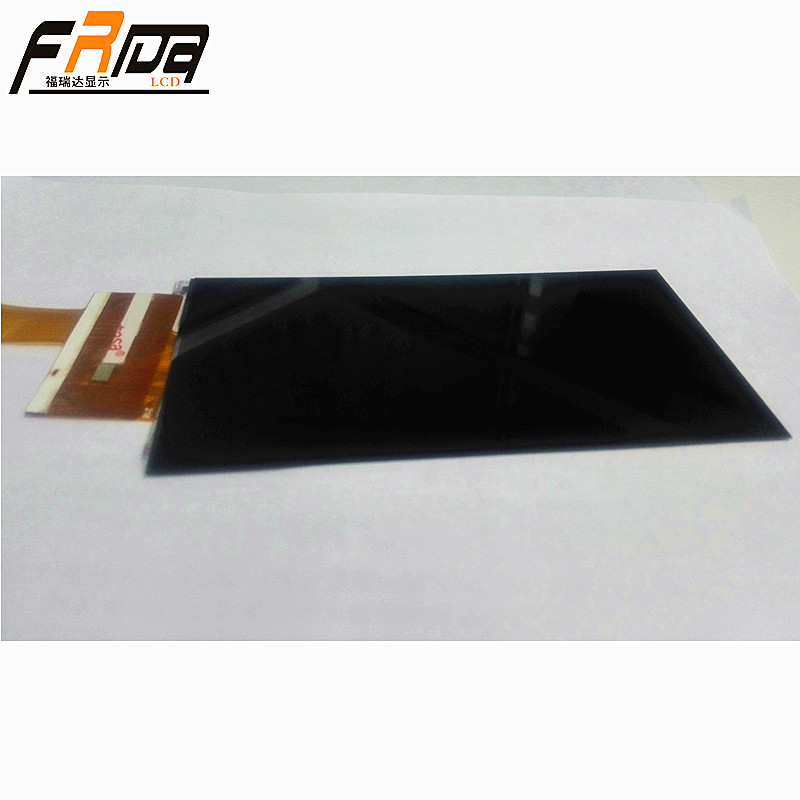

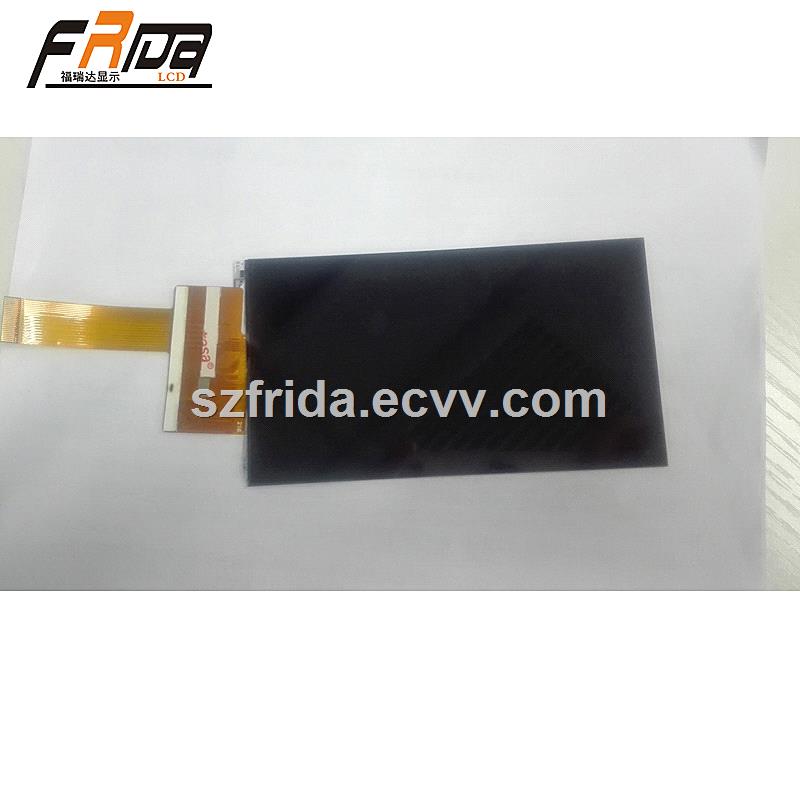

5.0 Inch TFT LCD Module /Screen/Display
No Item Specification 1 Display Mode Normally Black 2 Screen Size 5.0 inch (diagonal) 3 Resolution 480 *854 4 Color Number 262K 5 Color Arrangement TFT Active Matrix 6 Driver IC ILI9806X 7 Back Light White LED6*2 8 Viewing Direction All direction 9 Interface MCU 10 Surface Treatment UV Cut 11 Outline dimensions 66.15(W)*120.55(H)
*1.90(D) (LCM, not include FPC) 12 Active area 61.56(W) *109.52(H) 13 Dot size 0.12825(H) * 0.12825(V) 14 Operating temperature -10 ~60C 15 Storage temperature -20~70C 16 Power supply voltage (VCC) -0.3 ~ +4.0 (V) 17 Power supply voltage (IOVCC) -0.3 ~ +3.6 (V)
Application
Mobile phone; portable multimedia device, etc.
