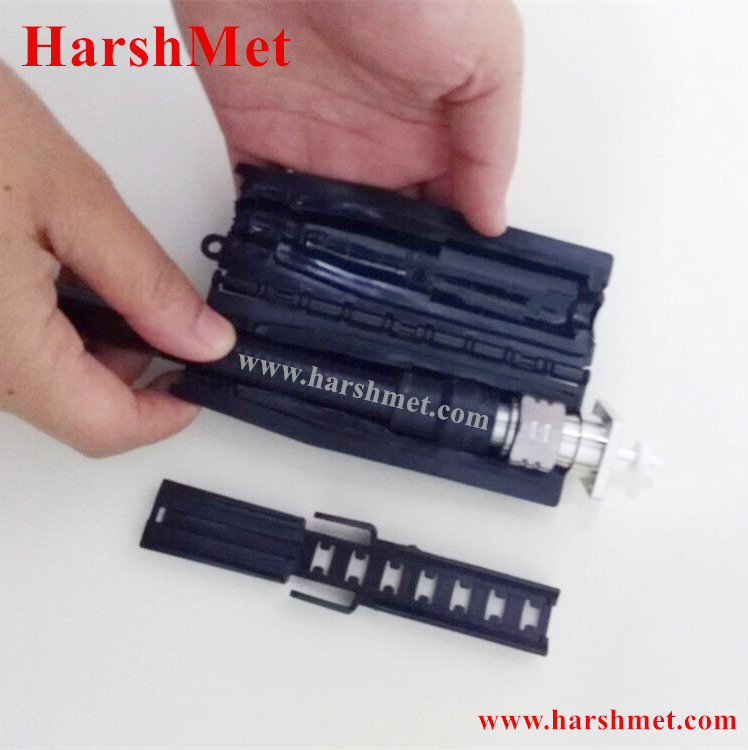

Gel Seal Weatherproofing Clamshell for 4.3-10 Connector

Supply Ability:	100,000 Piece(s) per Week
Shipping:	By Air/Sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Standard Carton Box

Quick Details

Brand Name: HarshMet
Material: PC
Sealing Class: IP68
Color: Black
Application: 4.3-10 MINI DIN Connector
Model Number: HGS-1043

Specifications

Description

HarshMet HGS series gel seal closure is a new kind of weatherproofing solutions designed to protect
RF connections at wireless communication towers, for instance, 3G or 4G, LTE cell sites where RF
Connections are getting denser than ever before and the traditional weatherproofing solutions, tapes and
Mastic are difficult to use in such crowded places. HGS series closures are re-enterable, reusable and tool-less,
Making it time-saving, cost-effective and installer-friendly weatherproofing solution for the mobile base stations
industry. HGS closures find typical applications in covering RF connections on both antennas and RRU
(Remote Radio Unit).
Sealing properties of the gel provide a reliable protection over a wide temperature range (-30C/+ 80C)
Wraparound and no disconnection of the connector
Quick and easy to install
Easy removable and re-usable
Gel material provides an effective barrier against ingress of water and other contaminant's - IP rating 68
No tape, no mastics or tools required for installation and removal

Specification

Part Number	Product Describtion
HGS-12A	1/2" jumper cable to antenna
HGS-12AS	1/2" jumper cable to antenna
HGS-1278	1/2" jumper cable to 7/8" feeder
HGS-12114	1/2" jumper cable to 1-1/4" feeder
HGS-12158	1/2" jumper cable to 1-5/8" feeder
HGS-78A	7/8" cable to antenna
HGS-78G	7/8" grounding kit
HGS-12TD-RRU	1/2" jumper to RRU
HGS-38TD-RRU	3/8" cable to RRU
