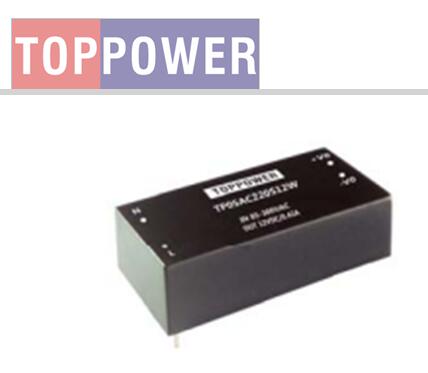

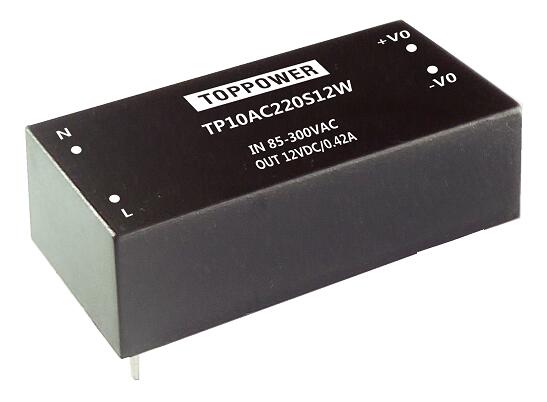

5W 4KVAC Isolation Wide Input AC/DC Converters TP05AC

Supply Ability:	5,000 Piece(s) per Month
Shipping:	DHL/FEDEX/TNT
Payment Terms:	T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	BOX

Quick Details

Type: AC/DC CONVERTERS
Output Voltage: VDC
Input Voltage: VAC
Output Type: Multiple
Brand Name: TOPPOWER
Output Current: MA
Output Frequency: HZ
Weight: 25G
Size: 50.8*25.4*15.16MM
Model Number: TP05AC
POWER: 5W
PACKAGE: DIP

Specifications

5W 4KVAC Isolation Wide Input AC/DC Converters

the rated output power of TP05AC series is 5W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 4000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.

Features:

Universal input voltage range	both for AC and DC input voltage	Wide input voltage: 4:1
Fixed switching frequency	Overheat protection	over current protection
Short circuit protection	RoHS compliant	Operating temperature:-25 to 70

Technical details:

Part Number	Input Voltage		Output
	Rated Range values		Voltage(VDC)	Current(A)
	(VAC)	(VDC)	Voltage(VDC)	Current(A)
TP05AC220S05W	85-300	110-370	5	1.0
TP05AC220S06W	85-300	110-370	6	0.83
TP05AC220S09W	85-300	110-370	9	0.55
TP05AC220S12W	85-300	110-370	12	0.42
TP05AC220S15W	85-300	110-370	15	0.33
TP05AC220S24W	85-300	110-370	24	0.23

Operation method of useage:

GENERAL CHARACTERISTICS
Parameter	Conditions	Min.	Typ.	Max.	Units
Isolation voltage	Input / Output 1 Minute, leakage current 2mA		4000		VAC
Input Frequency	10~55Hz	47		63	HZ
	Full input range	Auto recovery
Cooling	Free air convection
Case material	Flame-retardant plastic

INPUT CHARACTERISTICS
	Conditions	Min.	Typ.	Max.	Units
	VAC in module(85V-300V)	85	220	300	VAC
	VDC in module(110V-370V)	110	220	375	VDC
Package has included fuse) (wiring, rail type Package has included fuse) (wiring, Rail type Package has included Fuse)		Fuse must be connected, recommended 1A / 250V slow-off type

OUTPUT CHARACTERISTICS
	Conditions	Min.	Typ.	Max.	Units
				2		%
Line regulation	Full load		0.5			%
Load regulation	10%~100% load		1			%
Standby power consumption				0.3		W
over current protection	110%Io, self-recovery
over voltage protection	over-voltage shutdown Output
Ripple and noise	20MHz bandwidth		50	100		mv
Short-circuit protection	Hiccup-type, sustainable short-circuit, self-recovery 120 %
Switch frequency			140			Hz
Power-down hold time	110VAC		12			ms
	230VAC		80			ms

5W 4KVAC Isolation Wide Input ACDC Converters TP05AC

Package:
BOX
