>Products Catalog > tft lcd > TS Display 3.5 Inch TFT LCD 320*240 with Resistive Touch & SSD2119 IC-TST035MLQZ-06P

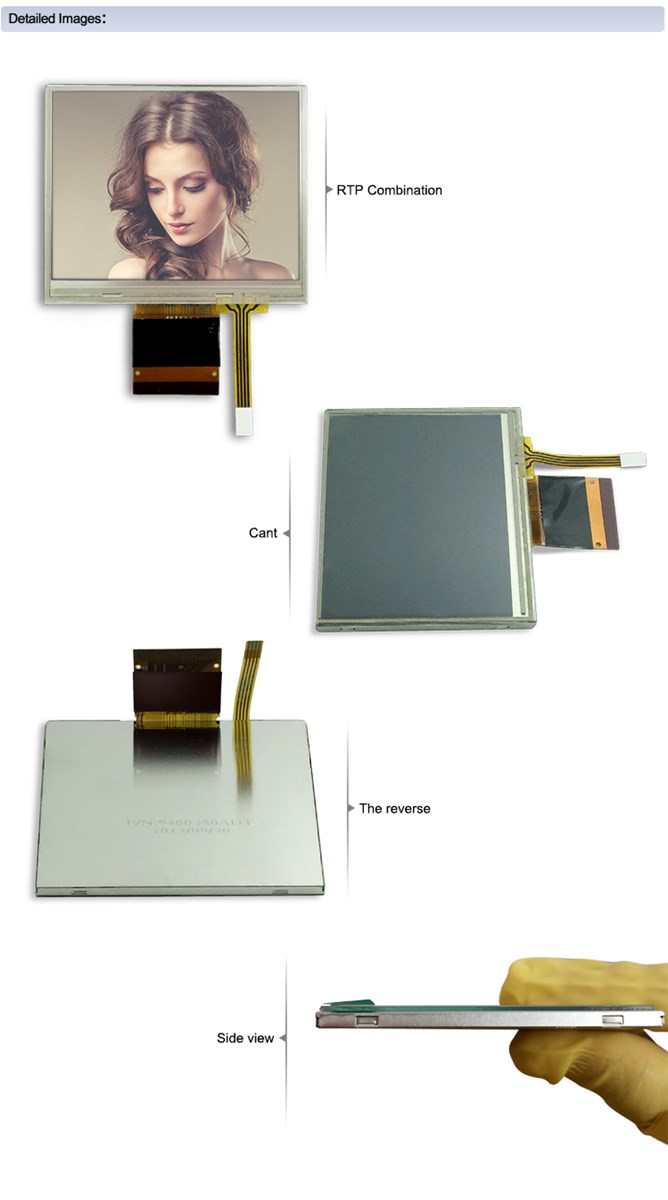

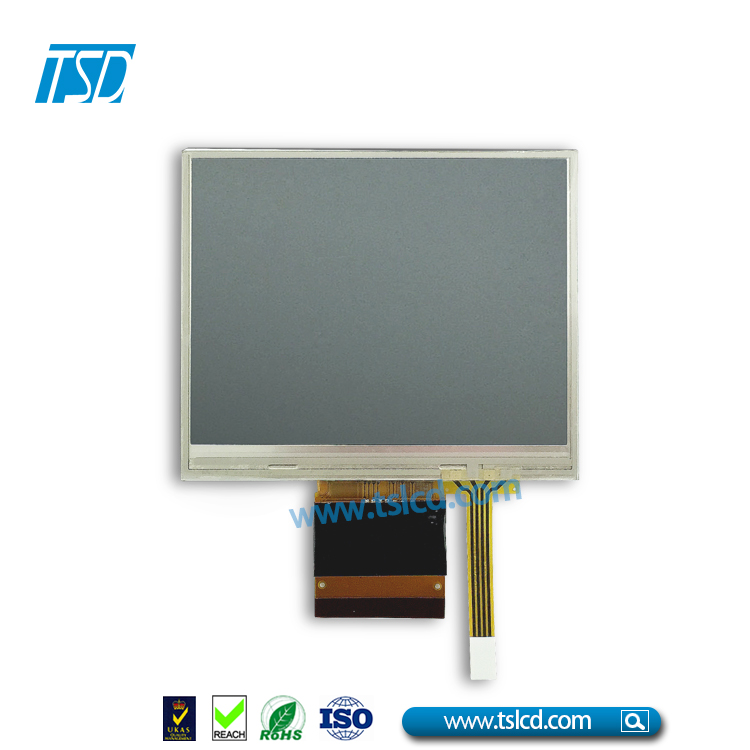

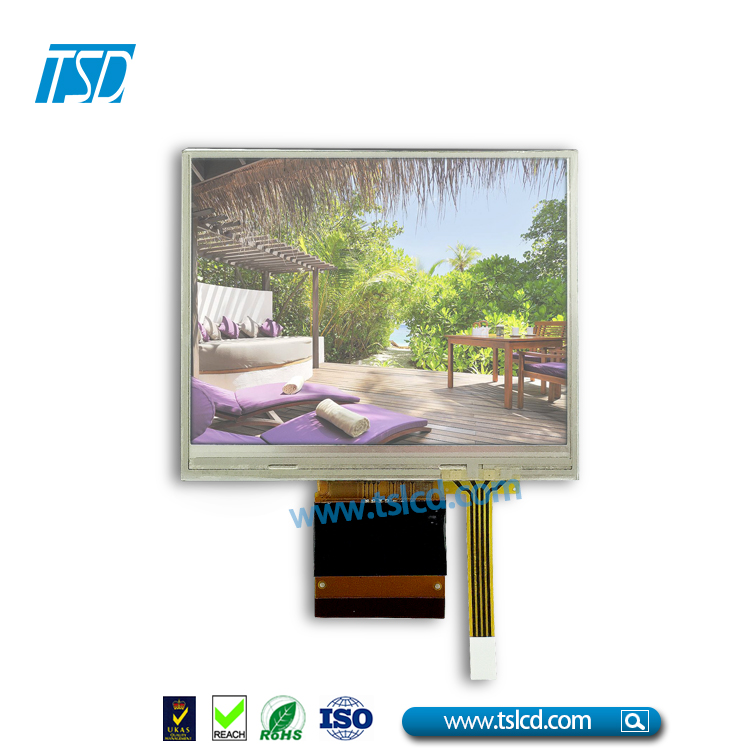

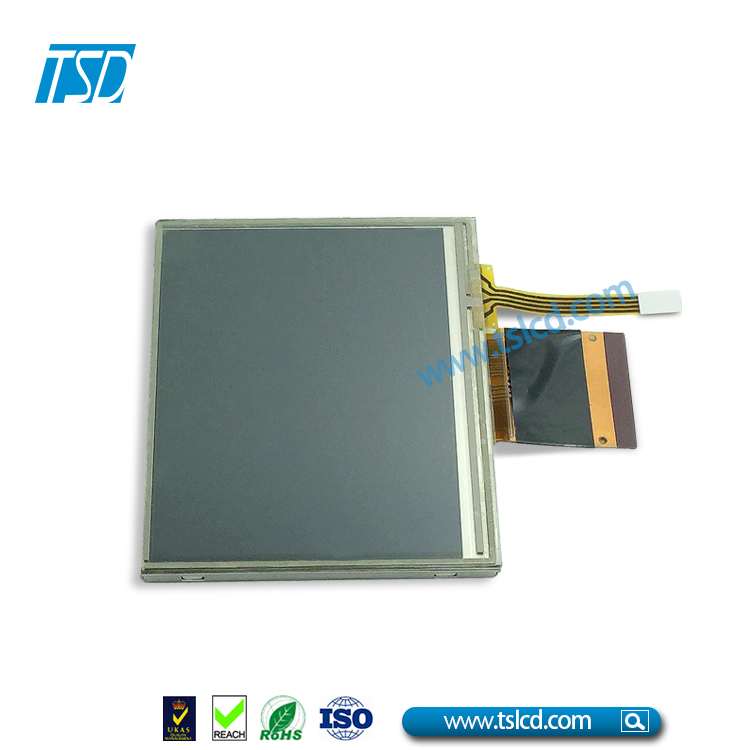

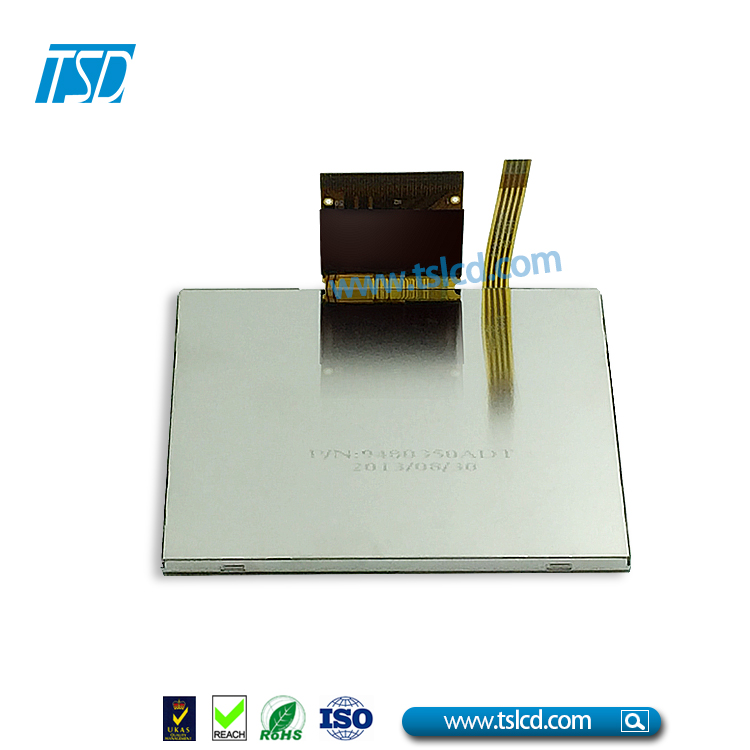

TS Display 3.5 Inch TFT LCD 320*240 with Resistive Touch & SSD2119 IC-TST035MLQZ-06P
| Supply Ability: | 15,000,000 Piece(s) per Month |
|---|---|
| Shipping: | DHL,UPS,Fedex,air freight,sea freight |
| Payment Terms: | T/T, Other, paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 512pcs per cartons |
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: SPI/6800/8080 MCU interface
- Resolution: 320*240
- application: Industrial/Medical Application
- Model Number: TST035MLQZ-06P
- Size: 3.5 inch
- Resolution: 320*240
- IC: SSD2119
- Touch panel: RTP/CTP available
- Module dimension: 76.90*63.90*4.3
- Active area: 70.08*52.56
- Viewing angle: 12H
- colors: 262k
- Backlight: 6LEDS
Specifications
TS display 3.5 inch TFT LCD 320*240 with Resistive touch & SSD2119 IC-TST035MLQZ-06P
Specifications:
| Item | Specification |
| LCD type | A-si, 3.5" TFT LCD display,positive |
| Display type | 3.5" TFT, normal white |
| Outline Dimension(mm) | 76.90*63.90*4.3 |
| A.A.(mm) | 70.08x52.56 |
| Driver IC | SSD2119 |
| Resolution(dots)_ | 320*RGB*240 |
| Viewing Direction | 12H |
| Operating temperature(C) | -20-70 |
| Storage temperature(C) | -30-80 |
| Number of Pixel(pixels) | 240(H)x 3RGB x 2400(V) |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Surface treatment | Antiglare, Hard-Coating(3H) |
| Weight(g) | TBD |
| Backlight | 6 LEDs, 20mA |
| Weight(g) | TBD |
| Module lifetime(Hours) | 50,000-100,000 |
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.44", 1.77", 2", 2.4", 2.8", 3", 3.2", 3.5",
4.3", 5", 5.6", 5.7", 7", 8", 10.1", 12.1", 15".
2. New products: 3.5", 4.3", 5.0", 5.7" and 7" TFT Functional Module, transfer RGB to MCU interface.
3. 2.8", 3.5" transflective/ sun readable TFT LCD.
4. 3.5", 5", 7" TFT LCD with capacitive touch panel.
LCD Application:
OEM and customization welcome!
