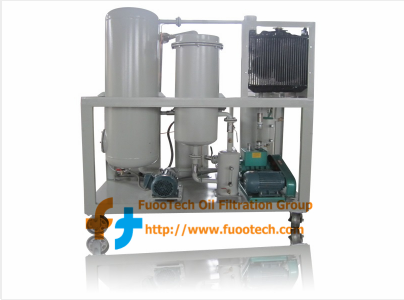

Series HOC Hydraulic Oil Cleaning & Filtration System

FOB Reference Price: $ 1
Wholesale: ≥1 Set(s)
Supply Ability: 1,000 Set(s) per Month
Shipping: Shanghai, Guangzhou, any other ports in China
Payment Terms: L/C, T/T, Western Union
Update Time: 2018/7/31
Export Markets: North America, South America, Southeast Asia, Africa, Mid East
Place of Origin: Chongqing in China
Packaging Details: In standard Exportation Plywood Case

Quick Details

  • Type: Oil Purifier
  • Brand Name: FuooTech
  • Capacity: 1000 units per month
  • Negative Pressure: 1000 units per month
  • Machine name: HOC Hydraulic Oil Cleaning & Filtration System
  • Model Number: HOC
  • Moisture: 80 PPM
  • Gas/Air Content: 0.1%
  • Suspended Particles: 3 micron
  • Demulsification: New oil<15min, running oil<30min
  • Cleanliness:

Specifications

Series HOC Hydraulic Oil Cleaning Filtration System
Generally, hydraulic oil is to be maintained at very high quality of Purification. the Oil often having large sizes of particles is passed through coarse type filter, to trap the large sized particles. Having taken care of micronic and sub-micronic particles, it is further finely cleaned by electro-statically, operated brought to the international standards.
Our HOC Series is used for cleaning and filtering the various types of hydraulic oil and other industrial lube oils such as gear oil, compressor oil, coolant oil, etc.. Used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.
Can effectively purify hydraulic oils at grade ISO VG 46, 68, 100, etc by reducing the water content from 2000 ppm downto 5 ppm and separates (removes) the free water, sludge, gas content and carbon from Lube oil & hydraulic oil.
Oil Result after Purification
Moisture   (water content)
80 PPM
 (remove 100% of free water and 99.5%of   dissolved/emulsified water)
Gas/Air Content
0.1%
Suspended Particles   (Filtration precision)
3 micron
Demulsification
New oil15min, running oil30min
Cleanliness
NAS 1638-Grade 5
the features of
  1. the machine adopt deeply and precisely FH rectangular filtering system and highly polymeric adsorbing material filter. So the machine has strong ability to remove the particles and impurities.
  2. Adopt the high quality filter materials, which have a good function in anti-corrosive, thermo stable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
  3. the combination of coalescing separation filter and vacuum dehydration system which dewater effectively and thoroughly.
  4. the unique degas and dewater technology: Using the Duplex 3D Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology. It can remove the free and dissolved water from the oil thoroughly.
  5. Strong capability of breaking emulsification.
  6. Advanced dielectric condensation device
  7. Advanced temperature controlling system controls the oil's temperature and heater's working automatically
  8. High quality pressure controller keeps the whole operation safely.
  9. Able to drain water on line through the water receiver device. It is easy to control this machine.
  10. Adopt Double-infrared fluid level auto-control systems which can control oil inlet and oil outlet quantity automatically.
  11. Adopt a trinity of interlocked preventive device to keep heater, oil pump and filters safe and reliable.
  12. Low maintenance cost and time

Technical specifications
Item
Unit
HOC-10
HOC-20
HOC-30
HOC-50
HOC-100
HOC-150
HOC-200
HOC-300
Flow rate
L/H
600
1200
1800
3000
6000
9000
12000
18000
Vacuum degree
Mpa
-0.06 ~ - 0.095
Working pressure
Mpa
0.4
Temperature Control Range
0 ~ 100
Operation   Temperature
50 ~ 70
Power supply
380 VAC, 50 Hz, 3   Phase (or as per required)
Working noise
DB (A)
65 ~ 90
Electric heating   power
KW
18
24
26
30
48
60
96
135
Total electric   power
KW
19.3
25.3
27.6
32.6
56
69
106.5
147
Inlet (outlet)   caliber
mm
25
25
25
32
42
50
50
60
Dimension
 (L W H)
mm
1190 x1000
X 1400
1550
X1050   x1600
1600
x1050
x1650
1600
X 1150
x1700
1750 x1250
X 1800
1900
x1600
x1950
1900
x1700
x2000
2100
x1700
x2100
Weight
Kg
450
550
600
750
850
1000
1200
1500
  Note:   1. the dimension and weight will be changed with changing of technical specs.
              2. All the specs can be customized according to client's requirements.
