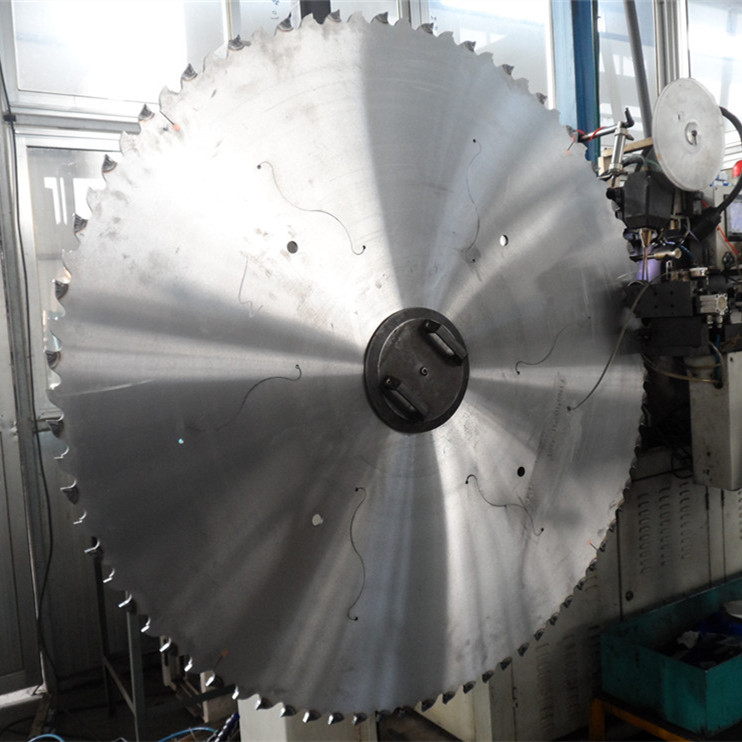

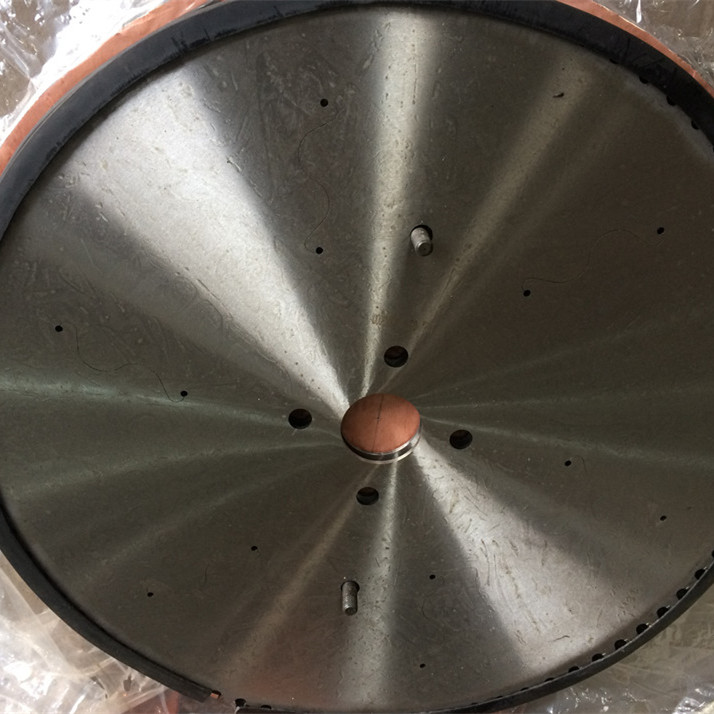

Thick Wall Steel Tube & Pipe Cold Cut Tungsten Carbide Tipped Saw Blade

Supply Ability: 100 Piece(s) per Month
Shipping: by sea or by air
Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China

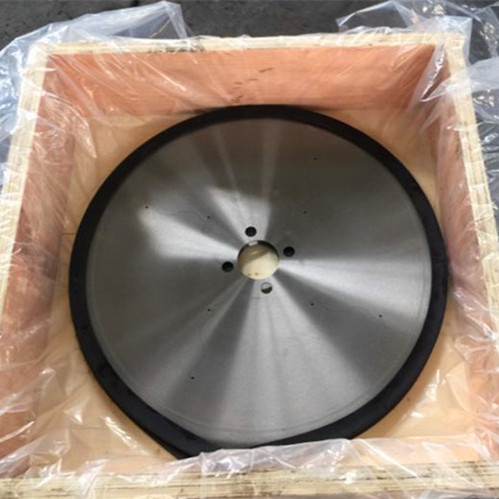

Packaging Details: wooden case

Quick Details

  • Size: 1600mm
  • Finishing: Ti-coated
  • Blade Material: Tungsten Carbide Steel
  • Brand Name: EM
  • Material: 8CrV
  • cutting material: tube and pipe

Specifications

Thick wall steel tube and pipe cold cut tungsten carbide tipped saw blade


Description:

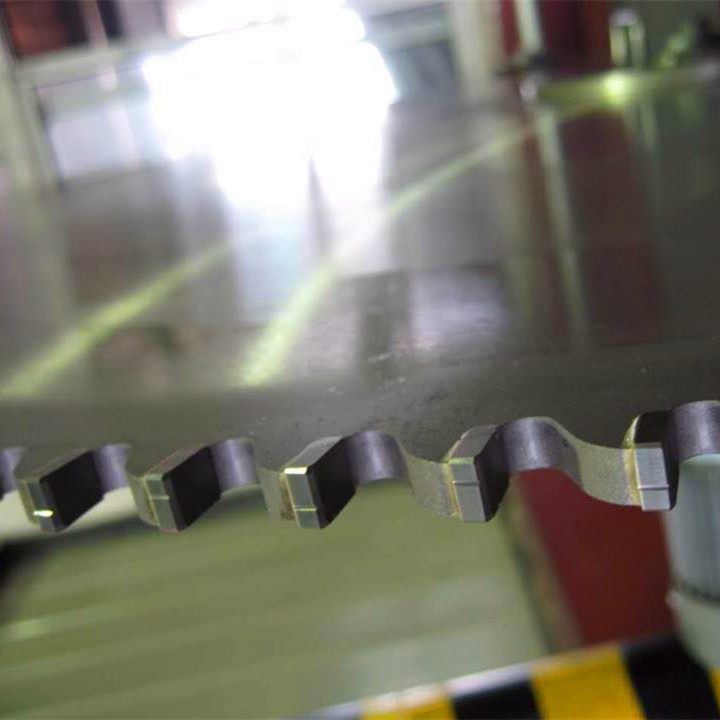

Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade, the circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes, To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLMER grinding machine grinding out the required tooth profile, According to the different cutting parts, it is generally divided into steel tube cutting, steel tube row cutting, rail cutting, aluminum round bar cutting, aluminum profile cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.





Technical details:

Carbide Tipped circular Saw Blade (TCT) Used for Round Steel Bar

It is mainly used for cutting round steel bar in the cold condition; the cutting diameter can reach 450mm. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.

Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Tickness Cutting width Number of Teeth
540 60 22 120 5.0 6.5 60,80
830 100 25 200 5.5 7.0 70,100
965 100 30 250 6.5 8.0 50,60
1080 100 30 250 6.5 8.0 60,80
1250 100 30 250 7.0 8.5 50,80
1500 100 30 250 8.0 9.5 50,80

Carbide Tipped Circular Saw Blade (TCT) Used for Seamless Steel Tube

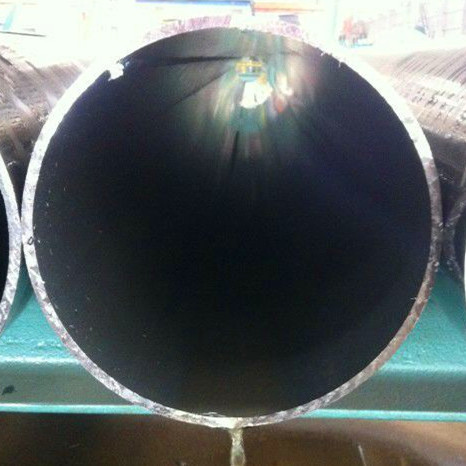

It is mainly used for scaling-off cutting various kinds of tubes in the cooled and straigtened condition after hot rolling by the seamless steel tube factory. the saw blade can cut several steel tubes on a row at a time. It can be used with various kinds of cutting machines in and abroad.

Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
800 80 25 180 5.0 6.5 80,100
1020 100 27 200 5.5 7.0 100,120
1120 100 30 250 5.5 7.0 130,150
1250 100 30 250 5.5 7.0 150,160
1400 100 30 250 6.5 8.0 160,180
1680 100 30 250 8.0 9.5 160,180



Carbide-tipped Circular Saw Blade (TCT) for Steel Tube Profiling Cutting Machines

the saw blade is made of special material and process, and it can be used for cutting large ERW straight welded tube and seamless steel tube. the cutting diameter can reach 630mm, and the thickness of the tubes can reach 50mm. It has a lot of advantages, such as good cutting quality, energy-saving, safety, noise-reducing, etc. It is an advanced cutting tool which can be used with various kinds of steel tube profiling cutting machines in and abroad.



Diameter Bore Hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
300 50 15 160 2.2 2.8 50,60
355 80 18 160 2.5 3.3 64,72
380 115 20 200 3.0 4.0 52,70
400 115 20 200 3.3 4.3 52,80
450 120 20 225 3.8 4.8 60,80
500 120 20 250 4.0 5.0 60,80



Carbide-Tipped circular Saw Blade (TCT) for the Bar Material

It is mainly used for cutting aluminum bar materials with different sections for Aluminum processing factory. the cutting diameter can reach 700mm, and the thickness of the flat aluminum bar can reach 700mm.

Diameter Bore hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
700 80 18 180 4.5 6.5 64,72
810 80 20 200 5.0 7.0 60,72
1000 100 20 220 5.5 7.5 72,80
1200 100 22 250 6.5 8.5 80,100
1600 200 25 300 8.5 10.5 72,80
1800 240 30 350 10.5 14.5 60,72
2000 240 30 350 11.0 15.0 70,100
2200 240 30 350 11.5 15.5 90,120







Carbide-Tipped Circular Saw Blade (TCT) for Aluminum Sections

It is mainly used for scaling-off cutting the aluminum sections. It can be used with various kinds of extruding production lines whose capability are less than 12.5 thousand tons. the cutting diameter can reach 700mm.

Diameter Bore hole Diameter of Pin Hole PCD of Pin Holes Thickness Cutting width Number of Teeth
350 30 12 80 2.2 3.2 100,120
500 32 12 100 2.8 3.8 100,128
610 50 15 120 4.2 5.2 90,120
800 80 15 150 5.5 7.0 100,120
1000 100 18 200 6.5 8.0 120,160
1250 100 22 250 6.5 8.0 180,200
1400 100 22 250 7.0 8.5 200,220
1560 120 25 280 8.0 9.5 220,240
1800 150 30 300 8.5 10.0 230,250






Our Factory:

Laser cutting
Mill grinding
CNC grinding
Tension testing

 Thick wall steel tube and pipe cold cut tungsten carbide tipped saw blade
