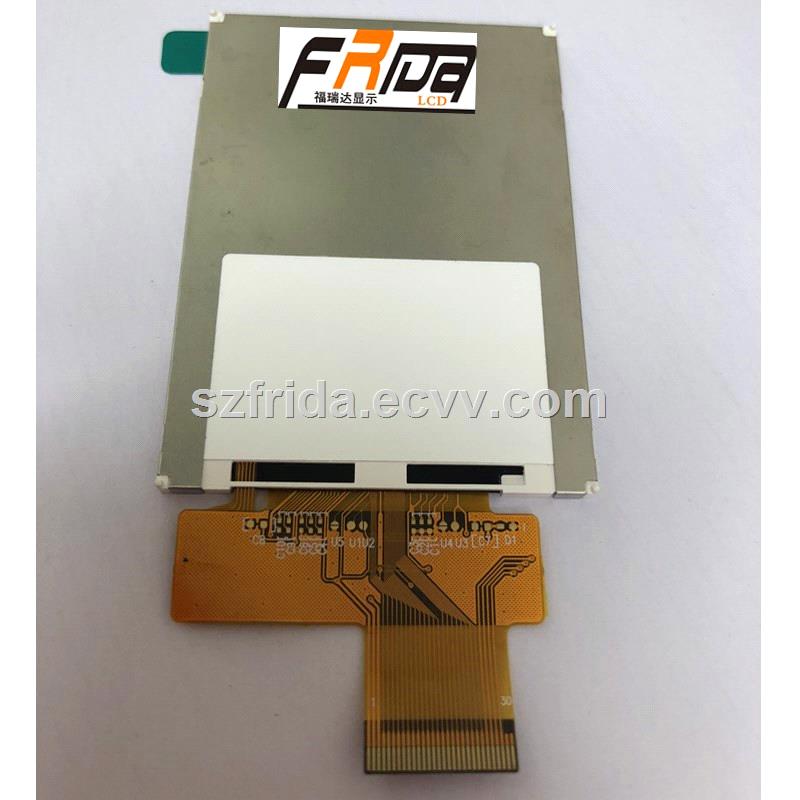

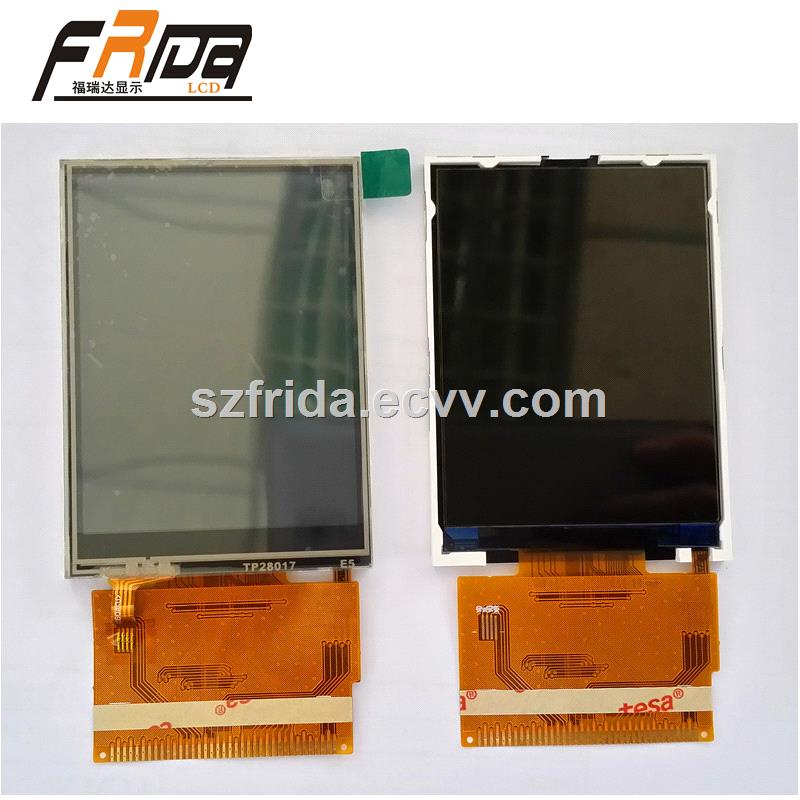

2.8inch TFT LCD Module Screen Display with MCU-16bit
| Supply Ability: | 60,000 Piece(s) per Month |
|---|---|
| Shipping: | By sea / By air |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 500PCS/Carton |
Quick Details
- Type: TFT
- Brand Name: Frida
- Interface Type: MCU-16bit
- Resolution: 240*320
- application: LCD
- Model Number: FRD28037003-A
- Screen Size: 2.8inch
- Display Mode: Normally White
- Color Number: 262K
- Color Arrangement: TFT Active matrix
- Back Light: White LED*4
- Viewing Direction: 12:00
- Driver IC: ILI9341
Specifications
2.8inch TFT LCD ModuleScreen Display with MCU-16bit
Product Description:
No |
Item |
Specification |
1 |
Display Mode |
Normally White |
2 |
Screen Size |
2.8inch (diagonal) |
3 |
Resolution |
240*RGB*320 |
4 |
Color Number |
262K |
5 |
Color Arrangement |
TFT ActiveMatrix |
6 |
Driver IC |
ILI9341 |
7 |
Back Light |
White LED*4 |
8 |
Viewing Direction |
12:00 O'clock |
9 |
Interface |
MCU-16bit |
10 |
Surface Treatment |
UV Cut |
11 |
Outline dimensions |
50.0(W)*69.20(H)*2.3(D) (LCM, not include FPC) |
12 |
Active area |
43.2(W) *57.6(H) |
13 |
Dot size |
0.153(H)* 0.153(V) |
14 |
Operating temperature |
-10 ~60C |
15 |
Storage Temperature |
-20~70C |
16 |
Humidity |
80% max. RH for Ta 40< 50% RH for 40< Ta Maximum operating temperature |
17 |
Power supply voltage (VCC) |
-0.3 ~ +4.0 (V) |
18 |
Power supply voltage (IOVCC) |
-0.3 ~ +3.6 (V) |
