More Super Hard Products Co., Ltd.
China Manufacturer with main products: Vitrified Bond Tools, Resin Bond Tools, Metal Bond Tools, Electroplated Diamond/CBN Tools |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Size: 120
- Type: Abrasive Disc
- Brand Name: more super
- Material: tsp
- Grit: 100
Specifications
Specifications

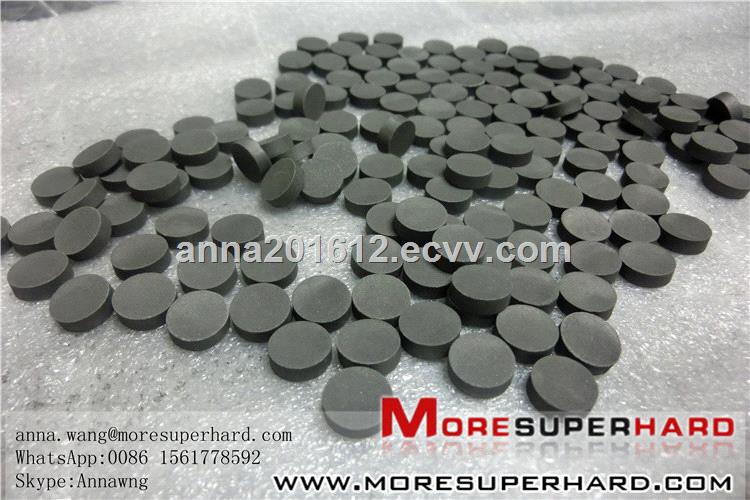

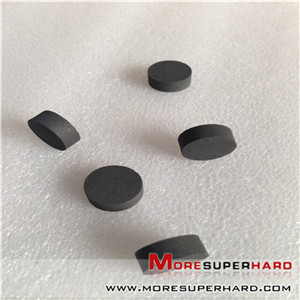

Polycrystalline diamond PCD for gemstone polishing
1.Sharper and durable
2.Competitive price
3.Good service
Polycrystalline diamond PCD for gemstone polishing or grinding is a super hard material made of fine grain diamonds(0.1-100m).PCDs strong vitality comes from its
characters as followed:
1.the grains arranged disorderly, with no cleavage face, no direction and uniform hardness.
2.with high hardness, high duration, high strength and high impact resistance.
3.PCD can be directly made into a particular shape.
4.PCD's function can be forecasted to suitable for its special use.
Used for Drilling, Geological Prospecting, Drilling Bits Calibre Insert, the Crystal with High Hardness, Vickers Hardness Usually In 105N X = 1.20 Proposed. and Was Compared, and Cost/Natural Diamond and Very Cheap, Wear-Resisting Degree Is High, the Shape of Triangular, Square, Rectangle, Cylindrical, Arc Ends, Its Diverse and Drilling Tools and Applicable To Various Geological Requirements. the Engineers of Our Company Can Control the Wearability of Polycrystalline Diamond Accurately for Different Industrial Purposes. with Different Batch Formulas and Technologies; HDPC Has Made PCD Well Adopted by Oil Exploiters and Drill Manufacturer World Widely.
| Polycrystalline Diamond TSP Series |
| Type: D H (Mm) |
| 1 1.2 120 |
| 1.2 3.5 120 |
| 1.5 3.5 180 |
| 1.5 4 180 |
| 1.8 4 180 |
| 2 4 120 |
| 2 4 180 |
| 2.7 4 120 |
| 3 3 180 |
| 3 5 120 |
| 3 5 180 |
| 3 6 120 |
| 4 4 180 |
| 4 5 90 |
| 4 5 180 |
| 4 6 120 |
| 5 4 180 |
| 5 5 120 |
| 5 5 180 |
| 5.3 2.1 180 |
| 6 3 180 |
| 6 4 180 |
| 6 6 120 |
| 6 6 180 |
| 6 8 120 |
| 6 8 180 |
| 6 12 120 |
| 6 12 180 |
| 6.3 3.3 180 |
| 8 2.6 180 |

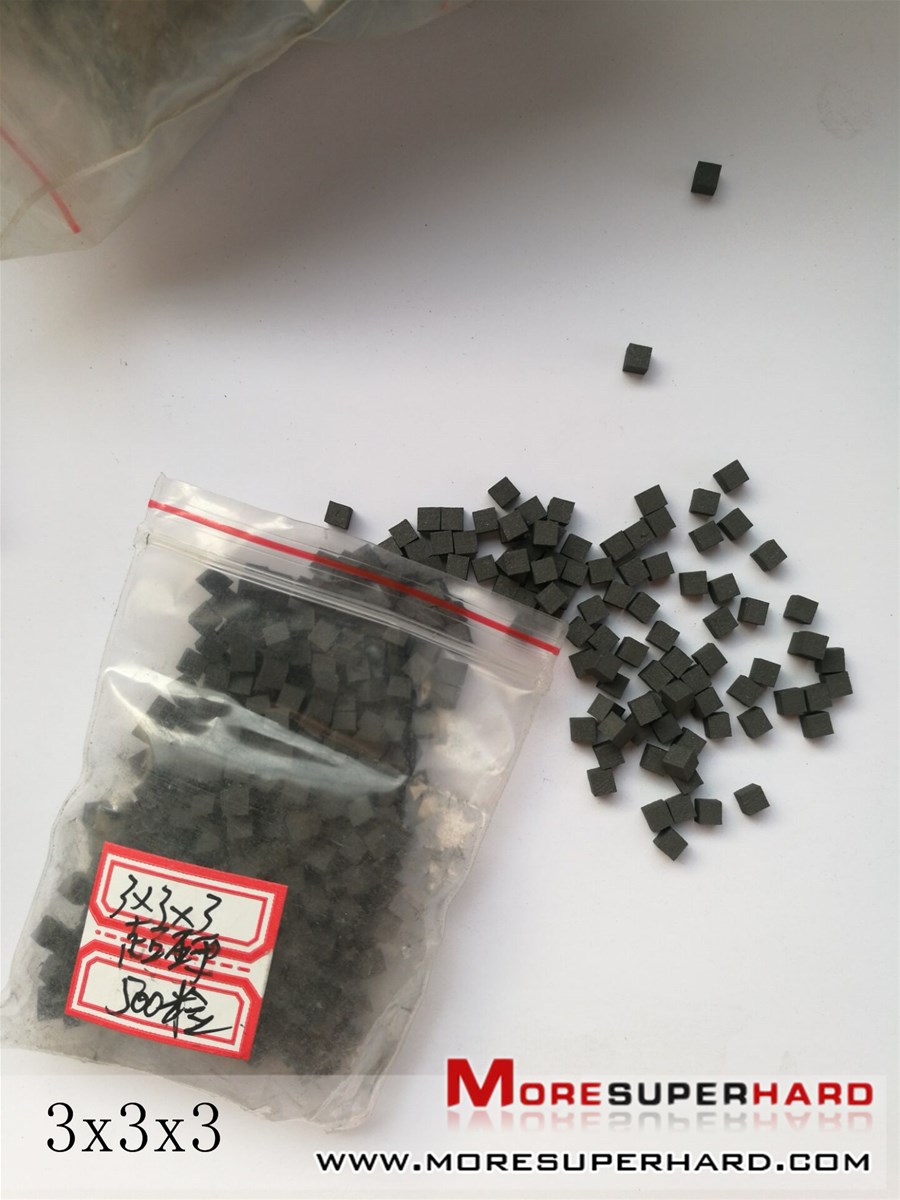

| Polycrystalline Diamond Square and Triangular |
| Type: D H T (Mm) |
| 1.5 1.5 1.5 |
| 1.5 1.5 3 |
| 1.5 1.5 5 |
| 2 2 2 |
| 2.5 2.5 2.5 |
| 2.5 2.5 5 |
| 3 3 3 |
| 3 3 4 |
| 3 3 6 |
| 3 3 5 |
| 4 4 2.5 |
| 4 4 4 |
| 4 4 6 |
| 4 4 8 |
| 5 5 5 |
| 5 5 8 |
| 4 4 4 2.6 |
| 5 5 5 3 |
| 6 6 6 3.5 |
| 6 6 6 4 |
| 6 6 6 4.5 |
| 6 6 6 5 |
| 7 7 7 2 |
| 3 3 10 |
