>Products Catalog > RFID Core Modules > OEM LF Hitag 1&S Tag R/W Module, ISO11784/11785, FDX-B Standard

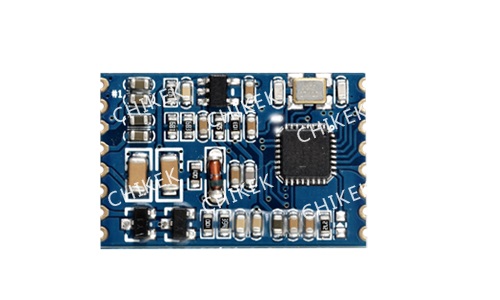

OEM LF Hitag 1&S Tag R/W Module, ISO11784/11785, FDX-B Standard
| Supply Ability: | 50,000 Set(s) per Month |
|---|---|
| Shipping: | Express |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
Quick Details
- Brand Name: CHIKEK
- Card type: Hitag 1, HitagS64/256/2048,EM
- Communication: UART TTL
- Dimension: 25mmx16.5mmx2.8mm (LxWxH)
- Frequency: 125khz& 134.2khz
- Model Number: CHK103MT
Specifications
Key Features:
- Frequency available with 125KHz, 134.2KHz
- 3.3V ~ 5V DC Power supply, UART-TTL interface
- Compatible withISO11784,11785 Standard, support FDX-B
- Support to Read/write Hitag 1 Tag, Hitag S64/ 256/2048 animal tag,
- ReadUID of EM4100/4200, TK4100 cards;
- Available to format Hitag S series card to ID card or FDX-B animal ear tags format;
- External antenna, reading range up to 5~7 cm
- External LED&BUZ available( external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V~5V |
Power consumption |
< 45mA |
OPeration frequency |
125KHz &134.2KHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
EXternal,Stamp-hole |
Reading range |
50- 100Mm (depends on tag and antenna size) |
Mechanical Specifications |
|

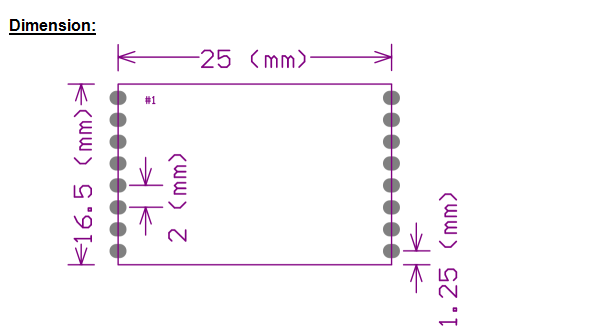

Dimension |
25mmx16.5mmx2.8mm (LxWxH) |
Weight |
3G |
MAterial |
FR-4, Blue |
Model |
CHK103MT |
Environmental Conditions |
|
Operation temperature |
-20C+80C |
Storage temperature |
-40C+85C |
Humidity |
Relative humidity5%95% |
Supported Standard/ Tags |
|
|
EM4100,EM4200, TK4100 |
ISO/IEC 11784/11785 |
Hitag 1,HitagS 64, HitagS 256, HitagS 2048 |
SDK information |
|
Demo software |
Windows, C# program language |
Files |
Comprotocol document API document User Manual Demo.Exe |
