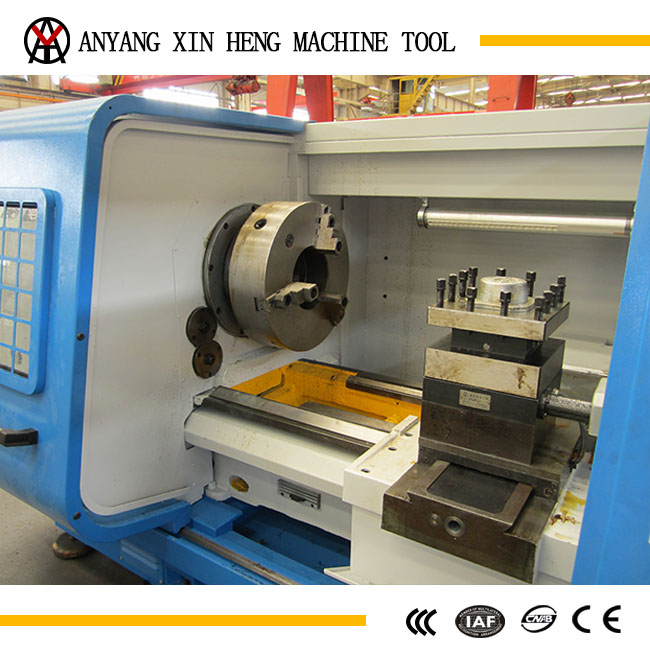

Brand New QK1212 External Dia. of Pipes 120mm CNC Pipe Thread Lathe Price
| Supply Ability: | 1,000 Piece(s) per Year |
|---|---|
| Shipping: | Shanghai,TianJin,Qingdao.etc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | outside of lathe machine will be packed by standard wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: XINHENG
- Weight: 2000KG
- color: Customized Option
- Model Number: QK1212
- Name: Pipe Thread Lathe
- Machine Type: Lathe Machine CNC
- Function: High Efficiency
- Color: Customized Option
- Spindle bore: 130mm
- Product type: Economical CNC Lathe
- Precision: 0.008mm
- Spindle speed: 20~1000 r/min
- Control system: GSK (Optional)
- Warranty: 12 Months
Specifications
Brand new QK1212 External Dia. of pipes 120mm CNC pipe thread lathe price
QK series lathe are economical CNC horizontal lathe, which are not only suitable for Oil pipe thread turning and pipe thread turning, but also widely used in all walks of life such as automotive, petroleum, military and other mechanical processing.
ITEM |
UNIT |
QK1212 | |
CAPACITIES |
External Dia. of pipes |
mm |
120 |
Swing over bed |
mm |
800 | |
Swing over carriage |
mm |
450 | |
Max.Length of workpiece |
mm |
750-3000 | |
Max.Length of turning |
mm |
550-2800 | |
SPINDLE |
Span of guideway |
mm |
550 |
Spindle nose |
C15 | ||
Taper hole of spindle |
Metric140 | ||
Spindle bore |
mm |
130 | |
Top taper of spindle |
6# | ||
Range of spindle speed |
r/min |
20~1000 | |
Chuck |
mm |
3-JAW 400 | |
FEED |
Min. Feed of X/Z-axis |
mm |
0.001/0.001 |
Rapid of X/Z-axis |
m/min |
3/6 | |
Max. Travel of X |
mm |
390 | |
TURRET |
Turret type |
V4 240 | |
Section of tool shank |
mm |
40X40 | |
Indexing repeatability |
mm |
0.008 | |
Max.Cutting force |
N |
19600 | |
TAILSTOCK |
Dia. of tailstock |
mm |
100 |
Travel of tailstovk |
mm |
250 | |
Taper hole of tailstock |
Morse5 | ||
OTHERS |
Main power |
kw |
22 |
Accuracy |
IT6~IT7 | ||
Roughness |
RA1.6 | ||
Length |
mm |
2912-5177 | |
Width |
mm |
1800 | |
Hight |
mm |
1850 | |
CNC system |
FANUC Series 0i-mate-TD/0i-TD | ||
