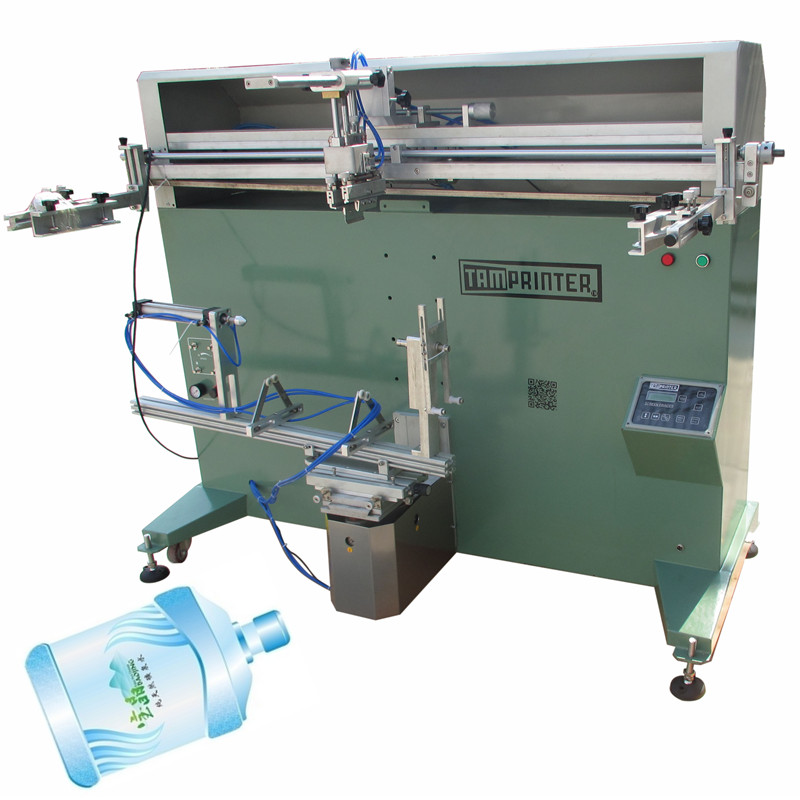

TM-1200e Rotary Bucket Cylinder Screen Printing Machine for Bottle
| Supply Ability: | 100 Set(s) per Month |
|---|---|
| Shipping: | ShenZhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |

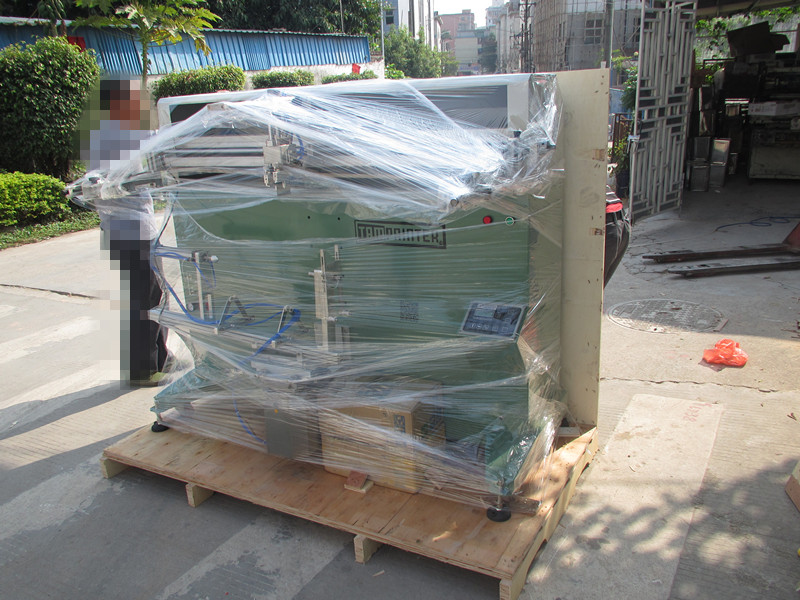

| Packaging Details: | Plywood or as Required |
Quick Details
- Plate Type: Screen Printer
- Automatic Grade: Semi-Automatic
- Usage: Tube Printer,Bottle Bucket Printer
- Brand Name: Tamprinter
- Condition: New
- Plate Type: Rotary Screen Printing Machine
- After-sales Service Provided: Overseas third-party support available
- Warranty: two years warranty
- Certification: ce
- Weight: 460kg
- Gross Power: 110/220V 60/50Hz
- Model Number: TM-1200E
- Max Printing Thickness: 340mm
- Printing Diameter: 100mm~310mm
- Max Substrate Arc Length: 980mm
- Max Printing Speed: 500PCS/Hr
- Air Consumption: 110litre/Min(6bar)
- Power: 110/220V 60/50Hz
- Specification: 1.8*1*1.4m
Specifications
TM-1200e Rotary Bucket Cylinder Screen Printing Machine for Bottle
Technical parameter
| Model No. | TM-1200E |
| Printing diameter | 100mm~310mm |
| Max printing thickness | 340mm |
| Max substrate arc length | 980mm |
| Max printing speed | 500pcs/hr |
| Air consumption | 110litre/min(6bar) |
| Power | 110/220V 60/50Hz |
| Dimension | 1.8*1*1.4m |
| Weight | 460kg |
Bucket screen printing machine Specifications
1.Screen printer for large bucket,barrel,bottle,drum printing
2.Good quality,long working life
3.High safety,reliability
4.Cylinder screen printers are multifunctional screen printing machine.They are suitable to print on flat, round, oval shaped products.
5.Cylinder screen printers can print one color at one time.Once replacing frame and ink, they can print 2, 3colors
Bucket screen printing machine Function
1.Microprocessor controls, high automation and easy operation.
2.4-digit auto counter built-in.
3.with the function of cylindrical and conical printing.
4.Automatic ink scraping, ink withdrawing and worktable lifting.
5.Printing stroke and speed is adjustable to meet different needs.
6.Automatic squeegee balance-keeping ensures equal printing pressure.
7.Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
8.High precision printing and easy adjustment.
Testing Please provide:
1.110V or 220V power supply.
2.5-7 bar compress air.
3.Screen Frame 1 pcs.
4.A jig 1pcs.
5.5-10 pcs product samples.
Payment Terms:TT/Western Union
