Tamprinter Printing Machine Company
China Manufacturer with main products: Pad Printer, Heat Transfer Machine, UV Curing Machine, UV Curing Machine |
Home
>Products Catalog > uv machine > TM-Wuv-1000 Wrinkle Effect Crease UV Drying Machine UV Curing System

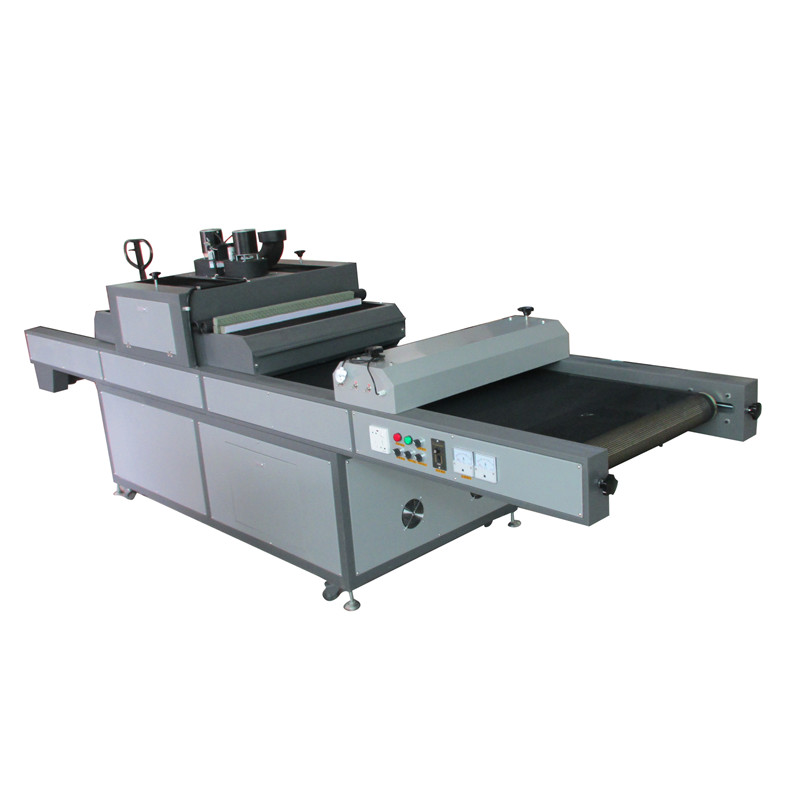

TM-Wuv-1000 Wrinkle Effect Crease UV Drying Machine UV Curing System
| Supply Ability: | 100 Set(s) per Month |
|---|---|
| Shipping: | ShenZhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Plywood Case/Wooden Case/as Required |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: two years warranty
- Brand Name: Tamprinter
- Type: Drying Oven
- Condition: New
- Certification: ce
- Dimension(L*W*H): 4000*1230*1350
- Power(W): 380/12.8
- Model Number: TM-WUV-1000
- Drying Medium: UV Light
- Operation Pressure: Atmospheric Pressure
- Type: Single Stage
- Conveyor Belt Width(mm): 1000mm
- UV Light Power(Kw): 5.6kw*2
- Dimension (W*H*L mm): 4000*1230*1350
- Transport Package: Plywood Case/Wooden Case/as Required
Specifications
TM-WUV-1000 Wrinkle Effect Crease UV Drying Machine UV Curing System
Technical Parameters
| Model | TM-WUV-1000 Wrinkle Effect UV Curing Machine |
| Conveyor belt width(mm) | 1000mm |
| UV light power(kw) | 5.6kw*2 |
| Conveyor speed(m/min) | 0-25m/min |
| Power (V/kw) | 380/12.8 |
| Dimension (W*H*L mm) | 4000*1230*1350 |
| Wrinkle lamp | 40W*3 |
Application
It is used for drying screen printing ink by UV ultraviolet (UV) light curing. It can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Features
1. 2 sets of UV light source system configuration, according to the number of open lamp production needs.
2. Import Teflon conveyor belt, Seiko produced, smooth operation noise
3. the belt speed motor and speed stainless speed conveyor speed visual production situation
4. Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
5. UV light height of chimney can be adjusted
6. UV lamp working current can be shown by the master, UV analogue display system working condition
7. Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
