Tamprinter Printing Machine Company
China Manufacturer with main products: Pad Printer, Heat Transfer Machine, UV Curing Machine, UV Curing Machine |

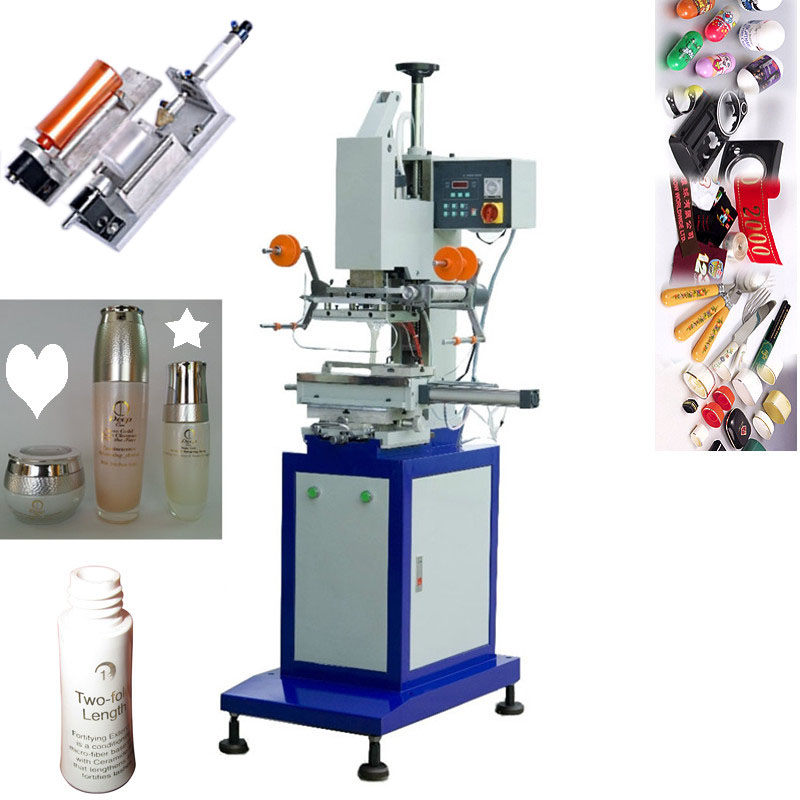

Pneumatic Fast Round Surface Hot Foil Stamping Machine (TGM-100)
| Supply Ability: | 50 Set(s) per Month |
|---|---|
| Shipping: | ShenZhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |

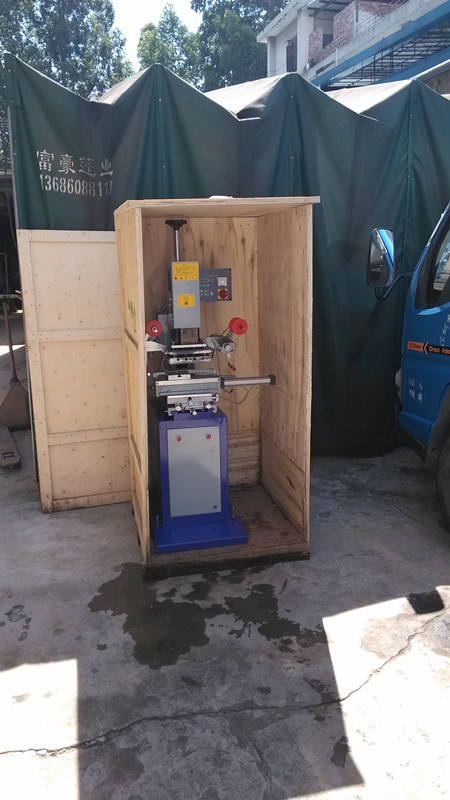

| Packaging Details: | Plywood Case/Wooden Case/as Required |
Quick Details
- Brand Name: Tamprinter
- Type: Continuous Stamping Machine
- Material: pen,bottle,tube
- Application: Plastic
- COLOR: Single Color
- Model Number: TGM-100
- Application: Leather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Electronic, Labels and Tags, Cap, Toy, Apparel
- Overall Dimensions: 710 * 850 * 1600
- Total Power: 1000 W
- Weight: 140 Kg
- Speed: 1100PCS/Hr
- Table Size: 128 * 128
Specifications
TGM-100 Pneumatic Hot Stamping Machine for Round Bottles
| 1 | Stamping head stroke | 53mm |
| 2 | Stamping pressure range | 500kgf |
| 3 | Stamping temperature | 20~400 |
| 4 | Stamping speed | 1100pcs/Hr m/min |
| 5 | Stamping plate size | 150 * 200 mm |
| 6 | Overall dimensions | 710 * 850 * 1600 |
| 7 | Table size | 128 * 128 |
| 8 | Weight | 140 kg |
| 9 | Total power | 1000 W |
| 10 | Speed | 1100pcs/Hr |
Features:
(1) TGM-100 pneumatic stamping machine with easy operation, stable performance, good effect on stamping.
(2) Using pneumatic pressure stamping, with a variety of plastic sheet, can plane, bevel, face and arc.
(3) with special universal adjustable workbench to facilitate adjustment;
(4) Variety of machined parts with excellent results, processing out of the object flat, smooth, no garland, the effect of coarse.
Hot stamping machine is the use of temperature (100-380 degree Celsius) and pressure
the gold foil paper (foil), Film with color, Transfer to the product
Hot stamping Features: Colorful, high gloss.
Can be used for stamping paper, wood, plastic, etc.
Can use as a branding machine, Pneumatic flat, round face Hot stamping machine.
Work Method:
Heating plate and stamping film Vertical imprint on the workpiece
Payment TermsTT/LC/ Western Union
about Us:
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: America market.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure cliche machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer);
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: Flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: Printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam;
6. Import and export business of the above items.
