Jiangyin Plastiger Machinery Co., Ltd.
China Manufacturer with main products: Dewater Air Knife, Spiral Vibrating Conveyor, Continuous Vacuum Dryer, Reciprocating Resonance Classifier, Water Trough, Parallel... |

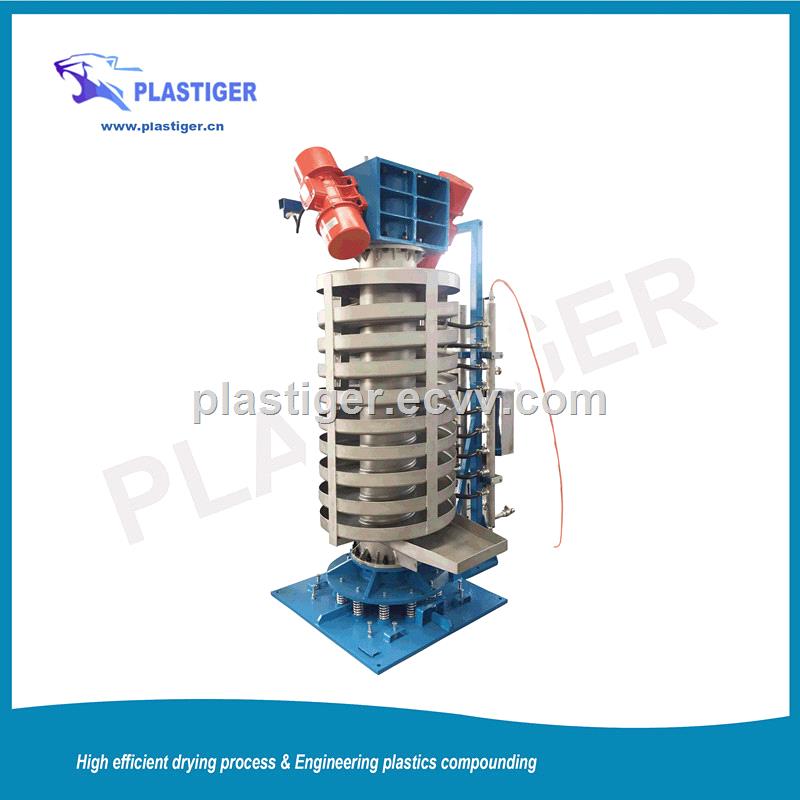

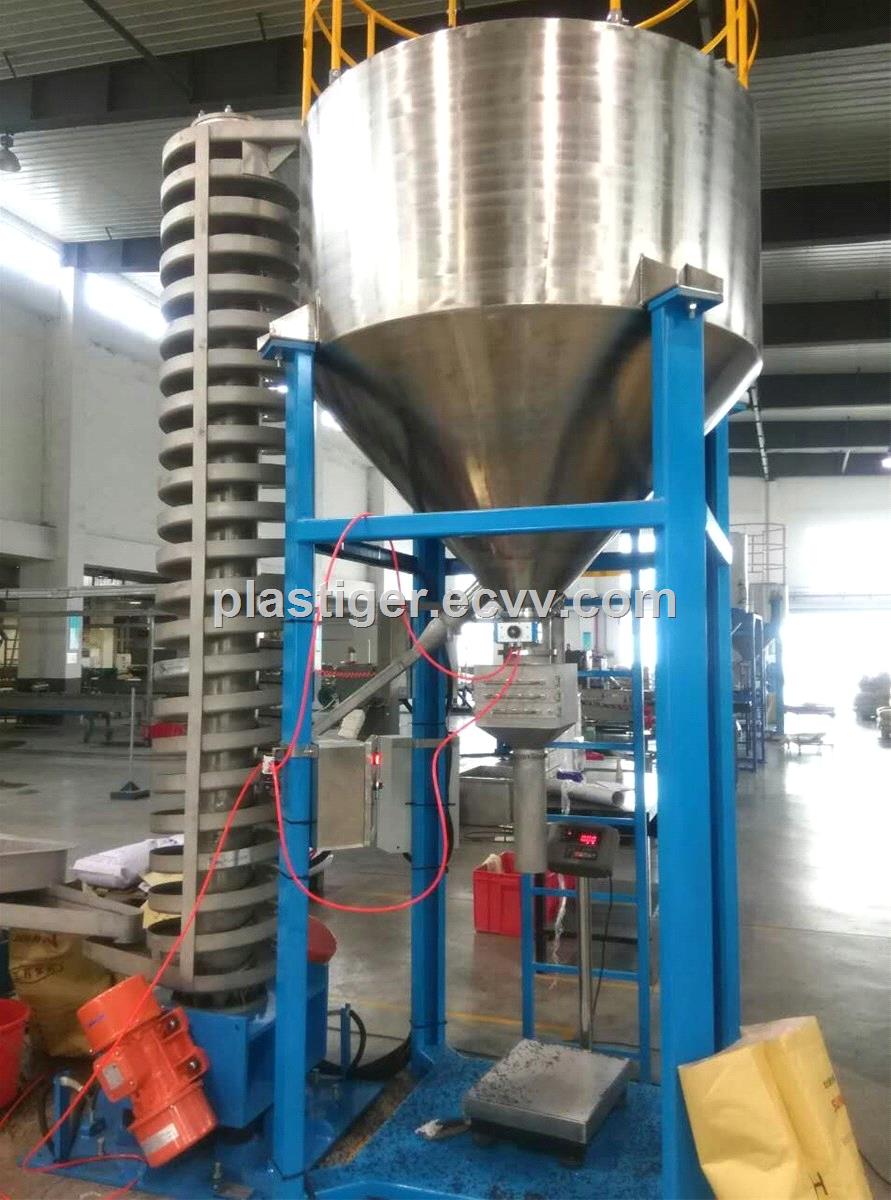

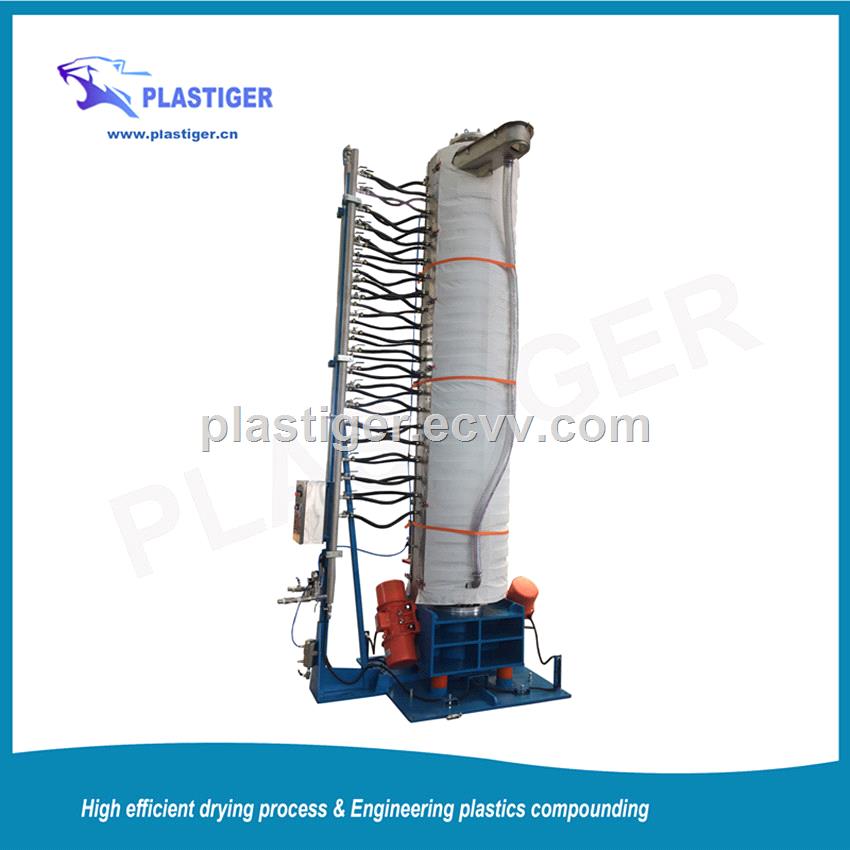

Water-Cooling Spiral Vibrating Conveyor for Polymer Compounds
| Supply Ability: | 100 Piece(s) per Year |
|---|---|
| Shipping: | By sea / by air |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden case with film packaging |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: 12 months
- Certification: none
- Brand Name: Plastiger
- Condition: New
- Dimension(L*W*H): Customized
- Model Number: SCT05-45W
- Conveying Capacity (kgs): 300-6000
- Diameter(mm): 600-1300
- Inlet and Outlet Height(mm): Customized
- Resident Time(min): 3-10
- Function: Drying, cooling and transportation
- Application: various plastic and rubber materials
Specifications
Water-cooling Spiral Vibrating
Conveyor for Polymer Compounds
Production Description
1. Summary
the dual-layer jacket design is
Added at the bottom of the disk of the spiral vibrating elevator, to strengthen
Cooling and heat transfer by feeding cooling water.
2.Characteristics
1) the water jacket, which is
Punched and formed by the mould, can withstand 5bar pressure but not be
Deformed.
2) the composite hose with high performance can withstand the long-term
Vibration without cracks.
3)the water inlet and water outlet distribution towers are controlled by the
Independent ball valves so as to adjust the discharge capacities of every
Layers.
4) the water inlet is configured with the filter with high precision of which
the filter precision is 0.5um-1um, so as to effectively prevent impurities from
Precipitating and scaling in the jacket.
5) Provide the cleaning maintenance to the jacket so as to ensure the cooling
and heat transfer performance.
Company Profile
Plastiger Machinery Co., Ltd is a Technology-developing company dedicated to the innovation reseach of the Engineering plastics compounding auxiliary systems and drying technology field. Practicing the core concept: " profession creates value", pays attention to the Growth of the customers, meets the customers' potential demands continuously ,and focuses on developing and manufacturing the new practical special Equipments with low energy consumption, low noise and high efficiency, Precisely in accordance with the German technological standards.
Welcome to our company~~~
