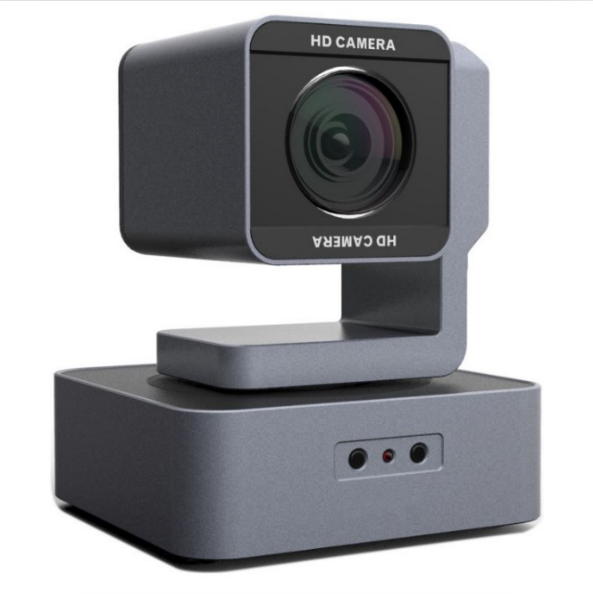

2018 New 20x Optical HD Video Conference Camera

Specifications

AVL-HD520N HD Camera

Sensor: 1/2.8" ExmorCMOS, 3.27MP

Video Format: Full HD1080P60

Zoom: 20 x Optical

Output: 3G-SDI, HDMI, IP

Protocol: VISCA, PELCO-D/P

Horizontal Field of View: 55.4

Presets: 255

Compatibility

Windows 7/8/8.1, Mac OS X, BlueJeans, Easymeeting, Cisco Jabber and WebEx, Citrix, GoToMeeting, Google Hangouts, Microsoft Skype and Skype for Business etc

Functionality

L  Ideal for video conferencing, government, court, Educational environment,distance learning, corporate training, remote medical and Internet communication

L  Full aluminum shell, and anodized surface, fashionable and Minimalism

L  with Video Select output, could adjust camera parameter( Video format, baud rate, protocol, camera address etc)

L  Support RS-232 / RS-485 serial controls, no need to Change code

L  Pan Tilt mechanism use High Precision Stepper Motor that Guarantees smooth and super quiet pan and tilt movements

L  Focus on image Intelligent, with Auto White Balance, Auto Iris, Auto Focus function

L  Standard mounting and ceiling mounting with E-Flip Function

L  Built-in multiple language OSD menu, simple and User-friendly

Specification:

Video CMOS Sensor: 1/2.8 Exmor CMOS, 3.27 MP

Frame Rate: 1080P60/59.94/50/30/29.97/25,1080I60/59.94/50,720P60/59.94/50/30/29.97/25, 480I60, 576I50

Lens Zoom: 20xoptical, 12xoptical  f=4.7mm-94.0mm, F=1.6(W)-3.5(T)

Horizontal Field of View: 2.9(T)-55.4(W)

Min Lux: 0.5 lux /0.095 lux

Shutter Speed: 1 to 1/10000s

Vertical Flip & Mirror: Supported

Pan Rotation Angle: 173

Tilt Rotation Angle: -30~ +90
