Henr Technologies Guangxi Co., Ltd.
China Manufacturer with main products: Drilling Rig, Mining Drilling Rig, Rock Drilling Rig, Open-Pit Drilling Rig, Construction Drilling Rig |

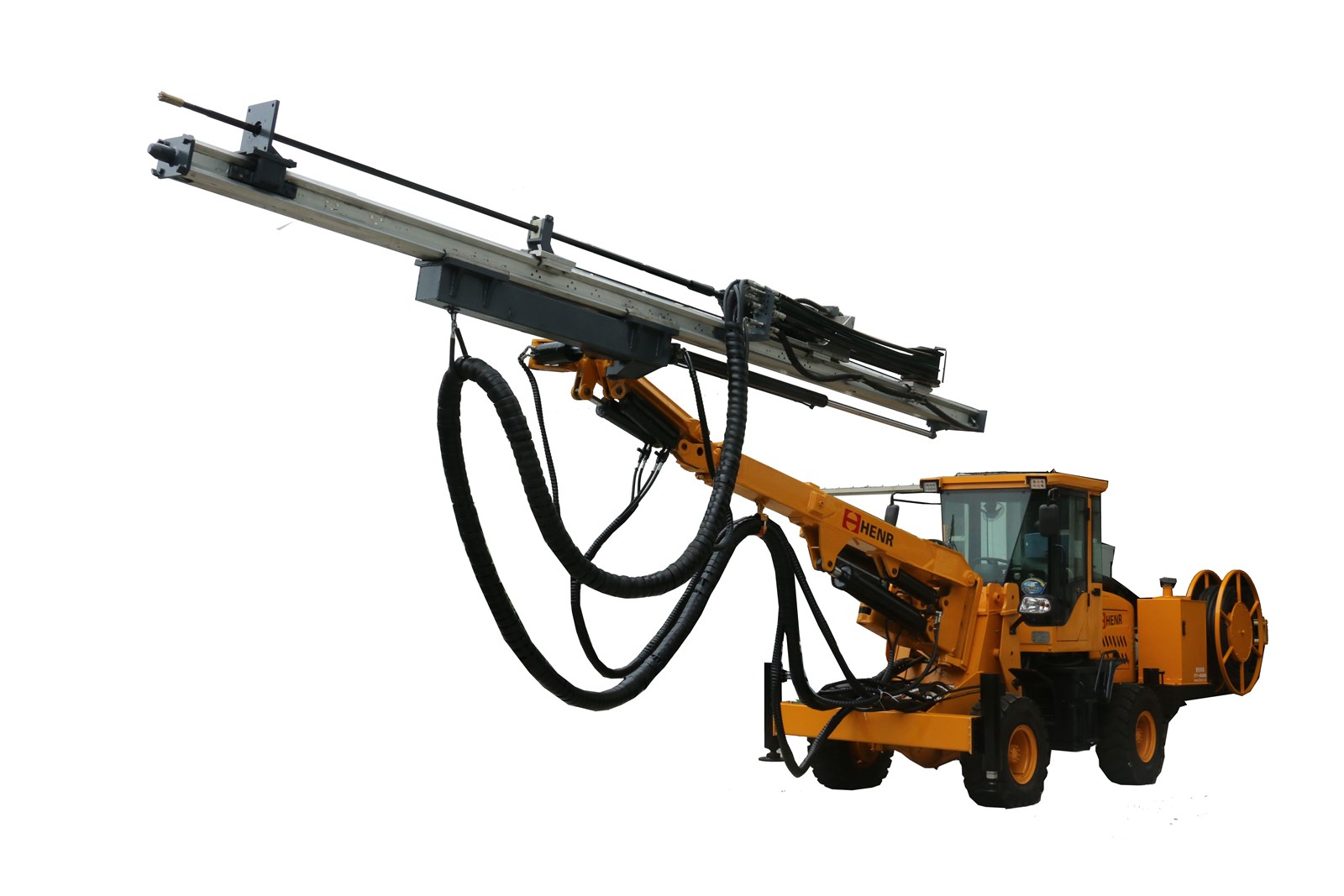

Quarry Drilling Rig Hot Sale Mine Driling Rig Hot Sale to Germany
| Supply Ability: | 10 Set(s) per Month |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Export woodencase |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Brand Name: Henr
- Power Type: Electric
- Type: Rotary Drilling Rig
- Condition: New
- Warranty: 1 Year
- Certification: ISO2000
- Weight: 8000KG
- Dimension(L*W*H): 12700X2235X2700
- Power(W): 55KW
- Voltage: 380V
- Usage: Coal
- Model Number: T310
Specifications
Able to drill down quickly and accurately,the Tunnel is dug in the 40-square-meter cross-section, and the hydraulic control Device can accurately and effectively drill the drilling operation.
Suitable for mining, metallurgy, water and electricity, railway, highway and national defense.
Main Technical Parameters
Component |
Item |
Main Technical Parameters |
Complete Tunnel Boring Drill rig |
Overall Dimension(L X W X H) |
12700x2235x2700mm |
Adapt Section(WXH)m |
2.8mx3.5m~2.8mx5.5m | |
Drill Hole Diameter |
45~102 mm | |
Drill Steel Length |
3800mm | |
Maximum Drilling Depth |
3050mm | |
Drilling Speed |
0.8~2m/min | |
Main Alternator Power |
55Kw | |
Hydraulic Fuel Tank Capacity |
200L | |
Total Gross Weight |
8000Kg | |
Drill Boom/Arm |
Rock Drill Model |
ATLAS 1238 |
Return/ Turn |
90 | |
Swing Arm |
Left 60Right 20 | |
Stretch |
1500mm | |
Feed beam Pivot Angle |
80 | |
Feed Beam Conpensation |
1400mm | |
Base Tray |
Engine Power |
42Kw |
Steering |
Joint Steering Angle35 | |
Tyre Size |
20.5/70-16 | |
Climbing Ability |
14 | |
Approach Angle/Stay away from Angle |
28/14 | |
Minimum Turning Radius |
inner5m / outer10.0m | |
Drive Speed |
20Km/h | |
Minimum Ground Clearance |
270mm | |
Drive Brake |
Brake pedal oil | |
Fuel Tank Capacity |
32L | |
Air Supply system |
Flow |
360 L/min |
Working Air Pressure |
2~8 Bar | |
Water Supply System |
Flow |
4 m/h |
Working water Pressure |
2~11 Bar | |
Electrical System |
Alternator Total Power |
61Kw(55+3+3) |
Power Voltage |
380V | |
Motor Speed |
1485rpm | |
Battery |
2x12V/120AH | |
Driving light |
2X70W | |
Working light |
2X200W | |
Electrical System |
24V |
