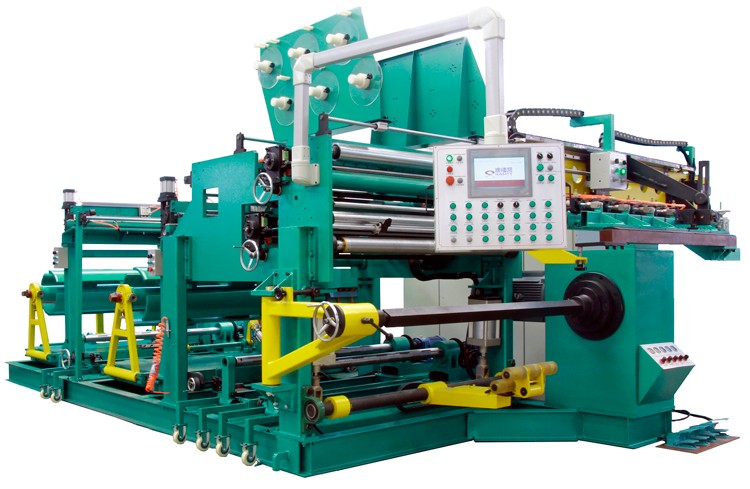

High Voltage Transformer Aluminium Foil Winding Machine

Supply Ability: 100 100 per Month
Payment Terms: L/C, T/T
Place of Origin: Shandong in China
Packaging Details: 1.outside packge : standard export wooden cases 2. inside package:stretch film

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Condition: New
  • Brand Name: darling
  • Weight: 10t
  • color: bule
  • Model Number: BRJ-800
  • foil width: 600-1600mm
  • foil outer diameter: 0.5-3mm
  • accuracy: +-0.3mm
  • insulation max tension: <1KN

Specifications

high voltage transformer aluminium foil winding machine

the tranformer winding machine work video: https://youtu.Be/luf8UNZtdZU



2. Instruction of foil winding machine
Transformer LV foil winding machine is winding copper or aluminum foil type coils used in transformer and reactor/inductor making. According to the foil width in winding, the type is included: BRJ-1600, BRJ-1400, BRJ-1200, BRJ-1100, BRJ-1000, BRJ-800, etc.; According the quantity of foil belt, it is divided into single layer, double layer, four layer type; BRJ-1600-2, BRJ-1400-2, BRJ-1200-2, BRJ-1100-2, BRJ-1000-2, BRJ-1600-4, BRJ-1400-4, etc.
Foil coil take different thickness copper belt or aluminum belt as conductor, take wide belt type insulation material as layer insulation, take narrow belt type insulation material as end insulation, finish foil winding in foil winding machine once time and form a roll status coil. and at the same time, the lead wire in outside of coil weld and surface package are finished. All kinds of function of this equipment supply enough support for foil winding in making suitable coil. this machine is necessary equipment for this electric product.




3.Main configuration of aluminium foil winding machine:



1) PLC: Mitsubishi, original from Japan

2) Servo system: Mitsubishi, original from Japan

3) Inverter: Mitsubishi, original from Japan

4) Touch screen: from Taiwan

5) Electric components: Schneider brand from joint venture in China

6) Main pneumatic components: from Taiwan

7) Linear guide: SBC brand, from Korea
