Low Scrap Rate Bearing Ring Manufacturing Machines

Supply Ability:	100 Piece(s) per Year
Shipping:	Shanghai,FOB
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard wooden box

Quick Details

Type: Other Type
Seals Type: wooden case
Outside Diameter: 0-0 mm
Bore Size: 0-0 mm
Brand Name: xinheng
Type: horizontal
After-sales Service Provided: Engineers available to service machinery overseas
Automatic Grade: Automatic
Condition: New
Certification: ISO9001
Voltage: 220V

Specifications

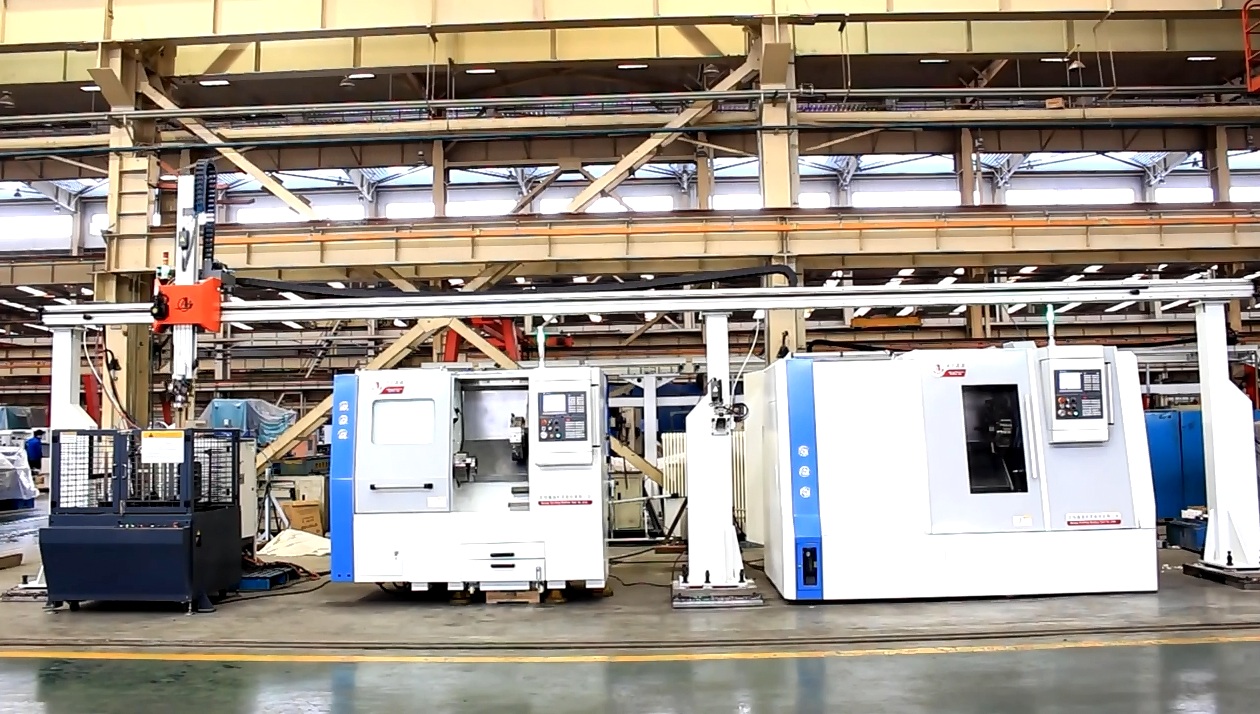

AUTOMATIC BEARING RING PRODUCTION LINE:XSPT-002 bearing ring automatic line is composed of three ADJ15P CNC lathes and a set of SMT20 Manipulator automatic feeding device.
the automatic line to grab the workpiece weight 7Kg.
Outer diameter: 100mm-200mm
the width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.

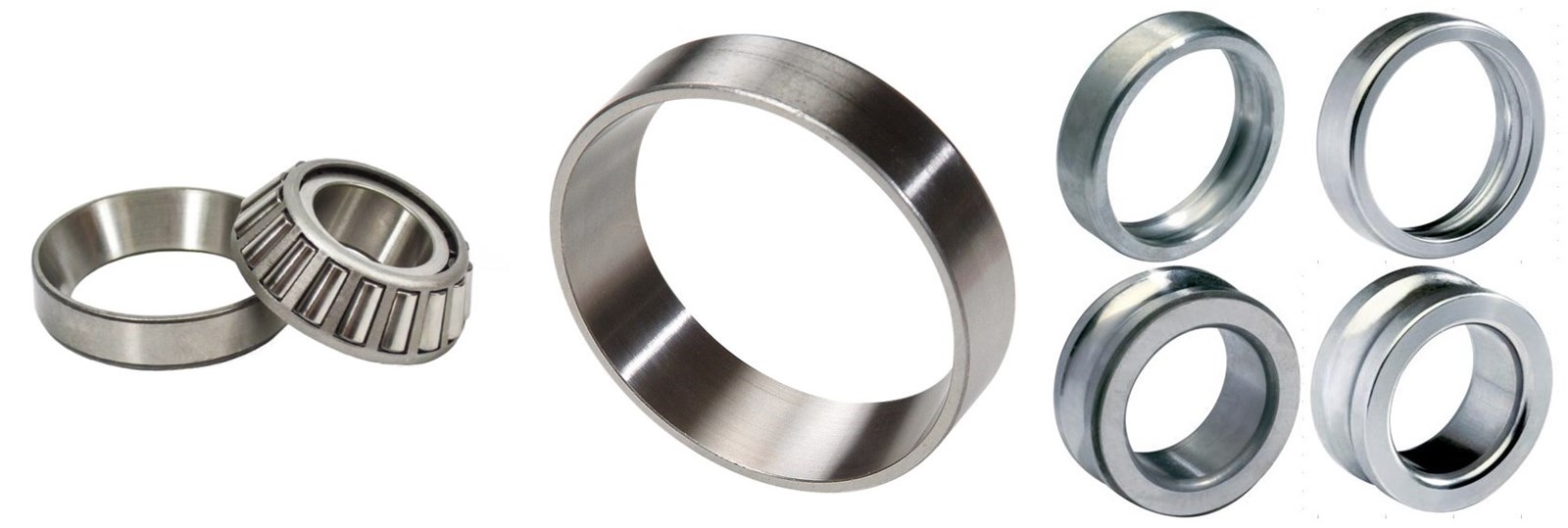

Workpiece	Bearing out ring(No. CG-GAC110S/K.01-LG1)
Annual output estimation	12 months26 days20 hours3600 seconds0.85 Utilization rate/85 seconds(Automatic line cycle time)= 224640 pieces.

LAYOUT of the BEARING RING LATHES: low scrap rate bearing ring manufacturing machines

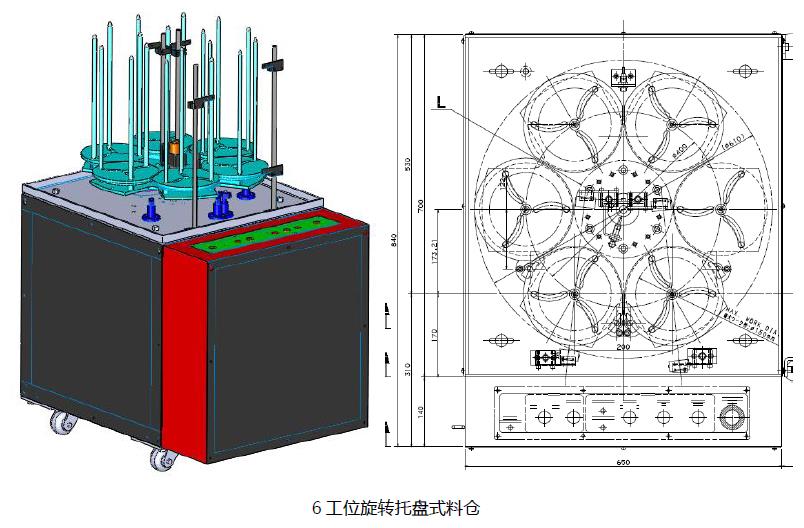

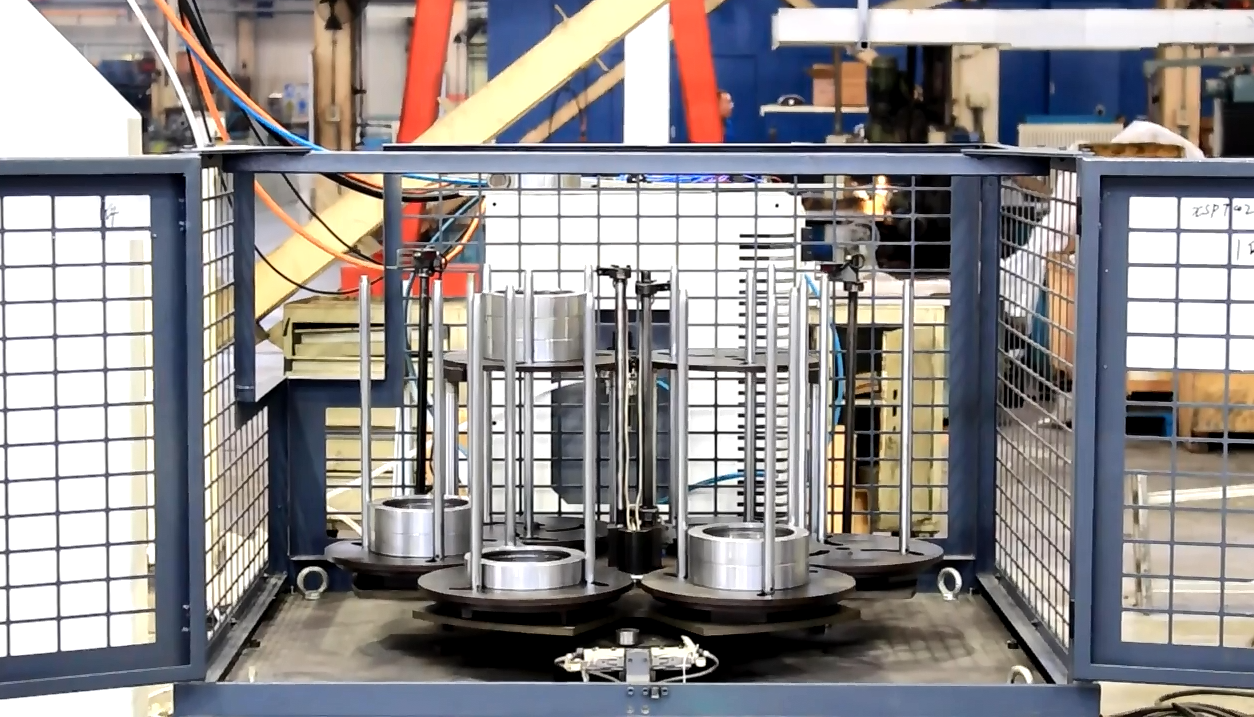

SIX-STATION ROTARY TRAY SILOS:the feeding device of the automatic line is composed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal. It can control the feeding position and the stroke of each action.
Silo specifications: 6 stations.
Delivery parts diameter: 30 ~ 230;
Each station stack height: 400mm.
Each tray carry weight: 35kg.

Anyang Xinheng Machine Tool Co. Ltd. Is a professional machine tool manufacturer since 1946. Our factory covers an area of more than 30000 squares meters, equipped with our updated manufacturing facilities. We have LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. We have attained ISO9001:2000 International Quality Control System Certification. Our products are sold both at home and abroad, and they are very popular around the world. Welcome to contact us!

Our service:

Free replacing parts available in the warranty period.

Cost price replacing parts available beyond the warranty period.

Quick action and reply for the technical questions at any time in the whole life of the machine.

Overseas after service center available in some region.

Engineer overseas service available on the requirement of customer(relative cost born by customer).

Free design drawing, free installation, free debugging, Cheap accessories.
