Kowary Technology Co., Ltd.
China Manufacturer with main products: Capacitors, Power Electronic Capacitor |

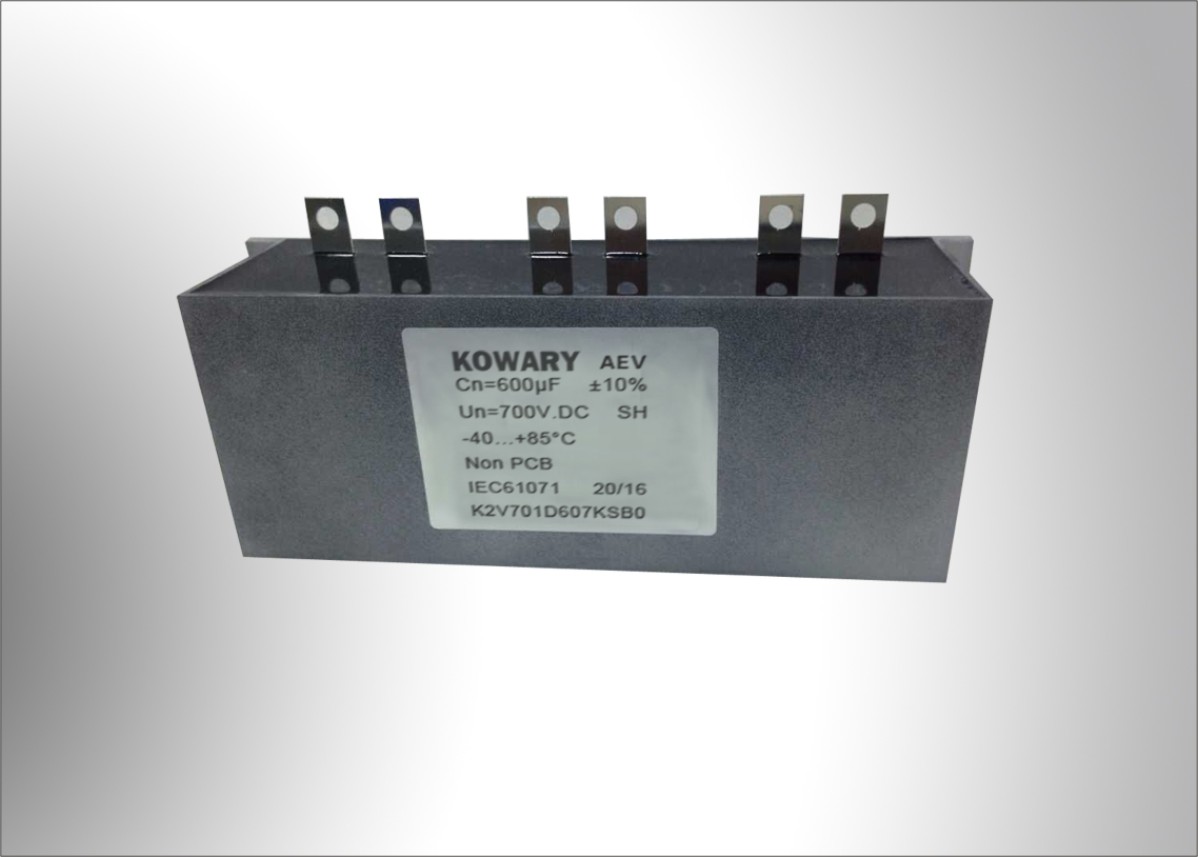

AEV DC-Link EV/HEV (Customization)
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Payment Terms: | L/C, D/A, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shenzhen in China |
|---|---|
| Packaging Details: | Bulk |
Quick Details
- Rated Voltage: 450 to 2200 Vdc
- Capacitance: Customization
- Application: Automotive
- Type: Polypropylene Film Capacitor
- Brand Name: KOWARY
- Package Type: Surface Mount
Specifications
ELECTRICAL CHARACTERISTICS
Operating temperature: - 40 to + 105 (hotspot temperature)
Capacitance range: Customization
Rated voltage range: 450 to 2200 Vdc
Capacitance tolerance: 5%
Dissipation factor: 3.010-3 Measured at 100 Hz and 205
Life expectancy: 100,000 hours at UNDC and 70 (Hot-spot temperature)
TEST METHODS and PERFORMANCES
Dielectric strength: 1.5UNDC applied to 10s at 205
Test voltage terminal to case: 1.5UN+1000VAC /50Hz for 60s
Insulation resistance(IR*CN): 30000s but need not exceed 30G,
after 1 minute of electrification at 100VDC (205)
OUTLINE DRAWING
