Jinan Shuohao Machinery Equipment Co., Ltd.
China Manufacturer with main products: Transformer Coil Winding Machine, Transformer Foil Winding Machine, Transformer Assembly Table, CNC Busbar Machine, CNC Plate Shear, CNC... |

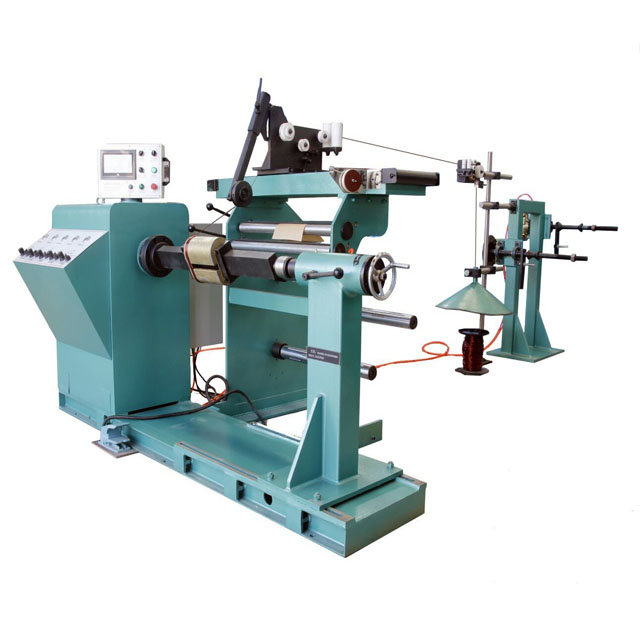

Single Phase Oil Type Distribution Transformer Coil Winder
| Supply Ability: | 200 200 per Month |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | transformer coil winder of sea export package |
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Single
- Usage: Power
- Brand Name: Shuohao
- Model Number: grx-100
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Weight: 500kg
- color: green
- Name: transformer coil winder
- Appliance: Distribution transformer
- Voltage: 220V/380V/415V
- Warranty: 18 month
- Coil weight after winding: 100kg
- Outer diameter of coil after: 1400mm
Specifications
Usage:
WIdely used in Distribution Transformer, dry transformer,reactor and similar process of HV coil winding.
Composition:
It is main composed of Winding host,Wire guiding carriage with tensioner,insulation layer decoiler,
Pneumatic system,PLC control ,operation touch screen and foot pedal.
2.Technical data:
Model |
GRX-100 |
GRX-800 |
General | ||
Dimension LWH |
140020001300mm |
255021801980mm |
Winding width |
500 mm |
800mm |
Weight |
500kg |
1000kg |
Power supply |
3220(380)(415)V 50(60)HZ |
3220(380)(415)V 50(60)HZ |
Coil |
| |
Coil diameter |
80-400mm |
80-600mm |
Coil width (Max) |
500mm |
800mm |
Coil weight(Max) |
100kg |
300kg |
No.of coils wound simultaneously |
1 or 2 |
1 or 2 |
Coil cross section |
Round,oval,rectangle |
Round,oval,rectangle |
Conductors |
| |
Round wire diameter |
0.3mm3mm |
0.3mm3mm |
Flat wire |
19mm |
312mm |
Mandrel |
| |
Speed adjustment method |
Frequency stepless control |
Frequency stepless control |
Mandrel rotation speed (Max) |
450rpm |
450rpm |
Mandrel torque |
100Nm |
100Nm |
Features:
1.Brake for round and flat wire
2.Automatic insulation layer feeder
3.PLC control systemwire
