EMC-Optimised Motor Cable 2YSLCY - Motor Cable

Specifications

 2YSLCY and 2YSLCYK are flexible cables having special EMC- performance due to double shielded, low capacitance design. Ideal for frequency converters for variable speed of 3 phase AC motors, small, medium and large sizes. 2YSLCYK having a special concentric conductor array design, where earth conductor is split into 3 individuals. this 3+3 design allows symmetry against common-mode disturbance effect. this design also improves EMC noise situation of the whole drive system. Cables are suitable in dry, damp and wet rooms/ locations. 2YSLCYK version is UV light protected for outdoor use including direct burial. Good resistance against acids, caustic solutions and certain oils at room temperature.
    Connecting cable between frequency converter and motor
    in dry, damp or wet interiors
    Paper industry
    Chemical industry
    Heavy industry

Product features

    Flame-retardant according IEC 60332-1-2
Based on VDE 0207 / 0250 / 0295
    Fine-wire, bare copper conductor
    Core insulation: PE

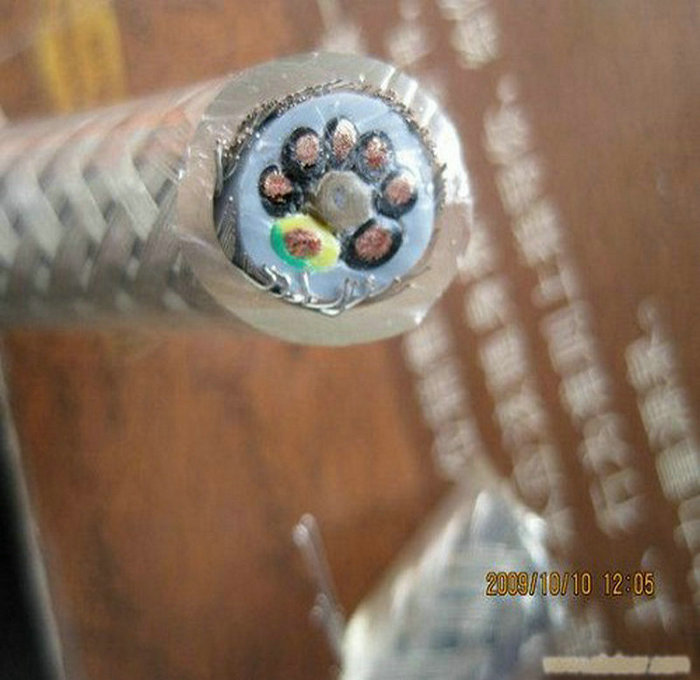

    Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)

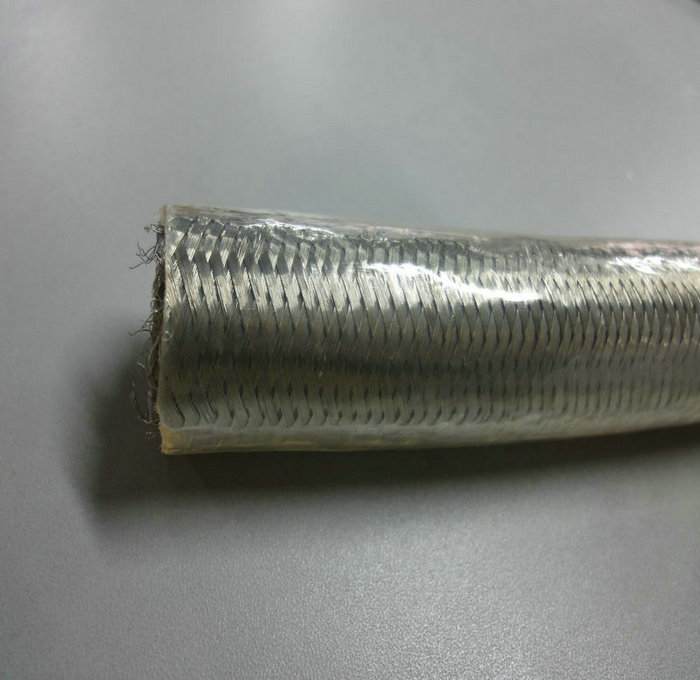

    Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
    4-core version: optional transparent or black PVC outer sheath
    3+3 core version: PVC outer sheath, black - cold flexible                                              Nominal voltage
 U0/U: 600/1000 V
    Flexing: -5C to +70C
3+3 core version: -15C to +70C
Fixed installation: -40C to +70C                                                          Occasional flexing: 15 x outer diameter
Fixed installation: 4 x outer diameter
