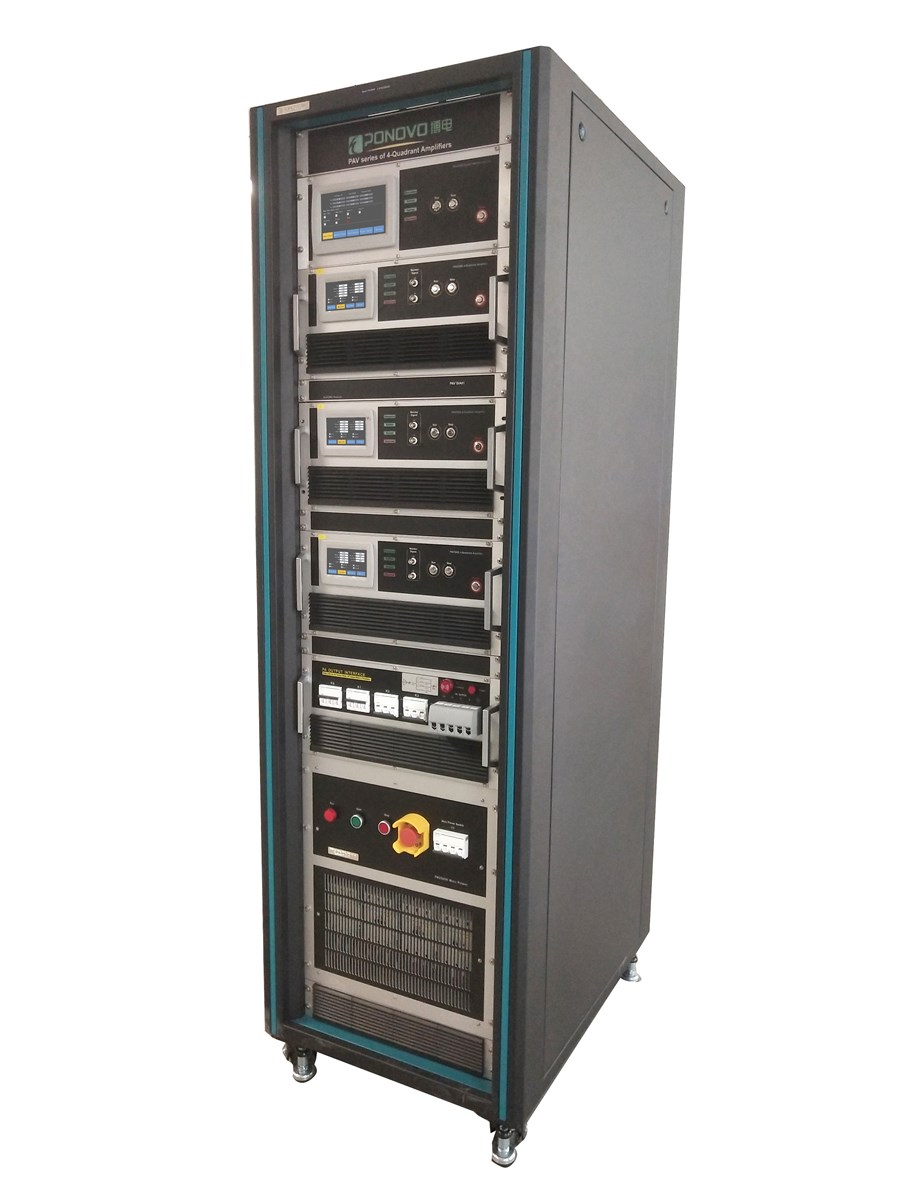

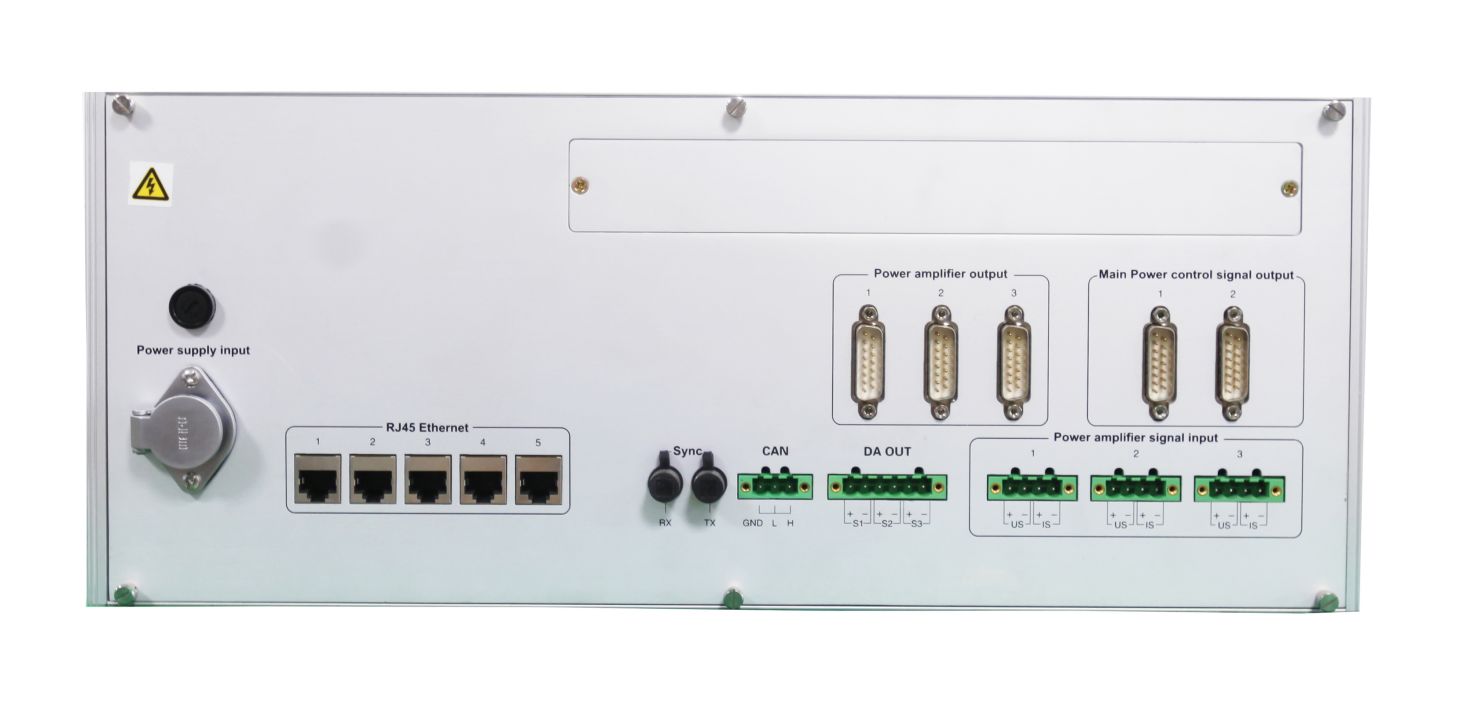

Ponovo PAV Series 4-Quadrant Power Amplifier for Real Time Digital Simulation

FOB Price:	1.00 - 60000.00 USD/Set
Shipping:	By air
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Carton

Quick Details

Usage: Universal Testing Machine
Power: Electronic
Brand Name: PONOVO
Warranty: 12 months
weight: 350KG-450KG
Model Number: PAV3000/5000/10000/15000/20000/30000
Color: black and white
Output frequency range: 0-5000Hz

Specifications

Ponovo PAV Series 4-Quadrant Power Amplifier for Real Time Digital Simulation

Best Application Assistant for Digital Simulator System

PONOVO's PAV series of 4-quadrant simulation power amplifiers is based on linear power amplifier technology, and integrated advanced technical performance with rich functions. It is widely used by institutions in industries of power, new energy, aerospace, railway transportation, mining, petrochemical etc. It is also the ideal R&D device for wind power, PV, electric car, large power charging device, aerospace power system, marine power system, energy distribution and micro grid etc.
It can be directly connected to popular simulation platforms including RTDS, OPAL-RT, NI, Typhoon etc., supporting not only analog input communication, but also digital interface communication via AURORA protocol.
It can work as both source mode to output power and also sink power mode to conduct power absorption.
PAV Series 4Quadrant Power Amplifier for Real Time Digital Simulation

Models:
PAV3000 4-Quadrant Power Amplifier
PAV5000 4-Quadrant Power Amplifier
PAV10000 4-Quadrant Power Amplifier
PAV15000 4-Quadrant Power Amplifier
PAV20000 4-Quadrant Power Amplifier
PAV30000 4-Quadrant Power Amplifier
PIV270 Portable 4-Quadrant Power Amplifier
Power Amplifier DIA-01 Aurora Digital Module for Simulator Application
PAL Programmable AC Load Unit
PDL Programmable DC Load Unit
PADS Programmable AC&DC Power Supply Unit

Main Features:

Extremely low harmonic distortion - even under very non-linear load conditions
Very fast slew rate: >50V/μs
Short Input/Output delay: <10μs
Wide frequency range: DC~5kHz
High input impedance
High output precision
High accuracy output
Special port for power interactive simulation in 4-quadrant
Supports optical digital communication with PHIL interface via AURORA protocol
Dual-gain to work smoothly with different simulations
Measurement, monitor and protection functions
High long-term overload characteristic (up to 1 hour)
High short-term overload characteristic (for 5-10 min)

Applications:

the distributed energy system such as photovoltaic power generation,Wind generation, energy storage battery and fuel

Cell system etc

the microgrid

the electromobile and charge unit

the energy storage

Railway transportation

the aerospace

the electric system detection

the hybrid simulation in power system

HVDC

FACTS

HVDC and HVAC connection

Dynamic load analysis on AC, etc.

Application Areas:

Distributed energy systems such as photovoltaic power generation, wind generation, energy storage battery and fuel cell system etc.	Electric system detection
Microgrid	Hybrid simulation in power systems
Electromobile and charge units	HVDC
Energy storage	FACTS
Railway transportation	HVDC and HVAC connection
Aerospace	Dynamic load analysis on AC, etc.

Specifications: PAV3000 / PAV5000 / PAV10000

Model	PAV3000	PAV5000	PAV10000
Nominal Voltage
AC	270V (135V optional)	270V (135V optional)	270V (135V optional)
DC	±382V (±191V optional)	±382V (±191V optional)	±382V (±191V optional)
Line Regulation	1.510^-4/ 10V	1.510^-4/ 10V	1.510^-4/ 10V
Gain	25V/V; 40V/V (optional)	25V/V; 40V/V (optional)	25V/V; 40V/V (optional)
Gain Stability (const load & Temp.)	±0.1% / 5min	±0.1% / 5min	±0.1% / 5min
Frequency Range
Bandwidth range	DC~5kHz (-3dB)	DC~5kHz (-3dB)	DC~5kHz (-3dB)
Small signal (3%)	DC~50kHz (-3dB)	DC~50kHz (-3dB)	DC~50kHz (-3dB)
Harmonic Distortion
45~450Hz (Typ. / Max.)	0.05% / 0.2%	0.05% / 0.2%	0.1% / 1%
450~5kHz	0.6% typ., 1% guar.	0.6% typ., 1% guar.	0.6% typ., 1% guar.
Input
Signal Range (Analog Signal)	0~±16V (25V/V) (optional) 0~±10V (40V/V)	0~±16V (25V/V) (optional) 0~±10V (40V/V)	0~±16V (25V/V) (optional) 0~±10V (40V/V)
Digital Signal Interface	Communication interface with fiber optic ports, supporting AURORA protocol	Communication interface with fiber optic ports, supporting AURORA protocol	Communication interface with fiber optic ports, supporting AURORA protocol
Impedance	10kΩ	10kΩ	10kΩ
Input/Output Delay	10μs	10μs	10μs
Power AC (Nominal Voltage 270V)	3kVA	5kVA	10kVA
Power DC (Nominal Voltage ± 382V)	3kW	5kW	10kW
Long-time Overload (1 hour)	4.5kVA	7.5kVA	15kVA
Max. Short-time Power	6kVA	10kVA	20kVA
Max. Sink Power	30% rated output power	30% rated output power	30% rated output power
Measurement Range
Voltage	0~300V	0~300V	0~300V
Current	0~24A	0~40A	0~80A
Accuracy of Voltage Measurement	0.5% RG	0.5% RG	0.5% RG
Accuracy of Current Measurement	0.5% RG	0.5% RG	0.5% RG
Accuracy of Power Measurement	0.5% RG	0.5% RG	0.5% RG
Protection	Overload / Short-circuit / Overheat	Overload / Short-circuit / Overheat	Overload / Short-circuit / Overheat

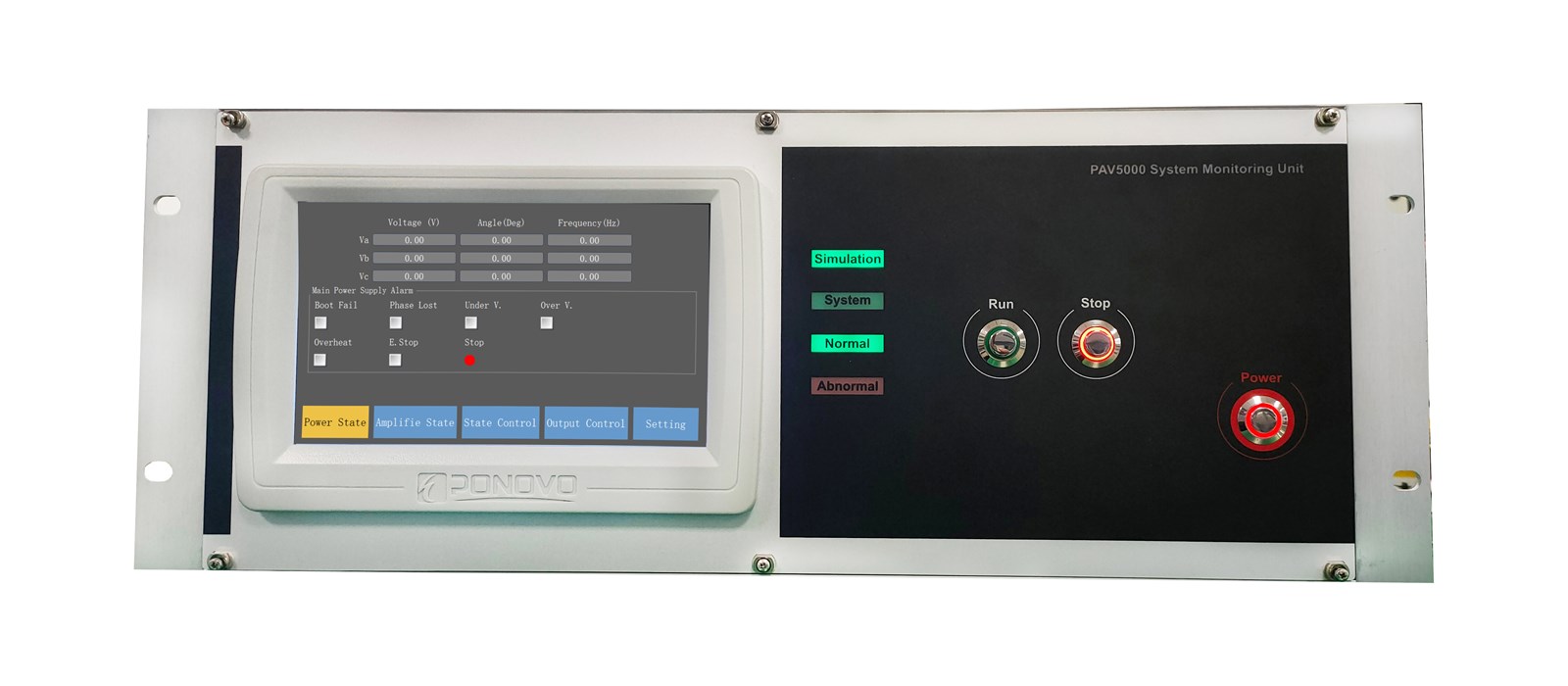

Digital Monitoring Unit (optional)
Analog output	0~±10V (±16 optional)	0~±10V (±16 optional)	0~±10V (±16 optional)
Signal accuracy	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V
Frequency output range	0~5000Hz	0~5000Hz	0~5000Hz
Frequency accuracy	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz
Selectable waveforms (optional)	DC, sine, square, triangle, ramp, arbitrary	DC, sine, square, triangle, ramp, arbitrary	DC, sine, square, triangle, ramp, arbitrary
Power supply	3 phase 380V/208V±10%, 50/60±5Hz	3 phase 380V/208V±10%, 50/60±5Hz	3 phase 380V/208V±10%, 50/60±5Hz
Power protection	Short-circuit, Defaut-phase alarm	Short-circuit, Defaut-phase alarm	Short-circuit, Defaut-phase alarm
Dimensions
Cabinet (W D H)	650mm 900mm 2100mm, 43U	650mm 900mm 2100mm, 43U	650mm 900mm 2100mm, 43U
Power amplifier unit	19'', 5U	19'', 5U	19'', 11U
Digital monitor unit	19'', 4U	19'', 4U	19'', 4U
Power supply unit	19'', 12U	19'', 12U	19'', 12U
Weight	450kg	450kg	3 450kg

*Note: the default frequency is 50Hz/60Hz except for the explicitly indicated frequency.
Specifications: PAV15000 / PAV20000 / PAV30000

Model	PAV15000	PAV20000	PAV30000
Nominal Voltage
AC	270V (135V optional)	270V (135V optional)	270V (135V optional)
DC	±382V (±191V optional)	±382V (±191V optional)	±382V (±191V optional)
Line Regulation	1.510^-4/ 10V	1.510^-4/ 10V	1.510^-4/ 10V
Gain	25V/V; 40V/V (optional)	25V/V; 40V/V (Could be customized set, optionally)	25V/V; 40V/V (Could be customized set, optionally)
Gain Stability (const load & Temp.)	±0.1% / 5min	±0.1% / 5min	±0.1% / 5min
Frequency Range
Bandwidth range	DC~5kHz (-3dB)	DC~5kHz (-3dB)	DC~5kHz (-3dB)
Small signal (3%)	DC~50kHz (-3dB)	DC~40kHz (-3dB)	DC~40kHz (-3dB)
Harmonic Distortion
45~450Hz (Typ. / Max.)	0.1% / 1%	0.5% / 1.5%	0.5% / 1.5%
450~5kHz	1% typ., 2% guar.	1% typ., 2% guar.	1% typ., 2% guar.
Input
Signal Range (Analog Signal)	0~±16V (25V/V) (optional) 0~±10V (40V/V)	0~±16V (25V/V) (optional) 0~±10V (40V/V)	0~±16V (25V/V) (optional) 0~±10V (40V/V)
Digital Signal Interface	Communication interface with fiber optic ports, supporting AURORA protocol	Communication interface with fiber optic ports, supporting AURORA protocol	Communication interface with fiber optic ports, supporting AURORA protocol
Impedance	10kΩ	10kΩ	10kΩ
Input/Output Delay	10μs	10μs	10μs
Power AC (Nominal Voltage 270V)	15kVA	20kVA	30kVA
Power DC (Nominal Voltage ± 382V)	15kW	20kW	30kW
Long-time Overload (1 hour)	22.5kVA	30kVA	45kVA
Max. Short-time Power	30kVA	40kVA	60kVA
Max. Sink Power	30% rated output power	30% rated output power	30% rated output power
Measurement Range
Voltage	0~300V	0~300V	0~300V
Current	0~120A	0~200A	0~300A
Accuracy of Voltage Measurement	0.5% RG	0.5% RG	0.5% RG
Accuracy of Current Measurement	0.5% RG	0.5% RG	0.5% RG
Accuracy of Power Measurement	0.5% RG	0.5% RG	0.5% RG
Protection	Overload / Short-circuit / Overheat	Overload / Short-circuit / Overheat	Overload / Short-circuit / Overheat
Digital Monitoring Unit (optional)
Analog output	0~±10V (±16 optional)	0~±10V (±16 optional)	0~±10V (±16 optional)
Signal accuracy	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V	AC: 0.03% RG + 0.1% @ 0.5~6.75V 0.1% RG + 0.5% @ 0.1~0.5V DC: 0.03% RG + 0.1% @ 0.5~9.55V 0.1% RG + 0.5% @ 0.1~0.5V
Frequency output range	0~5000Hz	0~5000Hz	0~5000Hz
Frequency accuracy	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz	Accuracy (DC): 15 Hz~450Hz, ±0.02 Hz 450Hz~2000Hz, ±0.1Hz 2000Hz~5000Hz, ±0.15Hz
Selectable waveforms (optional)	DC, sine, square, triangle, ramp, arbitrary	DC, sine, square, triangle, ramp, arbitrary	DC, sine, square, triangle, ramp, arbitrary
Power supply	3 phase 380V/208V±10%, 50/60±5Hz	3 phase 380V/208V±10%, 50/60±5Hz	3 phase 380V/208V±10%, 50/60±5Hz
Power protection	Short-circuit, Defaut-phase alarm	Short-circuit, Defaut-phase alarm	Short-circuit, Defaut-phase alarm
Dimensions
Cabinet (W D H)	650mm 900mm 2100mm, 43U	on request	on request
Power amplifier unit	19'', 17U	on request	on request
Digital monitor unit	19'', 4U	on request	on request
Power supply unit	19'', 12U	on request	on request
Weight	3 450kg, 1 280kg	on request	on request

*Note: the default frequency is 50Hz/60Hz except for the explicitly indicated frequency
