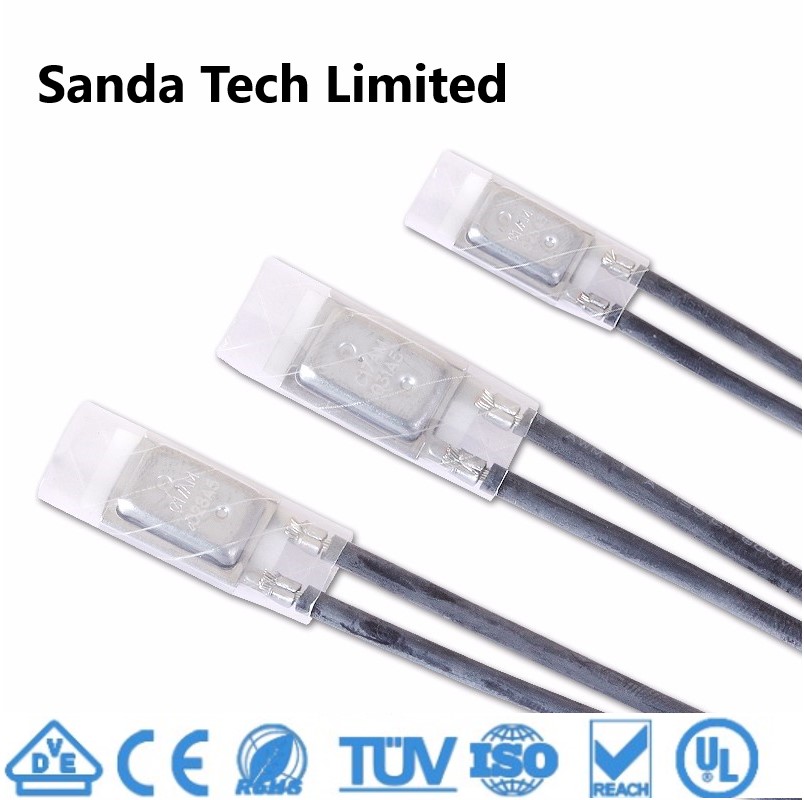

Snap-in Thermal Devices/Thermal Protector 17am for AC250V 9A/DC24V 9A

Supply Ability: 1,000,000 Piece(s) per Month
Shipping: FOB
Payment Terms: T/T, Western Union
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • Brand Name: Sanda
  • Size: small size
  • Type: bimetal cutout
  • Material: bimetal
  • Color: white
  • Model Number: 17AM/17AM+PTC

Specifications

Snapin Thermal DevicesThermal Protector 17am for AC250V 9ADC24V 9AApplication range

Motor and Pump

HID Ballasts

Battery packs

Vacuum Cleaner

Heating appliance

Transformer

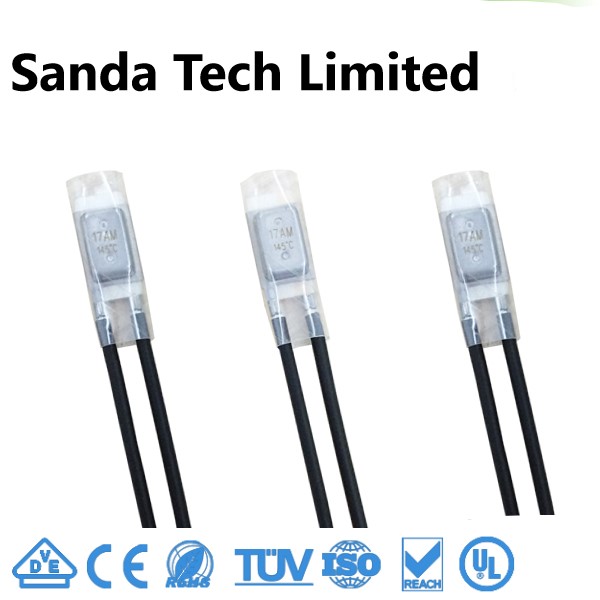

17AM:

17AM series products is a kind of Thermal protector with bimetallic plate as temperature sensing element. When The temperature rises/falls to a certain temperature, the contacts Automatically open/close and stop/resume the working state.

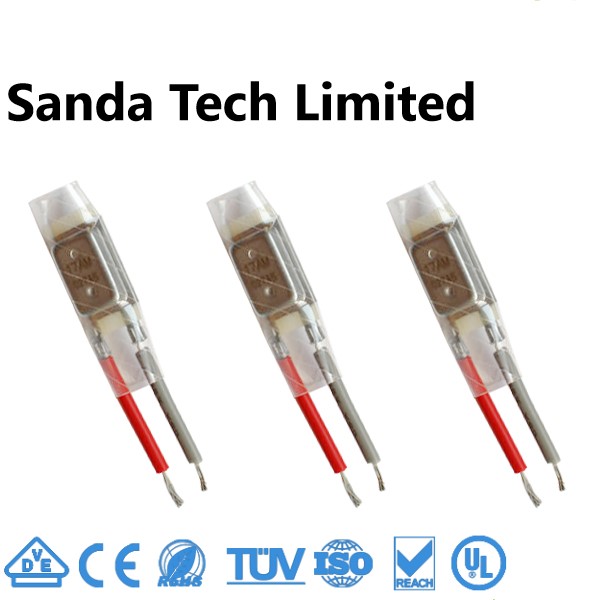

17AM + PTC:

17AM+PTC series thermal protector is a heating element, it is Arranged on the basis of 17AM thermal protector, which has power-off Protection, delay protection in function. The protection function is more Reliable and safer.

Working principle:

When the electrical work is abnormal, causing the surrounding Temperature is too high or current overload, double metal piece will act Quickly, so that the two contact is broken, cut off the circuit. When the Temperature drops to the reset temperature, the product is reset and the Circuit is switched on.

When the product is assembled with PTC, the voltage applied to the PTC element, and the PTC generates enough heat to keep the protector in a Skip state. Only when the power is cut off, the product can be reset, (with Manual reset function).

Selection parameter:

Range of Action temperature: 50C180C
Temperature tolerances: 2,3,5,8
Locked rotor current: 4
60A
Jump time:2S12S (Can Be customized according to customer requirements).

Protector Dimension:

 Model

Size

Voltage/Current

Life Cycly & Lead Wire

17AM(A)

23mm10.5mm4.8mm

16VDC 20A/115VDC 22A

115VAC 22A/250VDC 9A

125VAC 16A/AC230V 10A

10000 cycles,3321AWG18# Length is 70mm or According to customer's require.

17AM(B)

25mm10.5mm4.8mm
