>Products Catalog > 5A/10A TB05 Series > TB05 Thermal Coutoff/Cutout Temperature Controller for Water Pump

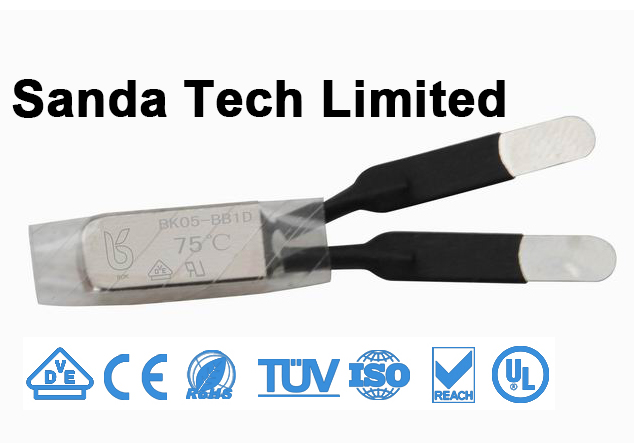

TB05 Thermal Coutoff/Cutout Temperature Controller for Water Pump
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Shipping: | FOB |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1000pcs/bag, 8 bags/carton |
Quick Details
- Brand Name: Sanda
- Certification: TUV,UL,VDE
- Type: cutoff
- Voltage(V): AC250V/DC24V
- Output Power: 5A/10A
- Motor: temperature controller
- water pump: thermal cutoff
Specifications
Application:
HID Ballasts
Battery Packs
AC Brushless motor and pump
DC Motor
Heating Appliance
Fractional Power motors
Key Benefits
Club-shape Contact, jointing better with spot welding
Repeatble Temperature performance over life
Gasketed Case suitable for most impregnation process
Substitute SENSATA 7AM 17AM, SEKI ST22
TB05Thermal protector has small size/ Quick action/Long Life and so on,Widely used in Battery pack, Lithium protection board, Water pump motor, electric appliances, Fluorescent ballast, transfoRmer, autoMotor,IC and general electrical equipment, double protection of overheating and over-current. Operating temperature is30-155.
Working Principle
TB05 series small Thermal protector is a bimetallic strip that acts asA heat sensitive response element. When the temperature or current is Increased when the heat transfer to the two metal sheets, and reaches a Predetermined temperature value, it moves quickly, the contact will be Disconnected, the circuit is cut off. When the temperature drops to a Predetermined reset the set value, the bimetal quickly restored, the contact is Closed, and the circuit will be connected again.
Selection parameter:
Range of action temperature: 30C150C
Temperature tolerances:3,5
Protector Dimension:
Model |
Case |
Size |
V & A |
Life & Lead Wire |

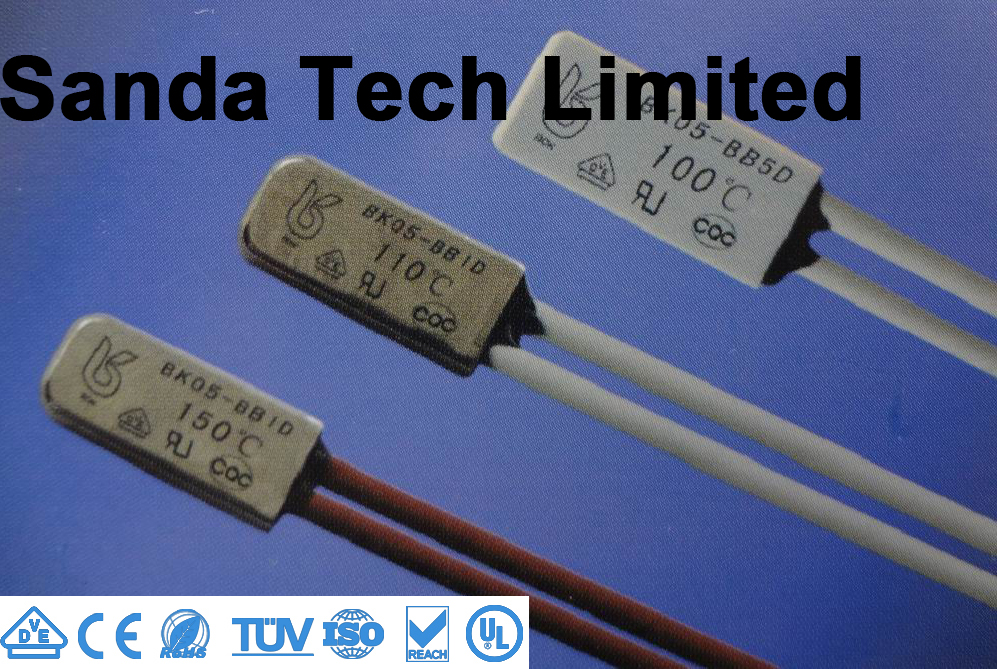

TB05-BB5D |
Plastic |
15mm7.0mm3.7mm |
AC250V 5A DC24V 10A |
10,000Cycles |

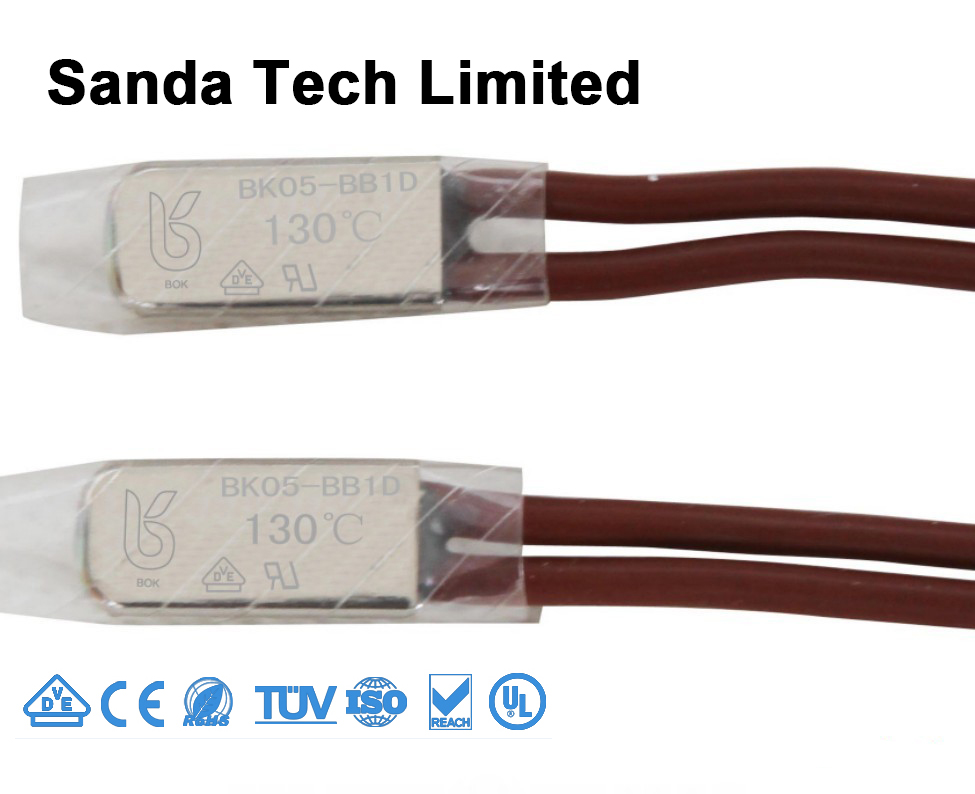

TB05-BB1D |
Iron |
15mm6.5mm3.2mm |
10,000Cycles | |
TB05-A |
Plastic |
18mm8.0mm4.0mm |
6,000Cycles | |
TB05-B |
Iron |
20mm7.5mm3.5mm |
6,000Cycles | |
TB05-C |
Plastic |
15mm6.5mm3.5mm |
10,000Cycles | |
TB05-D |
Iron |
15mm6.0mm3.0mm |
10,000Cycles |
