2A 5A 10A 12V 24V 120V 220V 250V TB02 TB05 Series Temperature Cutoff Switch 120 Degree Thermal Protector
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Shipping: | FOB |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | MASTER CARTON |
Quick Details
- Max. Voltage: 250v
- Max. Current: 24A
- Brand Name: SANDA
- Operating Temperature: 120
- Color: white
- current: 24A
Specifications
Application:
HID
Ballasts
Battery
Packs
AC
Brushless motor and pump
DC
Motor
Heating
Appliance
Fractional
Power motors
Key Benefits
Club-shape Contact, jointing better with spot welding
Repeatble Temperature performance over life
Gasketed Case suitable for most impregnation process
Substitute SENSATA 7AM 17AM, SEKI ST22
TB05Thermal protector has small size/ Quick action/Long Life and so on,Widely used in Battery pack, Lithium protection board, Water pump motor, electric appliances, Fluorescent ballast, transfoRmer, autoMotor,IC and general electrical equipment, double protection of overheating and over-current. Operating temperature is30-155.
Working Principle
TB05 series small Thermal protector is a bimetallic strip that acts asA heat sensitive response element. When the temperature or current is Increased when the heat transfer to the two metal sheets, and reaches a Predetermined temperature value, it moves quickly, the contact will be Disconnected, the circuit is cut off. When the temperature drops to a Predetermined reset the set value, the bimetal quickly restored, the contact is Closed, and the circuit will be connected again.
Selection parameter:
Range of action temperature: 30C150C
Temperature tolerances:3,5
Protector Dimension:
Model |
Case |
Size |
V & A |
Life & Lead Wire |

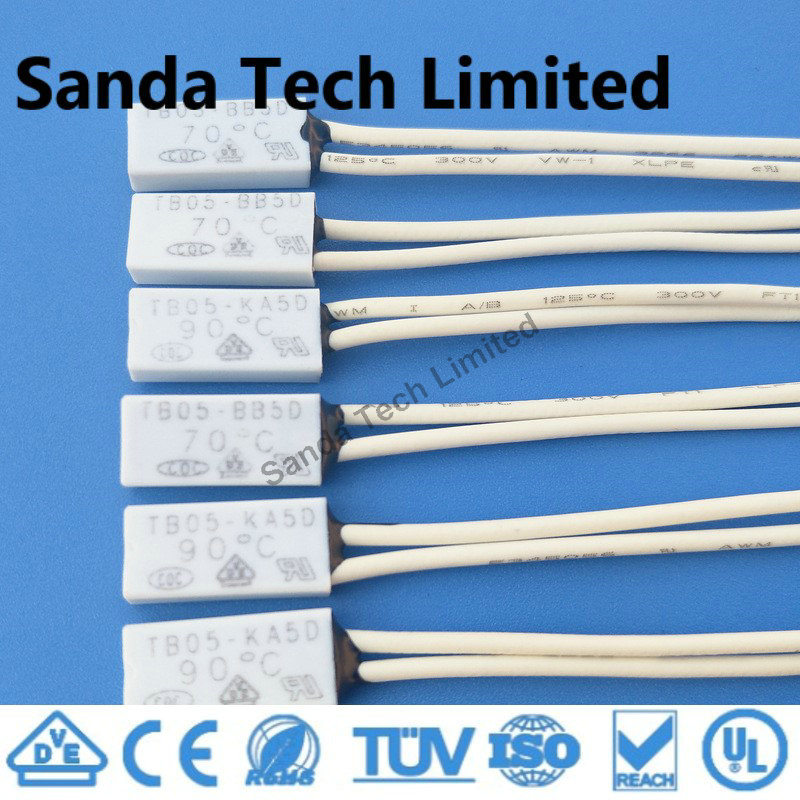

TB05-BB5D |
Plastic |
15mm7.0mm3.7mm |
AC250V 5A DC24V 10A |
10,000Cycles |
TB05-BB1D |
Iron |
15mm6.5mm3.2mm |
10,000Cycles | |
TB05-A |
Plastic |
18mm8.0mm4.0mm |
6,000Cycles | |
TB05-B |
Iron |
20mm7.5mm3.5mm |
6,000Cycles | |
TB05-C |
Plastic |
15mm6.5mm3.5mm |
10,000Cycles | |
TB05-D |
Iron |
15mm6.0mm3.0mm |
10,000Cycles |
